Senko SGT and SGT-P Docking Station

Bump test and calibration stations for the Senko SGT and SGT-P single gas monitors. The station runs the test, records the result against the instrument, and keeps the log, so the record of every bump test exists without anyone writing it down.

Two models

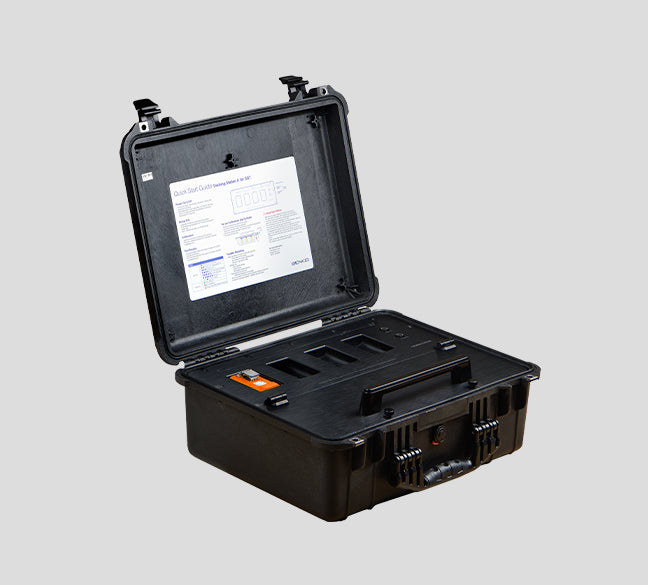

• SGT Docking Station II. Calibration and bump test with results saved to USB memory (8 GB standard). Firmware updates for the station and the monitors. 47 x 41 x 22 cm (18.50 x 16.14 x 8.66 in), 8.2 kg without the gas cylinder. Works with SGT and SGT-P O2, CO and H2S. Takes 58 L cylinders.

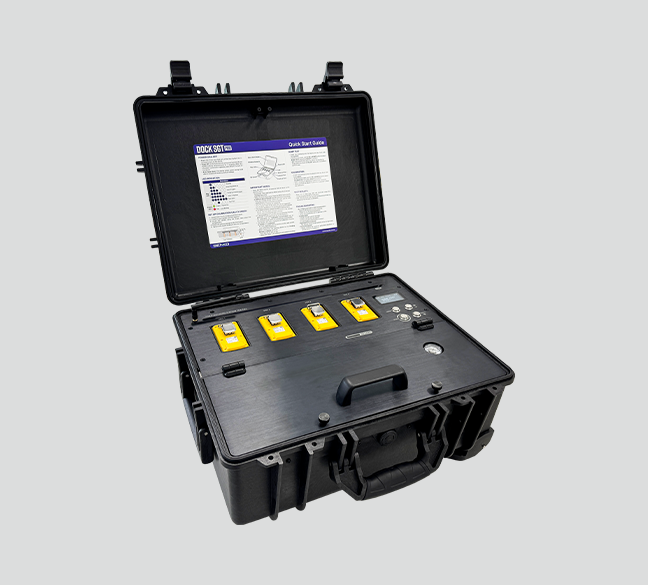

• Dock SGT Pro, WiFi. Calibrates and bump tests up to four SP-SGT and SP-SGTP monitors at the same time, recognizes each instrument automatically and sets the flow. Touchscreen, USB and SD card storage, Ethernet and WiFi, wheeled case. 530 x 435 x 240 mm, 12.4 kg without the gas cylinder. Works with O2, CO and H2S. Takes 58 L and 116 L cylinders with a demand regulator.

Both run on a rechargeable lithium ion battery rated for 1,000 bump tests, use a 12 V, 3 A charging adapter, operate from +5 to +40 C (+41 to +104 F), and carry a 2 year warranty. Specifications are from SENKO's datasheets for each station.

Ordering

Select the model from the list. The SKU shown is the Senko part number. Calibration gas and the regulator are ordered separately.
