Senko MGT Docking Station

Bump test and calibration stations for the Senko MGT multi gas monitor, in both catalytic (P) and infrared (N) versions. The station runs zero and span calibration or a bump test, then saves the result against the instrument.

Three models

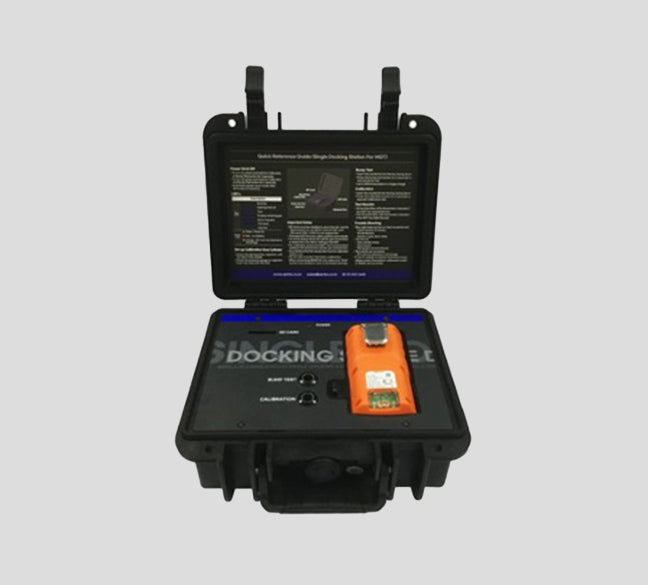

• MGT Single Docking Station. One monitor at a time, small enough to carry between sites. 247 x 210 x 107 mm, 2.85 kg without the gas cylinder. Results saved to SD card (16 GB standard).

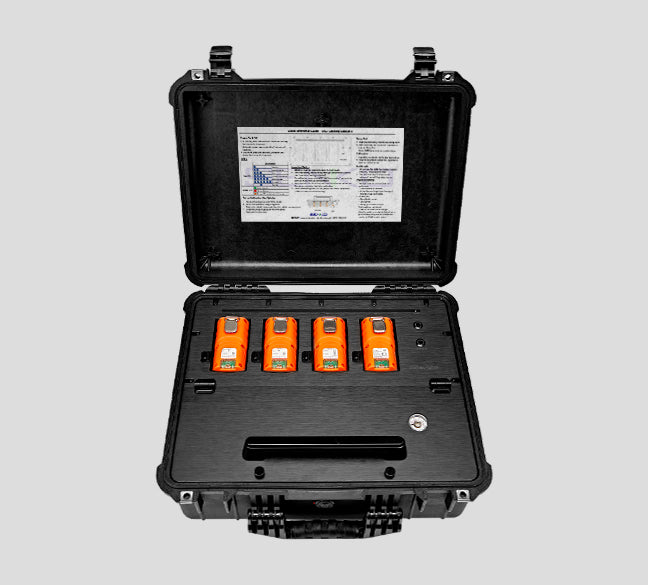

• MGT Docking Station II. Holds up to four monitors. Purges residual gas after each test. Results saved to USB memory (8 GB standard). 52.5 x 43.7 x 21.3 cm (20.66 x 17.20 x 8.40 in), 11 kg without the gas cylinder.

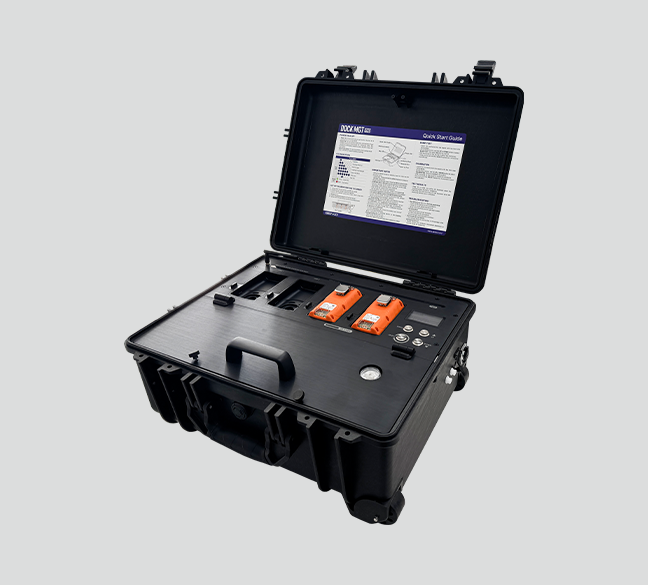

• Dock MGT Pro, WiFi. Calibrates and bump tests up to four monitors at the same time, recognizes each instrument and sets the flow automatically, and pushes firmware and configuration updates. Touchscreen, USB and SD card storage, Ethernet and WiFi, wheeled case. 530 x 435 x 240 mm, 12.4 kg without the gas cylinder.

All three test LEL, CO, H2S and O2, take 58 L and 116 L cylinders, run on a rechargeable lithium ion battery rated for 1,000 bump tests, use a 12 V, 3 A charging adapter, operate from +5 to +40 C (+41 to +104 F), and carry a 2 year warranty. Specifications are from SENKO's datasheets for each station.

Ordering

Select the model from the list. The SKU shown is the Senko part number. Calibration gas and the regulator are ordered separately.
