FODS Trackout Control Mat System (8-Mat Bundle)

The FODS Trackout Control Mat System is a durable, reusable construction entrance (BMP) that removes mud, rock, and sediment from vehicle tires before they reach public roadways. This bundle includes 8 mats to build a stabilized, rockless construction entrance/exit that can be relocated as your project progresses. A proven replacement for costly traditional rock entrances and CalTrans TC-1 pads.

Key Features

• Reusable BMP system — one-time material cost, no aggregate required
• Removes mud and sediment to help meet NPDES stormwater permit requirements
• 59% reduction in trackout compared to rock entrances

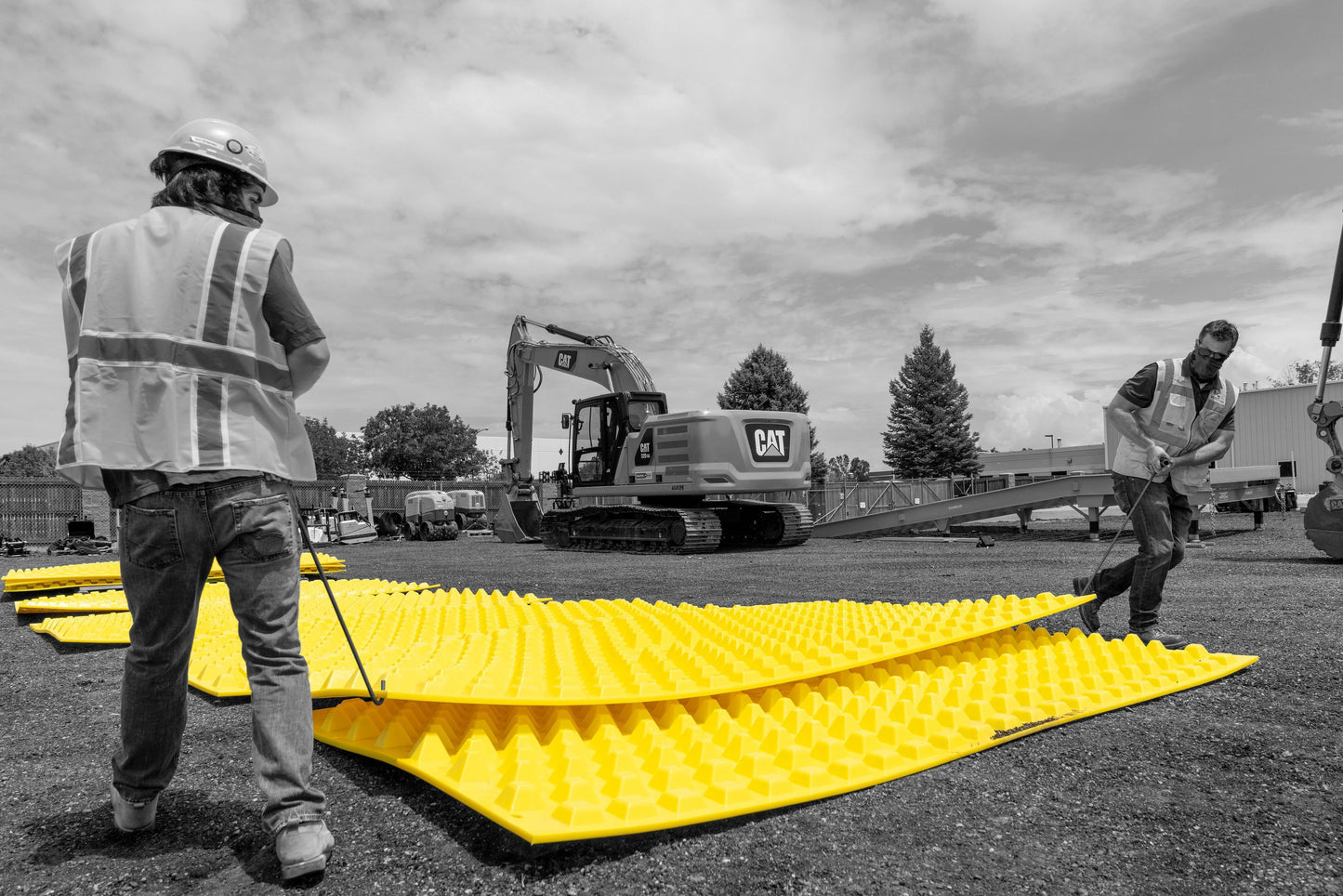

• Installs in as little as 30 minutes with hand tools — no heavy equipment
• DOT approved (CA TC-1 Caltrans, VDOT, CDOT); 100% Made in the USA; reusable and recyclable
• 3-year warranty with a field lifespan of 10+ years

Specifications

• Mat size: 12’(w) x 7’(l) x 3 3/4"(h)
• Pyramid height: 2 7/8"
• Mat weight: 420 lbs each
• Material: extremely durable HDPE with internal reinforcing spine
• Bundle: 8 mats

Documentation

• FODS Brochure (PDF)
• Technical Data Sheet (PDF)
• Installation Guide (PDF)
• Maintenance Guide (PDF)
