Wall Walker WW03844 Top Plate Bracket Scaffold, 8 ft — Pair

The same Wall Walker hanging scaffold as the WW03644, built with an 8 ft vertical beam instead of a 6 ft beam. The only difference between the two models is beam length. Order this one when you need to hang the plank lower down the wall than the 6 ft model allows. Sold in pairs.

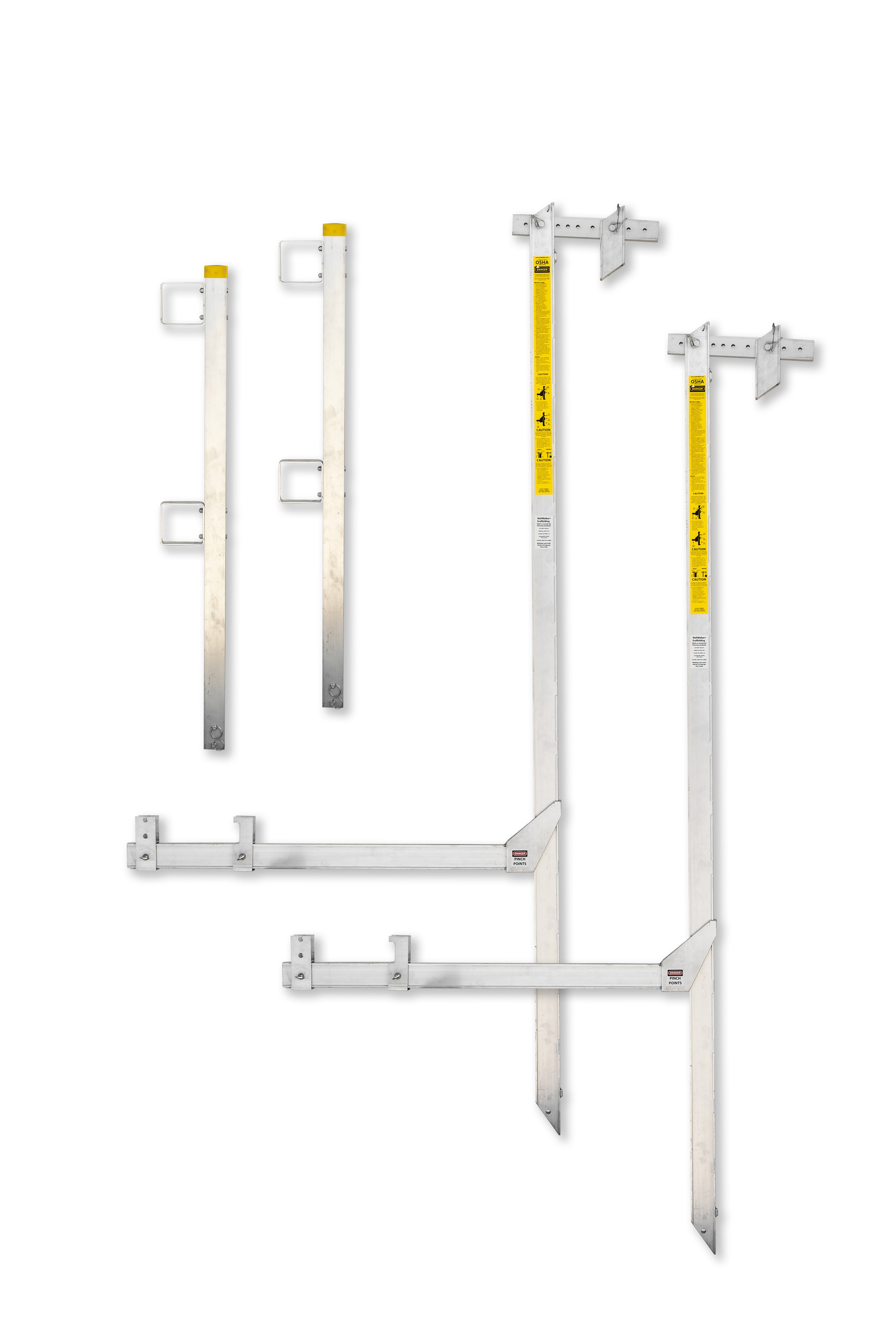

What is included in each pair

• Two bracket assemblies with 8 ft vertical beam and 44 in horizontal platform arm
• Plank brackets to secure the plank to the arm
• Adjustable slider tube and slider bracket for varying wall thickness
• Guardrail posts and guardrail brackets, which accept a 2x4 top rail and mid rail

Specifications

• structural grade extruded aluminum; zinc plated steel pins and small parts
• All welds certified under AWS D1.2
• Rated 250 lb per bracket at the end of the 44 inch arm; 500 lb per pair
• Engineered to a safety factor greater than four
• Height adjustable every 6 inches, with or without removing the plank
• Accepts up to a 20 ft plank per pair; bracket spacing must not exceed 8 ft once the platform is more than 10 ft above the level below
• Collapsible for storage

For the standard 6 ft beam, see the WW03644.

California requirements worth knowing before you order

Under 8 CCR 1645(e)(5) the platform must consist of not less than two 2 x 10 inch nominal size planks, extending not more than 18 inches and not less than 6 inches beyond each end support. A single 12 inch plank meets the federal minimum and does not meet California’s. Section 1645(e) also limits occupancy to two employees in any given 10 feet of bracket scaffold, with tools and materials limited to 75 pounds in addition to the employees. The wall the system hangs from must be adequately braced before anything is hung on it, roughly every 6 to 8 feet on 8 to 10 foot walls.

Scaffolding is the first compliance method listed in 8 CCR 1716.2(e)(1), which since 1 July 2025 applies at 6 feet on wood frame framing — including multi-family and light commercial, not just houses.

Questions on fit or quantity for your job? Call 949-954-6581.
