Wall Walker HA1565G 65 in Horizontal Arm
Wall Walker HA1565G 65 in Horizontal Arm
Couldn't load pickup availability
Now taking pre-orders
Reserve yours now. Current lead time is about 3 weeks from order, and pre-orders ship in the order they are received. The earlier you reserve, the earlier you are in the queue. We confirm your ship date at the time of order.
Working to a set date on a job? Call 949-954-6581 and we will tell you exactly where the next shipment stands.
Lead time as of 28 August 2026.
A 65 inch horizontal arm with double gusset that replaces the standard 44 inch arm on the same Wall Walker vertical beam, letting the worker stand on a plank further out from the wall.

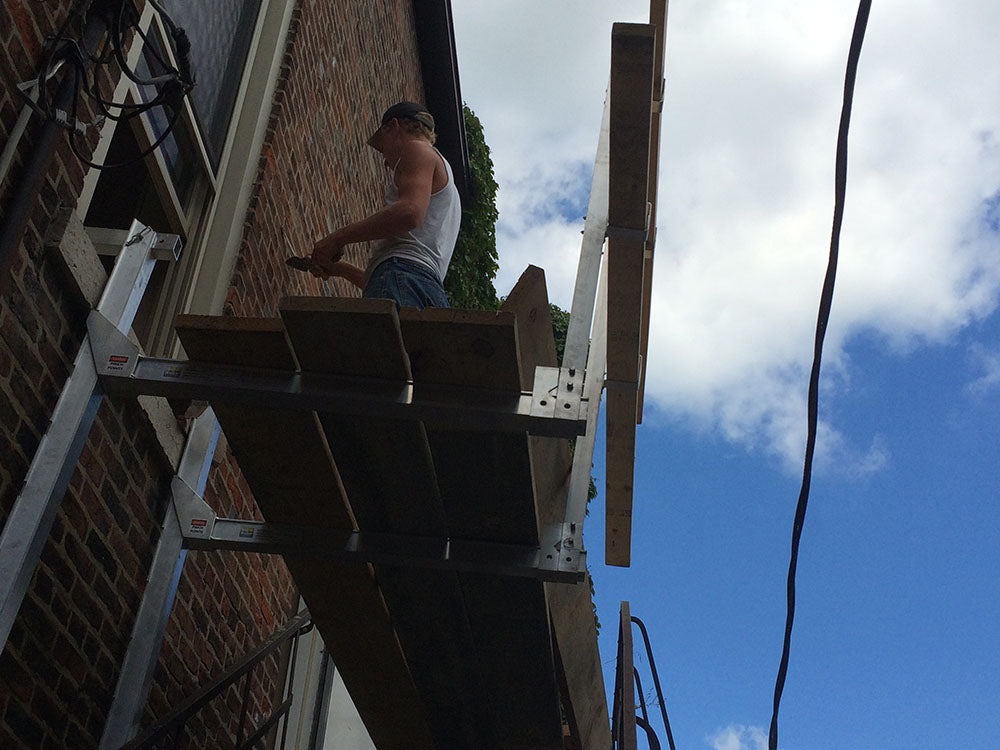

The use case the manufacturer names is overhangs: installing fascia board on a 3 to 4 foot overhang, where a 44 inch arm puts the platform under the overhang rather than out where the work is. Also useful for roof line and parapet work for the same reason.
This is a replacement arm, not an add-on. It takes the place of the 44 inch arm rather than extending it.
Remember that California limits occupancy to two employees in any given 10 feet of bracket scaffold, with tools and materials capped at 75 pounds in addition to the employees, under 8 CCR 1645(e). A longer arm does not raise that limit.
Load rating on the longer arm: the published 250 lb per bracket figure is stated at the end of the standard 44 inch arm, and the manufacturer's stamped engineering calculations do not restate it for this arm. Call us before specifying the 65 inch arm for a loaded platform and we will get the rating confirmed in writing for your application.

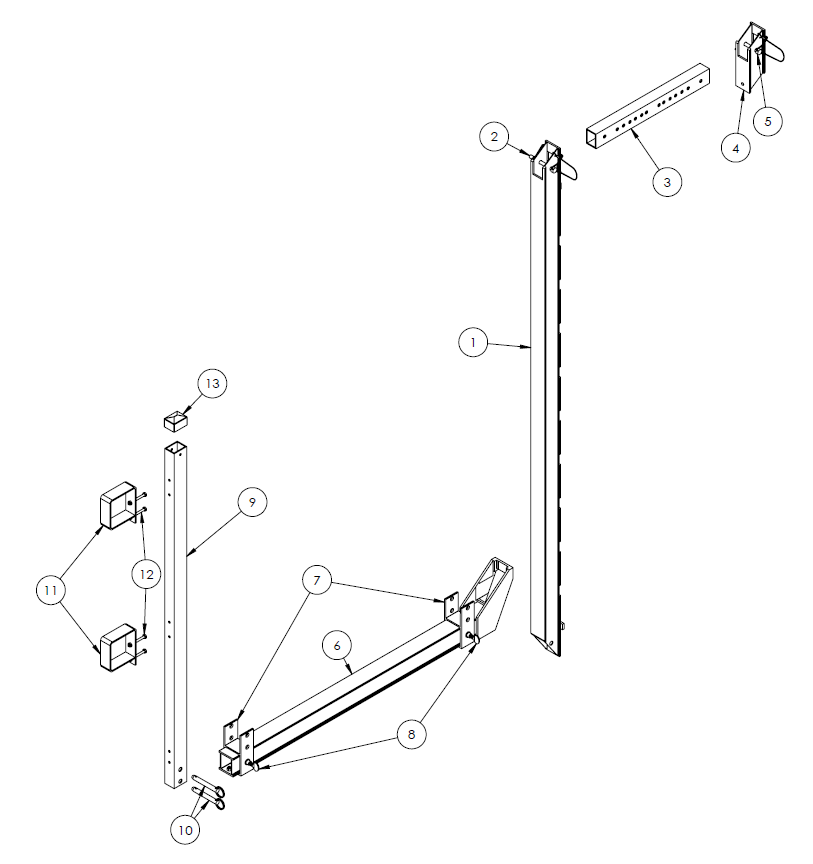

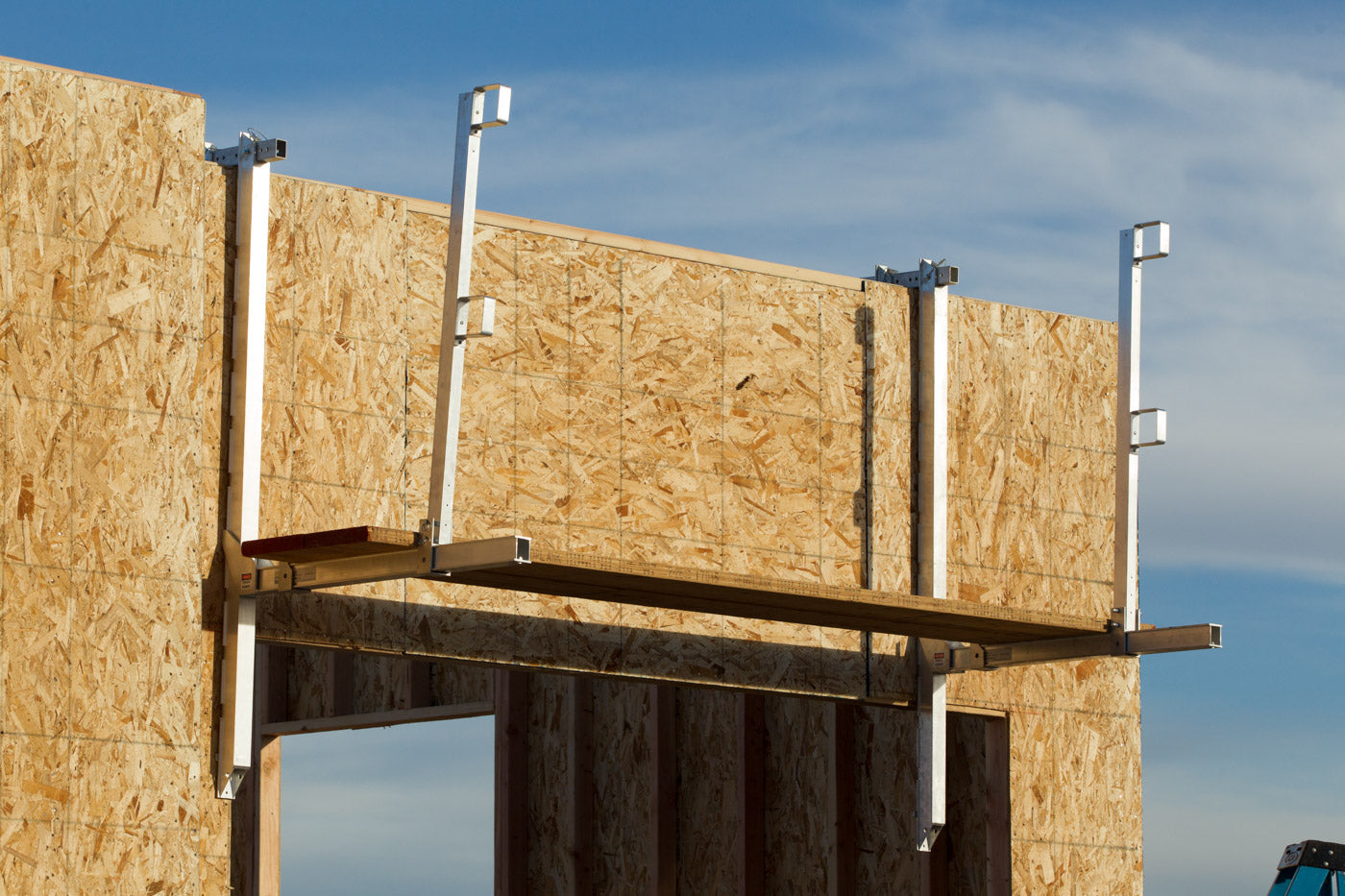

Part of the Wall Walker hanging scaffold system. See the full range in Framing Scaffolding Solutions.
Questions on fit or quantity for your job? Call 949-954-6581.
