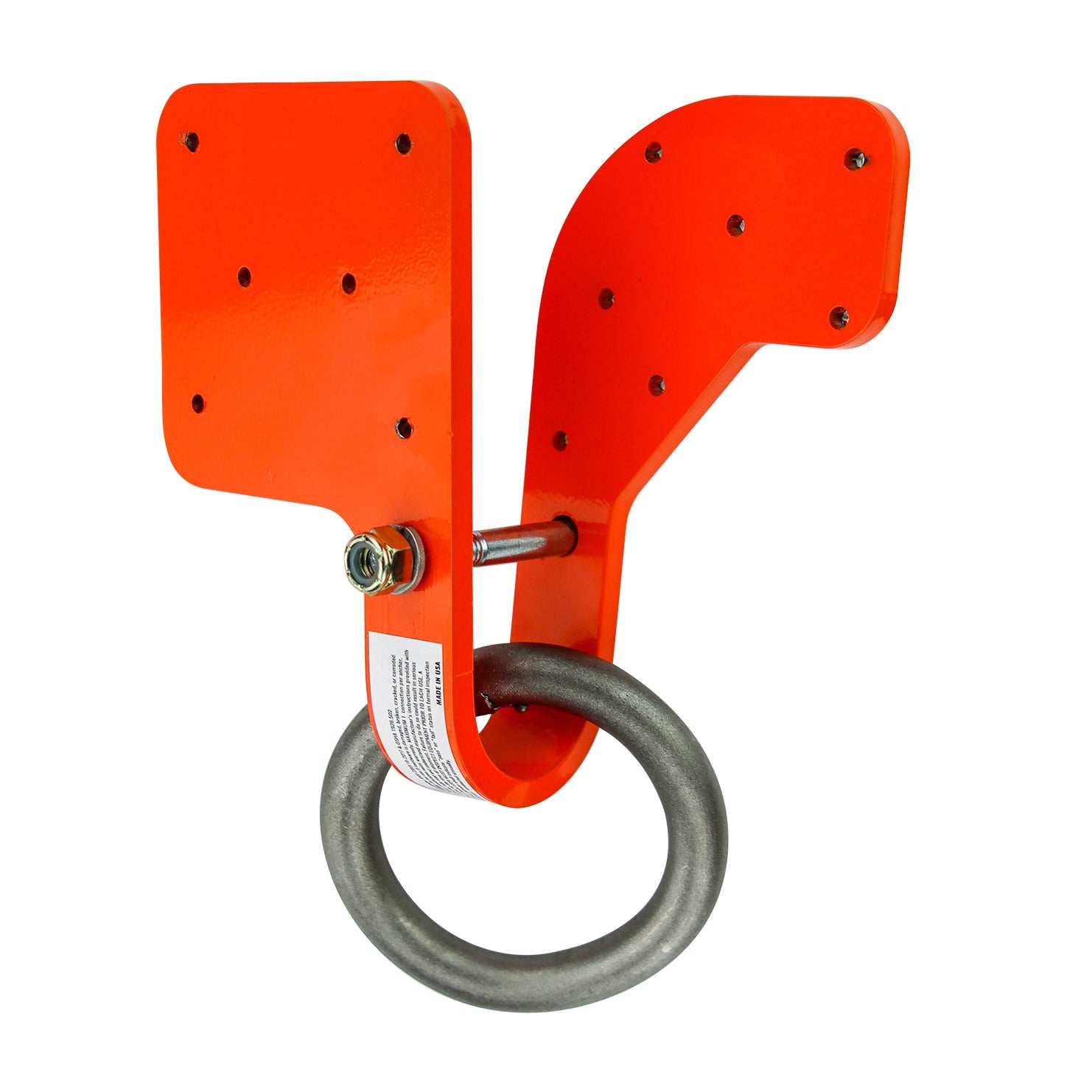

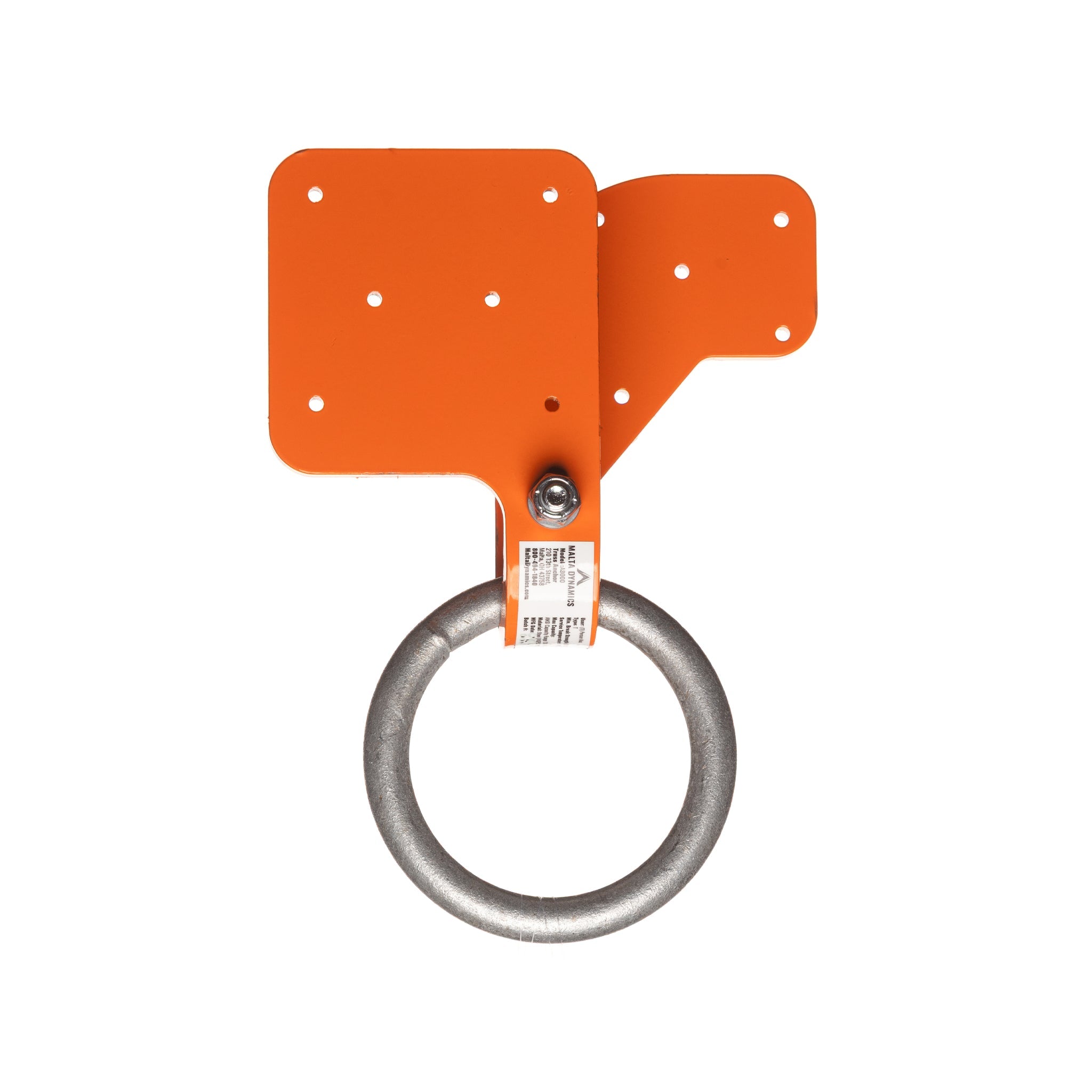

The Malta Dynamics Truss Anchor is a fall protection anchor for new construction and for work in the attic space of an existing structure. It fastens directly to an existing wood truss and gives a tie-off point where there is otherwise nothing to connect to, which is why electricians and solar installers reach for it most.
Manufacturer specifications
Model: A8000

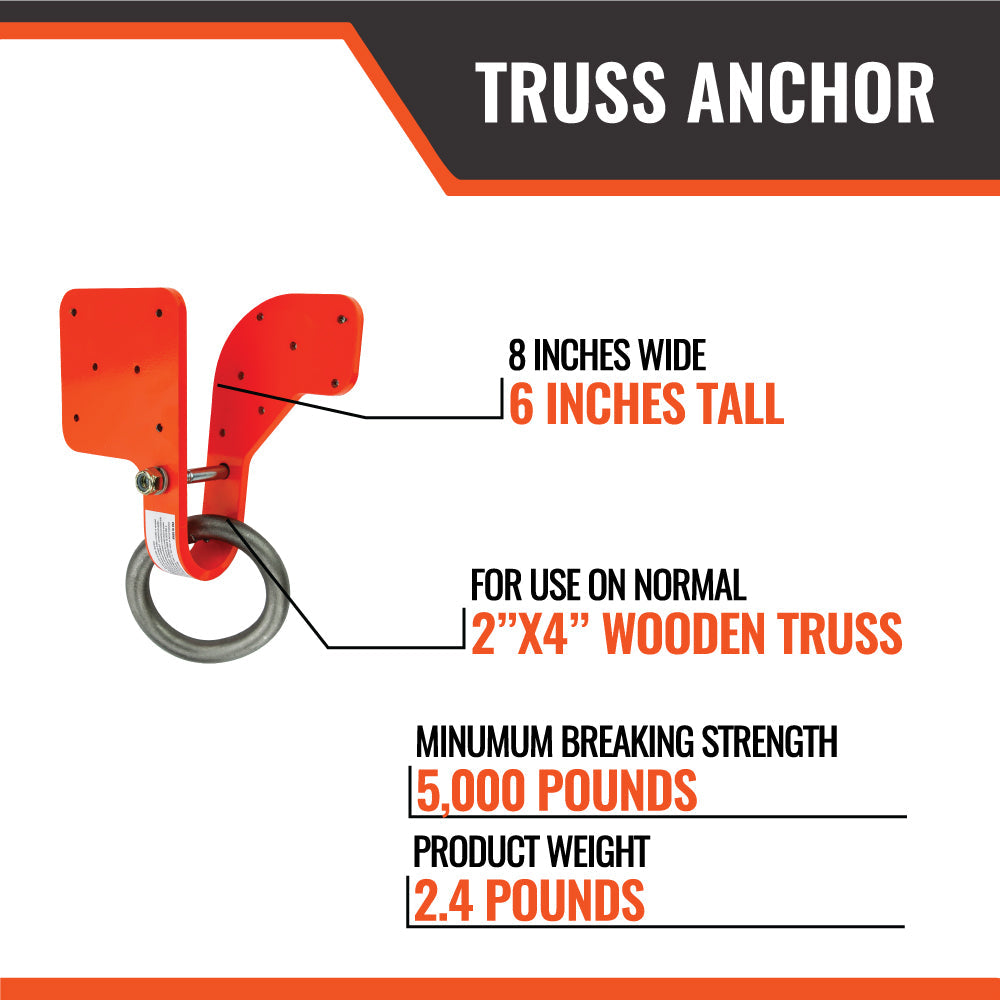

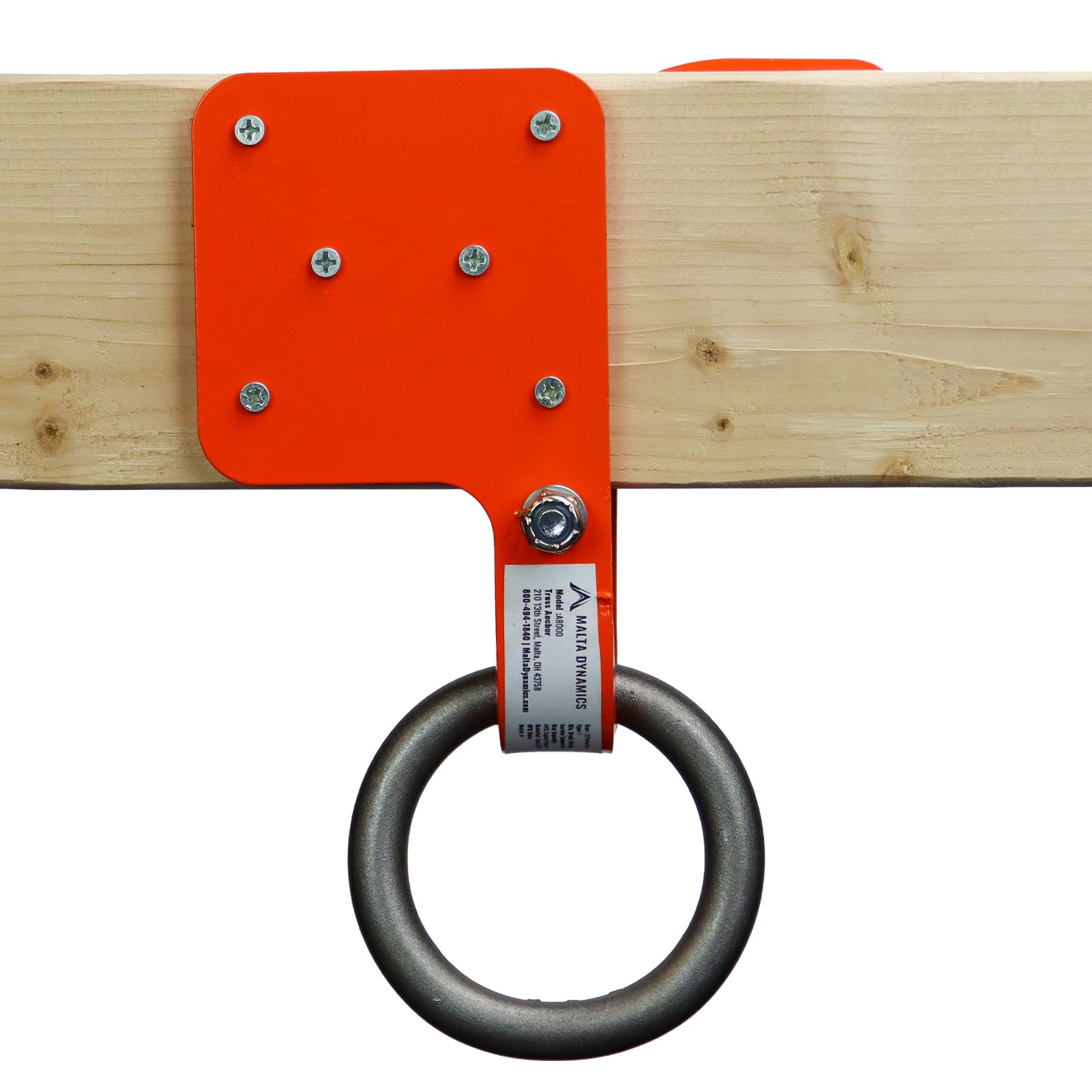

Attaches to: standard 2 in. x 4 in. wooden trusses

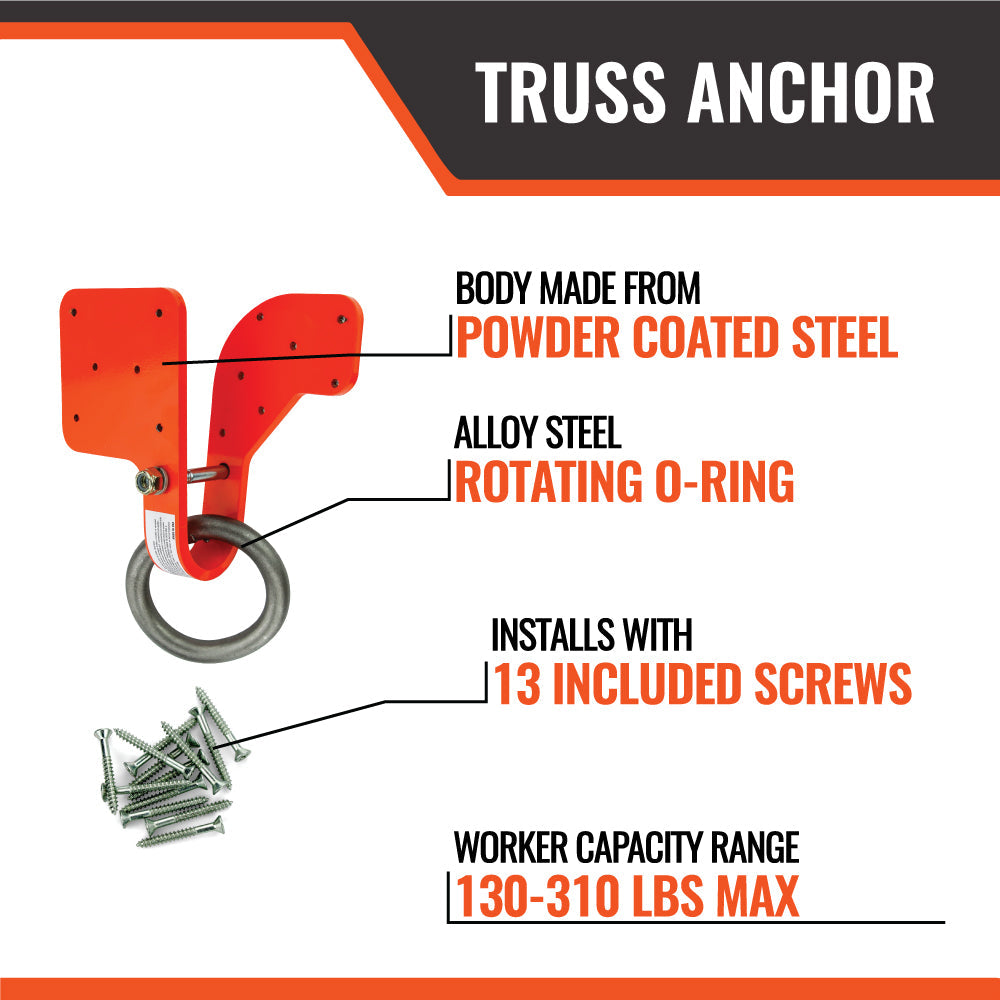

Included: 13 wood screws
Worker capacity: 130 to 310 lbs
Minimum breaking strength: 5,000 lbs
Weight: 2.4 lbs
Material: powder-coated steel with an alloy steel D-ring
D-ring: rotates through a full 360 degrees
Finish: orange, for visibility on site

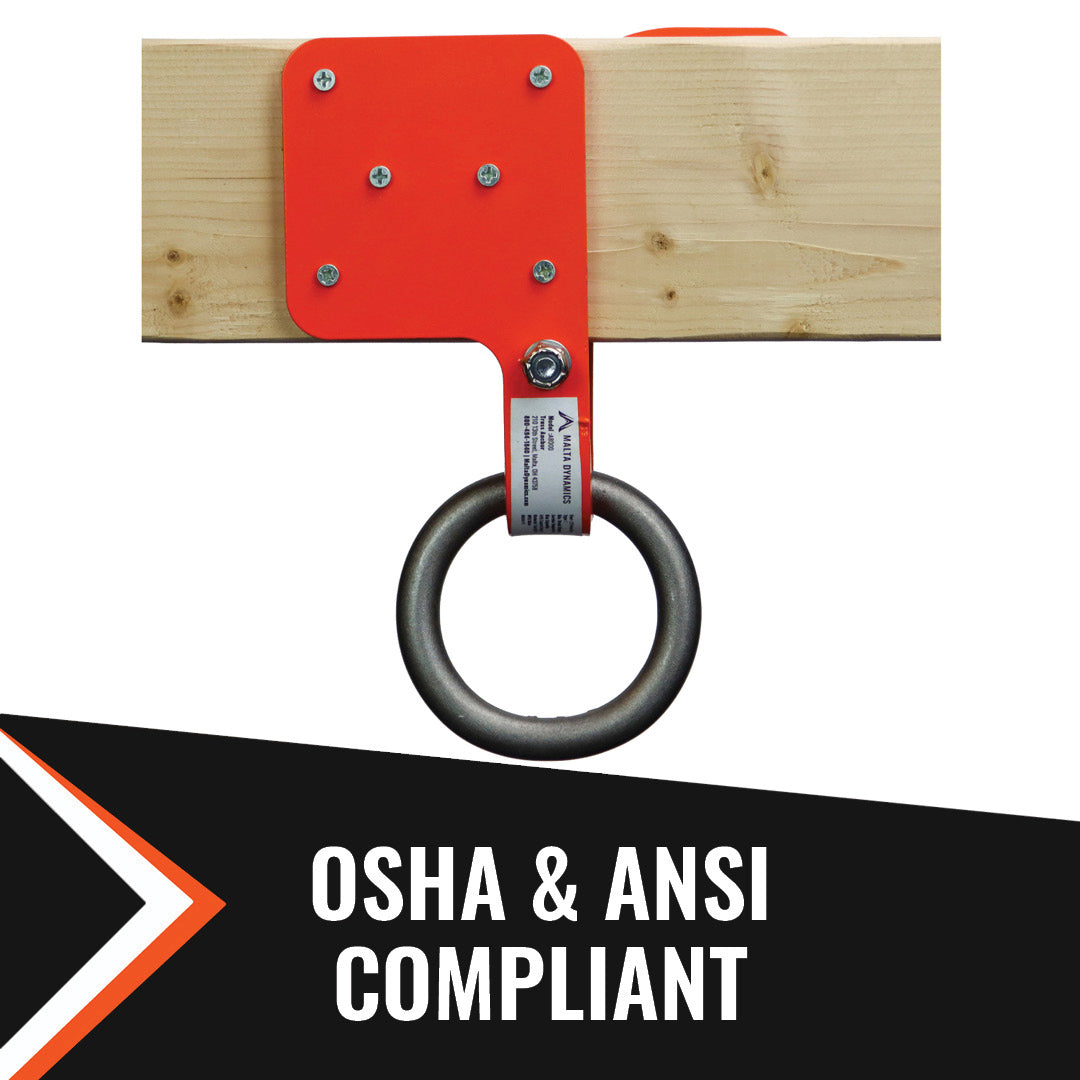

Conformance: Malta Dynamics lists this anchor to ANSI Z359.18-2017 and to OSHA 1910 and 1926 Subpart M
Figures above are the manufacturer's published specifications.
Which anchor is correct depends on what you are fixing to and the work being done. If you are not certain a truss anchor suits your application, call 949-954-6581 and we will work through it with you.
