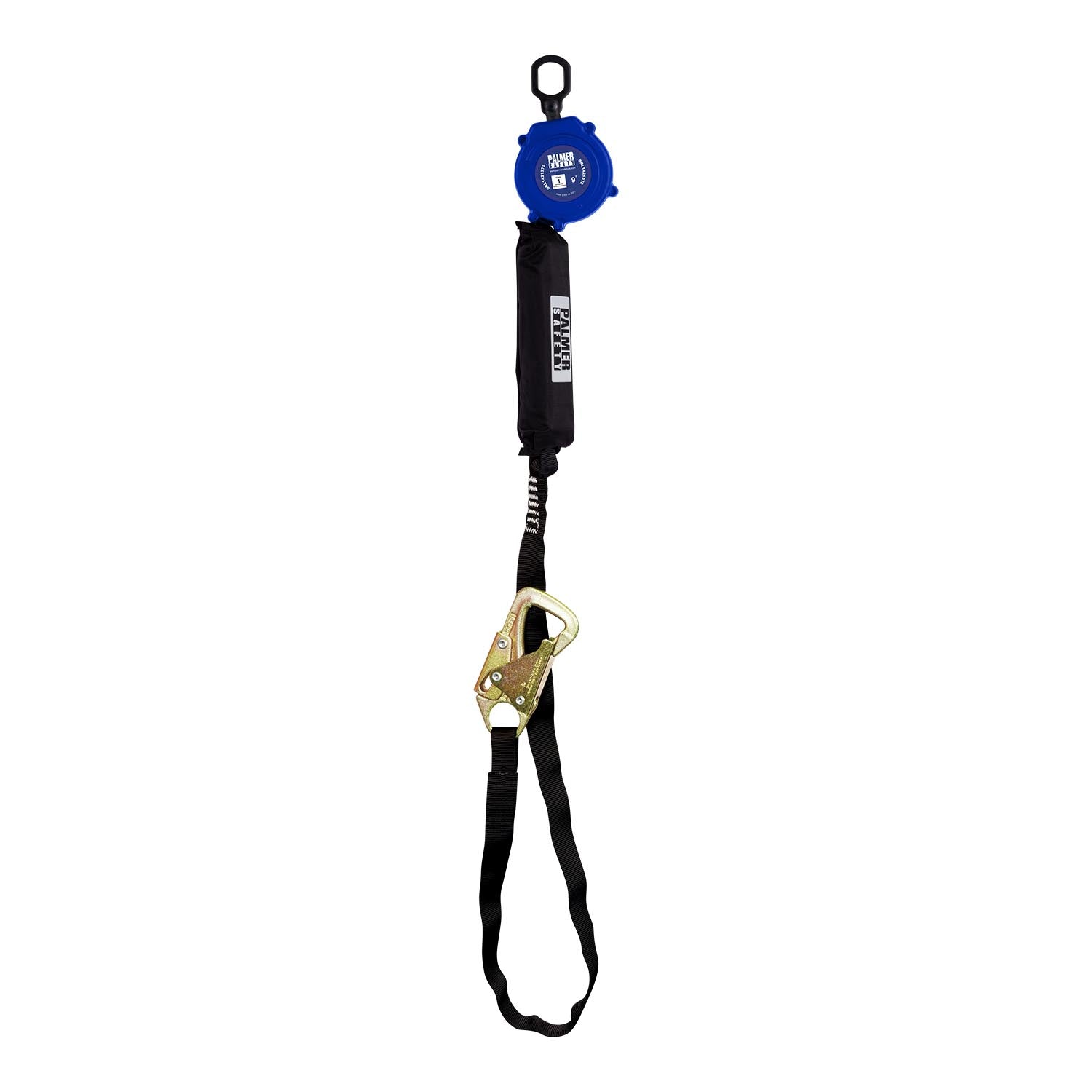

MicroBEAST™ Series 9’ SRL-P Lightweight Web with Tie Back Hook

MicroBEAST™ Series SRL-P 9’ Retractable web, lightweight plastic housing, integrated shock-absorber, tie back hook, 1/2” carabiner included. Blue housing. Min breaking strength 4500 lbs. Max weight capacity is 310 lbs. Meets or Exceeds ANSI Z359.14-2021 Class 1 SRL-P.

Key Features

PHYSICAL PARAMETERS:

• Lightest available SRL in its range/class
• Robust & durable thermoplastic casing
• UHMWPE Webbing with Integrated Energy Absorber
• Tie Back hook at attachment end

LENGTH:

9 ft. Maximum (6 ft. internal, 3 ft. external)

WEBBING:

• Material: UHMWPE Webbing 3/4” (20mm)
• Minimum Breaking Strength: 4500 lbs.

AVERAGE LOCKING SPEED:

4.5 ft./sec.

AVERAGE ARRESTING FORCE:

1350 lbs.

MAX. ARRESTING DISTANCE:

42 in.

MAX. ARRESTING FORCE:

1800 lbs.

MAX. CAPACITY:

130 – 310 lbs.

WEIGHT:

4.04 lbs.

CONFORMS TO:

Meets or Exceeds ANSI Z359.14-2021 Class 1
