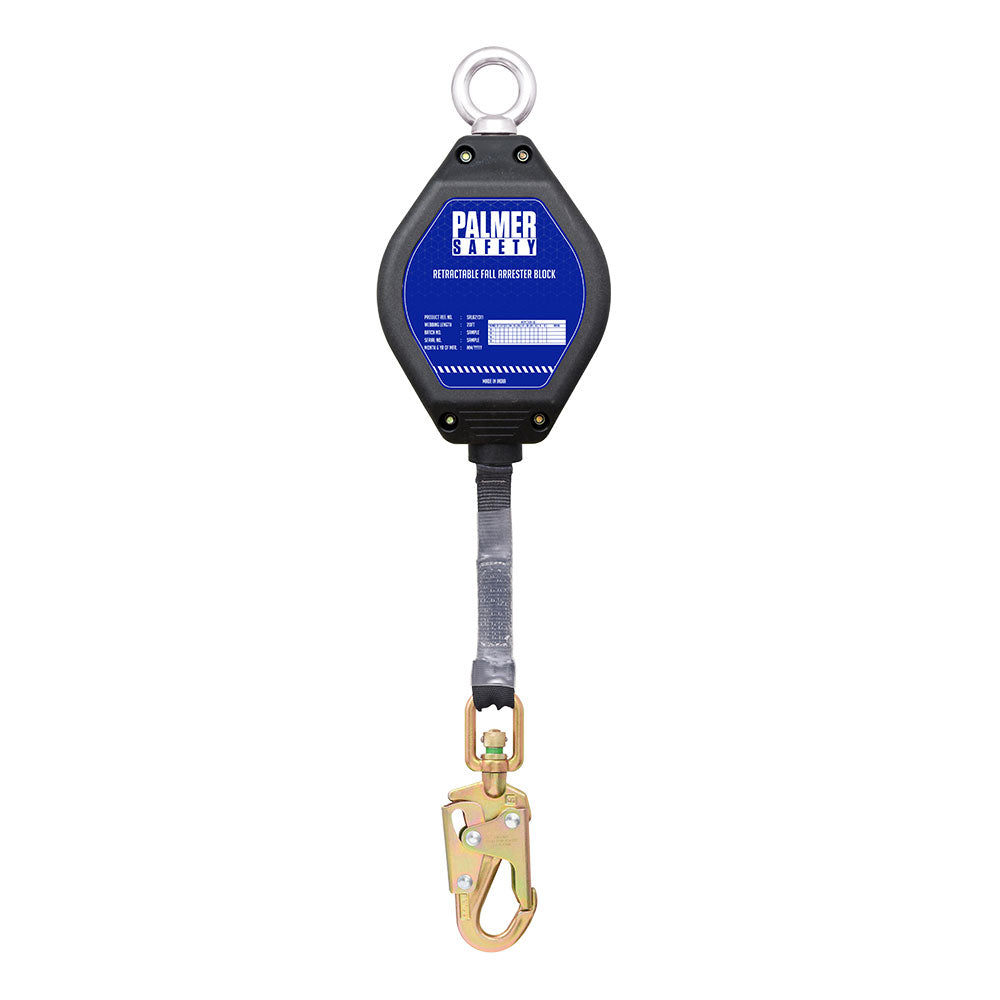

SRD 20’ Web with Small Hook

$296.99 USD

Sale Sold out

Quantity

20’ retractable web, swivel top plastic housing, built in shock absorber, ¾” load indicator hook, ½” carabiner included. Blue housing. Min breaking strength 4500 lbs. Meets or exceeds ANSI Z359.14-2012. Class B.

Key Features

PHYSICAL PARAMETERS:

Composite housing.
Robust & durable plastic casing.
Has swivel anchorage eye at anchorage end.
Swivel steel snap hook with load indicator at attachment end (PN 144 as per ANSI Z359.12-2009; gate strength 3600 lbs.).
Galvanized steel wire rope (option of having S.S. wire rope available).

LENGTH:

20′

WEBBING:

Material: Polyester
Width: 1”
Minimum Breaking Strength: 4500 lbs.

VITAL TEST COMPLIANCE:

Static Strength: 3000 lbs. for 1 minute.
Dynamic Strength: 300 lbs. mass subjected to a 4’ free fall. SRD lock and remain lock until released.
Dynamic Performance: 282 lbs. mass subjected to a zero free fall with extension of 36” lifeline. Braking force less than 1800 lbs. Average braking force less than 900 lbs. and arrest distance less than 54”.
