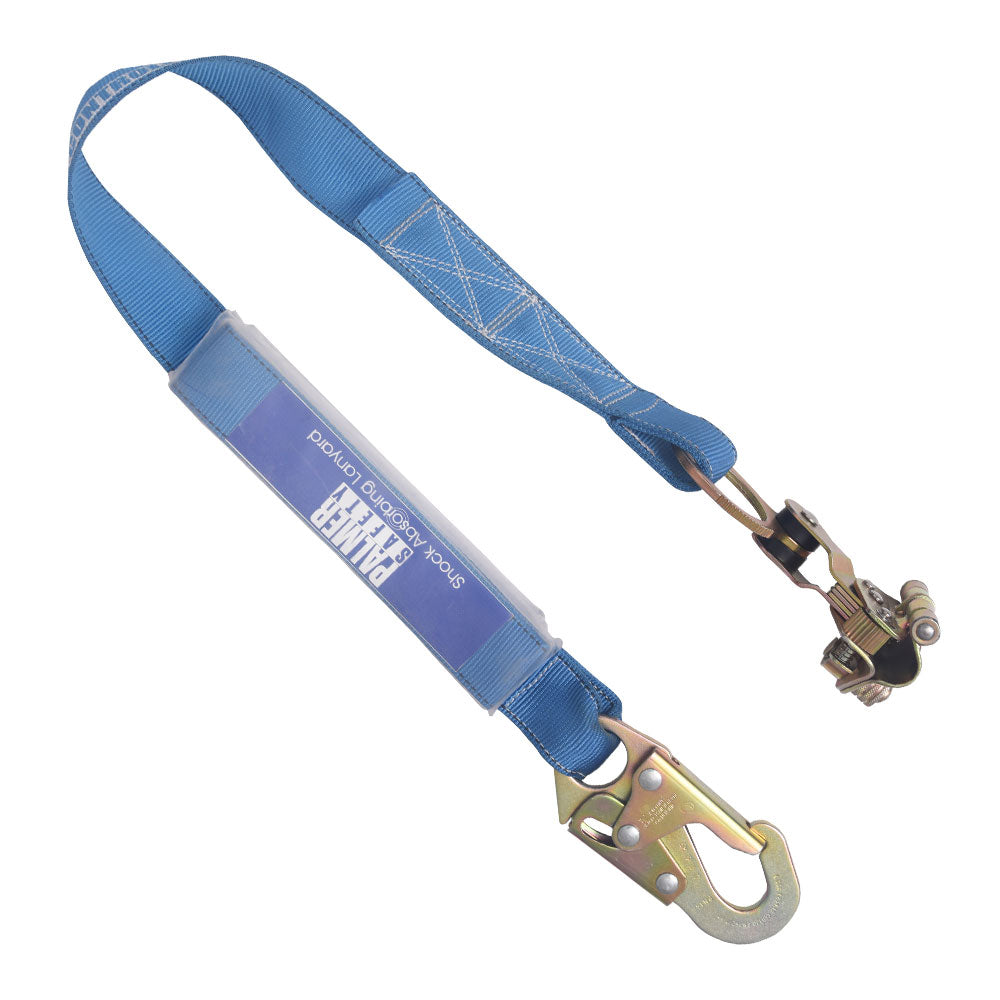

Rope Grab Attached Lanyard 3’

5/8” Large Bail Yellow Chromate Finish Rope Grab, attached 3 ft. shock absorbing web lanyard and 3/4” hook. Meets or exceeds ANSI Z359.1-2007.

Key Features

DESIGN:

• Rope grab with 3’ lanyard
• Rope grab equipped with double locking closing mechanism
• Connected with a Shock Absorber and has a Snap Hook (PN 146) at the end for attachment to the harness
• The rope grab is used over the twisted rope life line

WEBBING:

Material: Polyester

Width: 1.73 in. ± 0.03 in.

STITCHING THREAD:

Material: High-tenacity polyester

METAL COMPONENT:

Material: Alloy Steel
Finish: Silver or Golden Yellow Galvanized

VITAL TEST COMPLIANCE:

Static Strength: 5000 lbs. for 1 minutes
Dynamic Strength: Maximum breaking force does not exceed 8 kN in the line to a test mass of 220.46 lbs.

WEIGHT:

2.82 lbs. ± 0.02 lbs.
