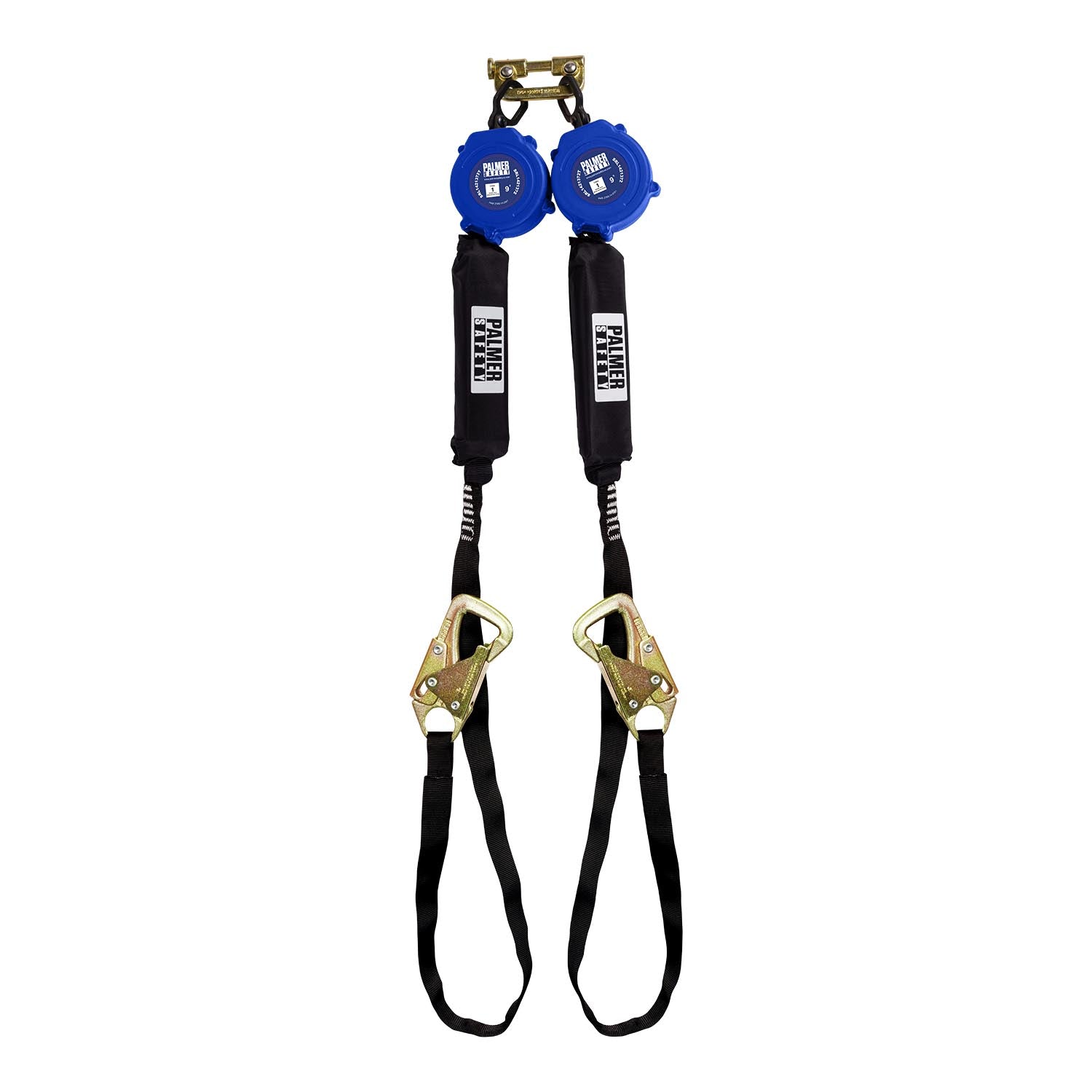

MicroBEAST™ Series 9’ Twin SRL-P Lightweight Web with Tie Back Hooks

Twin 9 ft. Retractable web, Tie back hook, 1/2″ carabiner. Blue housing. Max arresting distance 24″, Average arresting force 1,350 lbs. Rated 420 lbs. Meets or Exceeds ANSI Z359.14-2014, ANSI Z359.14-2014 Class A SRL.

Key Features

PHYSICAL PARAMETERS:

• Lightest available SRL in its range/class
• Robust & durable thermoplastic casing
• UHMWPE Webbing with Integrated Energy Absorber
• Tie Back hooks at attachment end

LENGTH:

9 ft. Maximum (6 ft. internal, 3 ft. external)

WEBBING:

Material: UHMWPE Webbing 3/4” (20mm); Minimum Breaking Strength: 4500 lbs.

AVERAGE LOCKING SPEED:

4.5 ft./sec.

AVERAGE ARRESTING FORCE:

1350 lbs.

MAX. ARRESTING DISTANCE:

42 in.

MAX. ARRESTING FORCE:

1800 lbs.

MAX. CAPACITY:

130 – 310 lbs.

WEIGHT:

8.46 lbs.

CONFORMS TO:

Meets or Exceeds ANSI Z359.14-2021 Class 1
