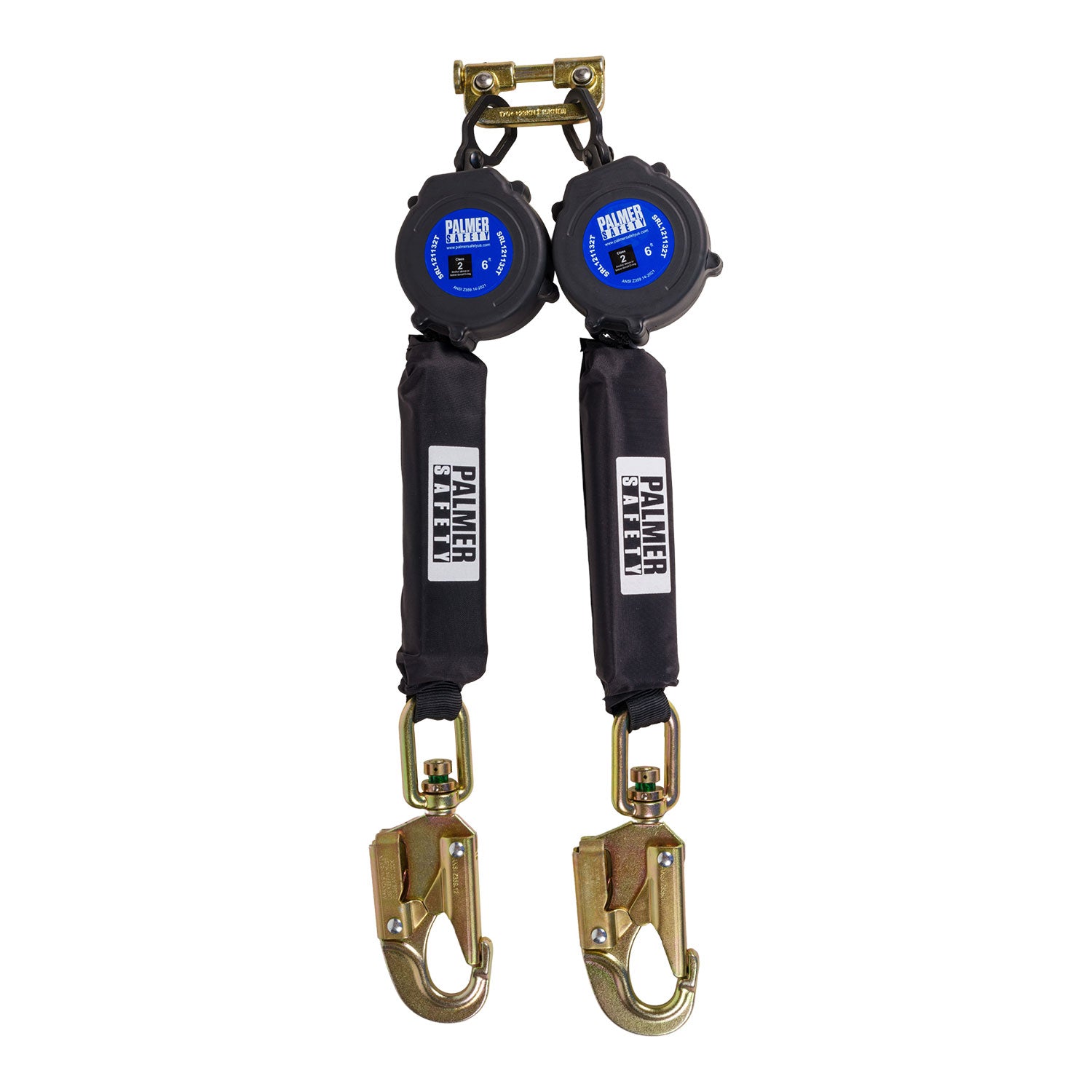

MicroBEAST EDGE™ Series 6’ Twin SRL-P Lightweight Web with Small Hook

MicroBEAST EDGE™ Series SRL-P 6’ twin retractable web, lightweight plastic housing, external shock-absorber, 3/4” double locking snap hook, 1/2” carabiner included. Min breaking strength 5000 lbs. Max weight capacity is 310 lbs. Meets or Exceeds ANSI Z359.14-2021 Class 2 SRL-P.

Key Features

PHYSICAL PARAMETERS:

• Lightest available SRL in its range/class.
• Robust & durable plastic casting.
• Technora Webbing with Energy absorber.
• Swivel steel double locking snap hook at attachment end

LENGTH:

6 ft. (Maximum)

WEBBING:

Material: Technora webbing 13/16”
Minimum Breaking Strength: 5000 lbs.

MAX WEIGHT CAPACITY:

310 lbs.

WEIGHT:

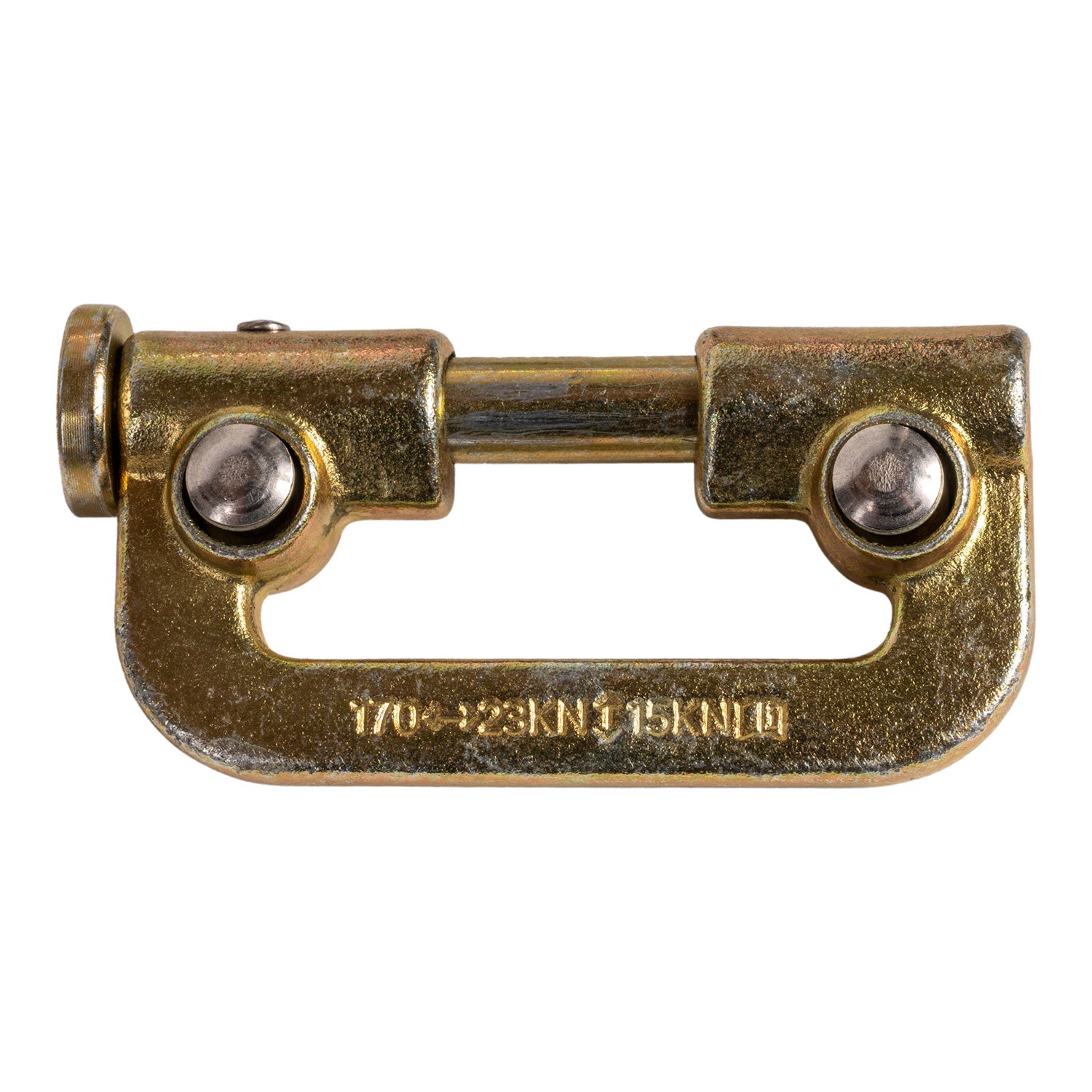

3 lbs./each SRL – 6.2 lbs. total with SRL170 carabiner

CONFORMS TO:

Meets or Exceeds ANSI Z359.14-2021 Class 2 SRL-P

Downloads

Current Model

Download Image

Download Image

Download Tech Sheet for Dual SRL Configuration (Black Housing)

Download Tech Sheet for Dual SRL Configuration (Blue Housing)

Download Manual

Download Declaration of Conformance

Download Install Guide

Previous Model(s)

Download Image

Download Tech Sheet for Dual SRL Configuration (Black Housing)

Download Manual

Download Declaration of Conformance
