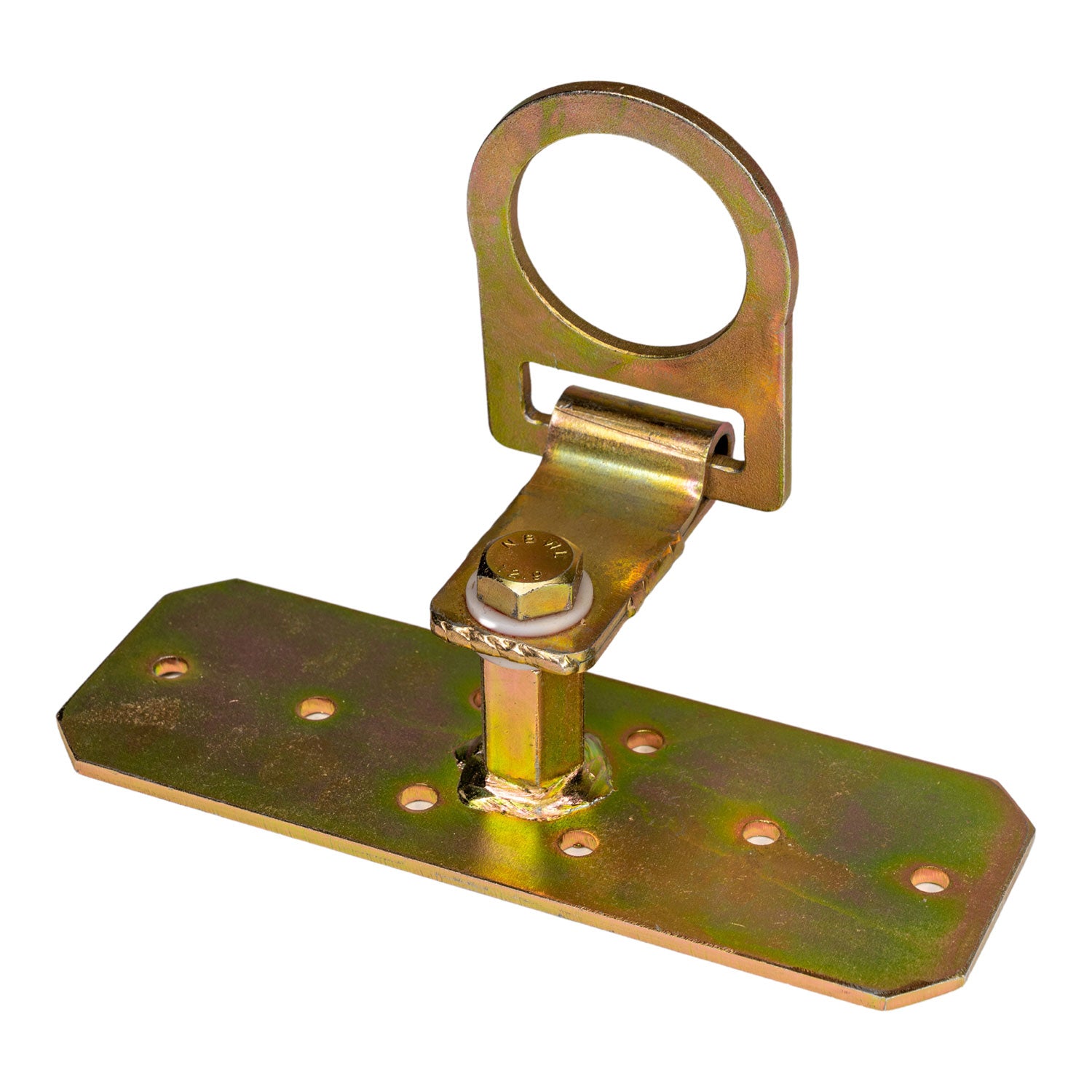

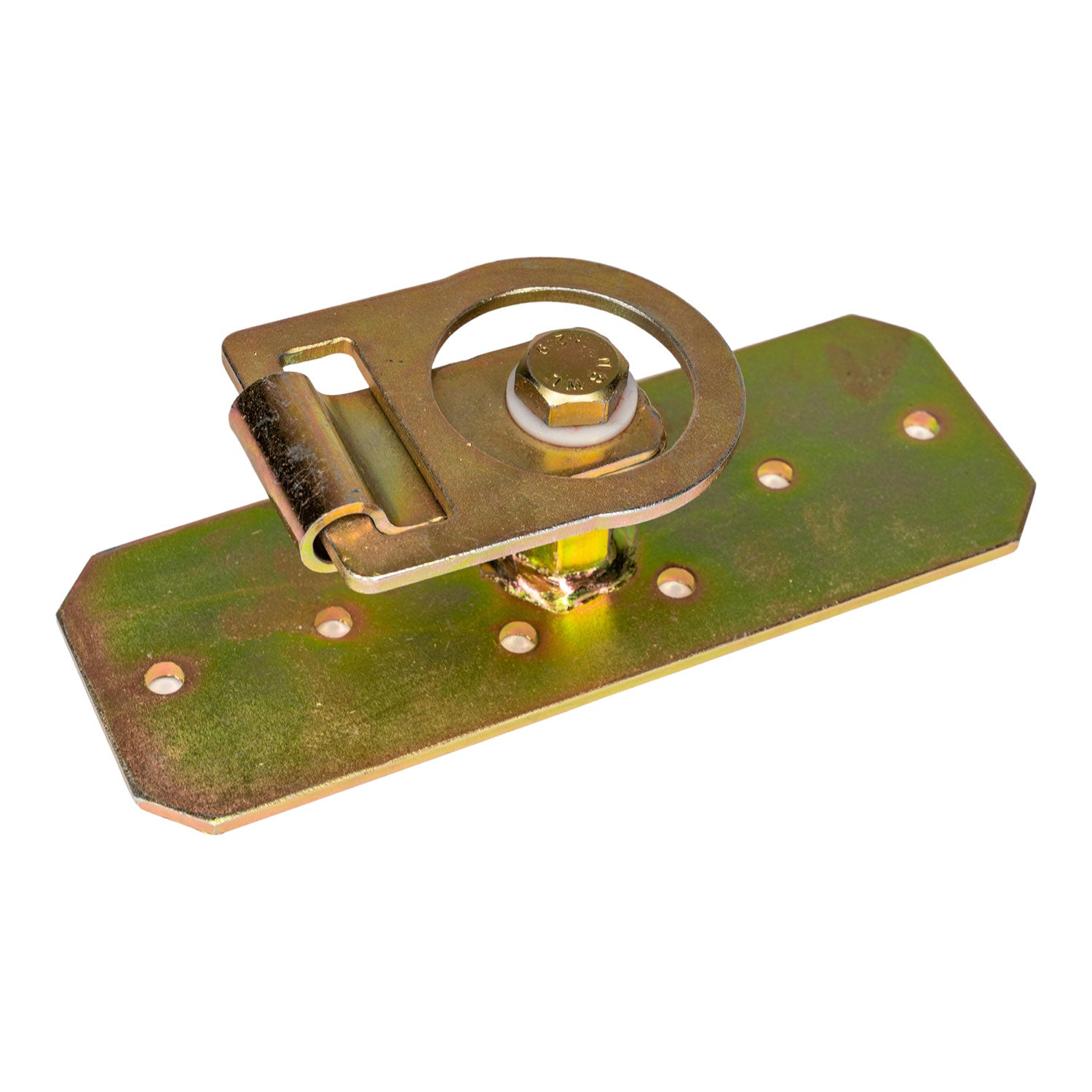

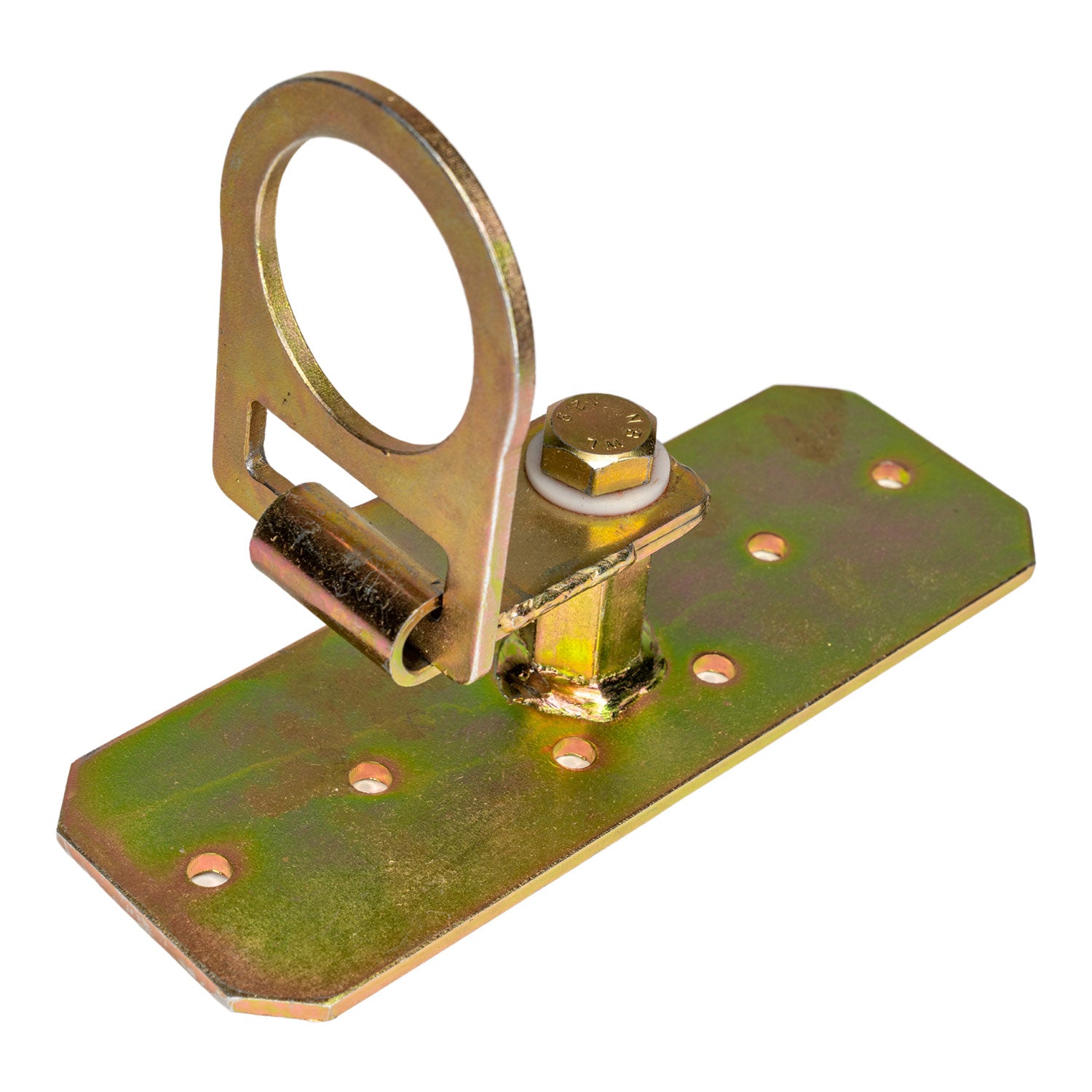

Metal Roof D-Ring Swivel Anchor

Palmer Safety’s ANCHORDRINGSW Metal Roof Swivel Anchor is a versatile fall protection solution for metal roofs. Its robust construction provides a secure anchor point for up to 5,000 lbs, while the swivel design allows for unrestricted movement and easy positioning. Ideal for both temporary and permanent applications, this anchor is a must-have for anyone working on metal roofs.

Key Features

INCLUDED COMPONENTS:

• Versatile Design: Fits R-panel and standing seam roofs, connecting directly to the structural below.
• 360° Swivel and 180° D-Ring Flip: Ensures the anchor is always positioned correctly for maximum safety.
• High Working Load: Supports up to 5,000 lbs for secure anchorage.
• Durable Construction: Designed for long-lasting performance on metal roofs 22 gauge or thicker.
• Easy Installation: Includes self-drilling fasteners for quick and efficient setup.
• Removable and Reusable: Can be easily repositioned as needed for ongoing projects.

CAPACITY:

Maximum 1 connection per anchor
Worker Weight Range: 130 – 310 lbs. including all tools and equipment

DESIGN:

• Dimensions: 4” x 8”
• Weight: 3 lbs.

MATERIAL:

• Durable steel construction
• Drop forged D-ring
• Zinc Electroplate finish

MINIMUM BREAKING STRENGTH:

5000 lbs.; 3600 lb max. load

CONFORM TO NORM:

Meets or Exceeds all applicable OSHA & ANSI requirements for anchorage devices
