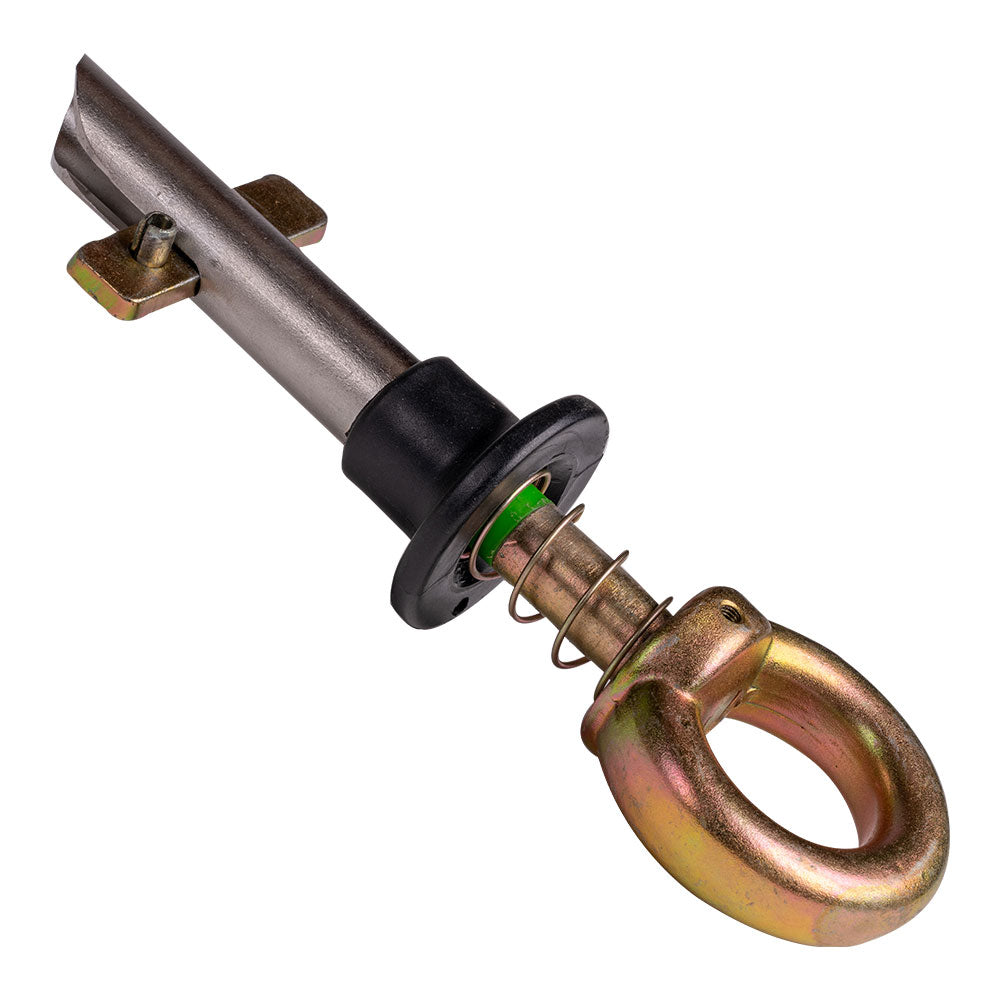

Girder Steel Anchor

DESIGN:

• Girder steel anchor is a removable/reusable anchor that can be mounted on solid steel structures, Girders and steel I-Beams.
• Can be installed very easily with one hand only.

USAGE:

For use as an anchorage point for fall protection equipment

MATERIAL:

Eye nut and Main body: Alloy steel. Outer Body: Stainless steel moulded with polymer.

RECOMMENDED BOLT HOLE SIZE:

0.80” to 1.18”

STATIC STRENGTH:

Greater than 5000 lbs.

MAXIMUM THICKNESS OF THE STRUCTURE ON WHICH INSTALLATION POSSIBLE:

1.57”

WEIGHT:

1.21 lb. ± 0.02 lb.

MINIMUM BREAKING STRENGTH:

5000 lbs.
