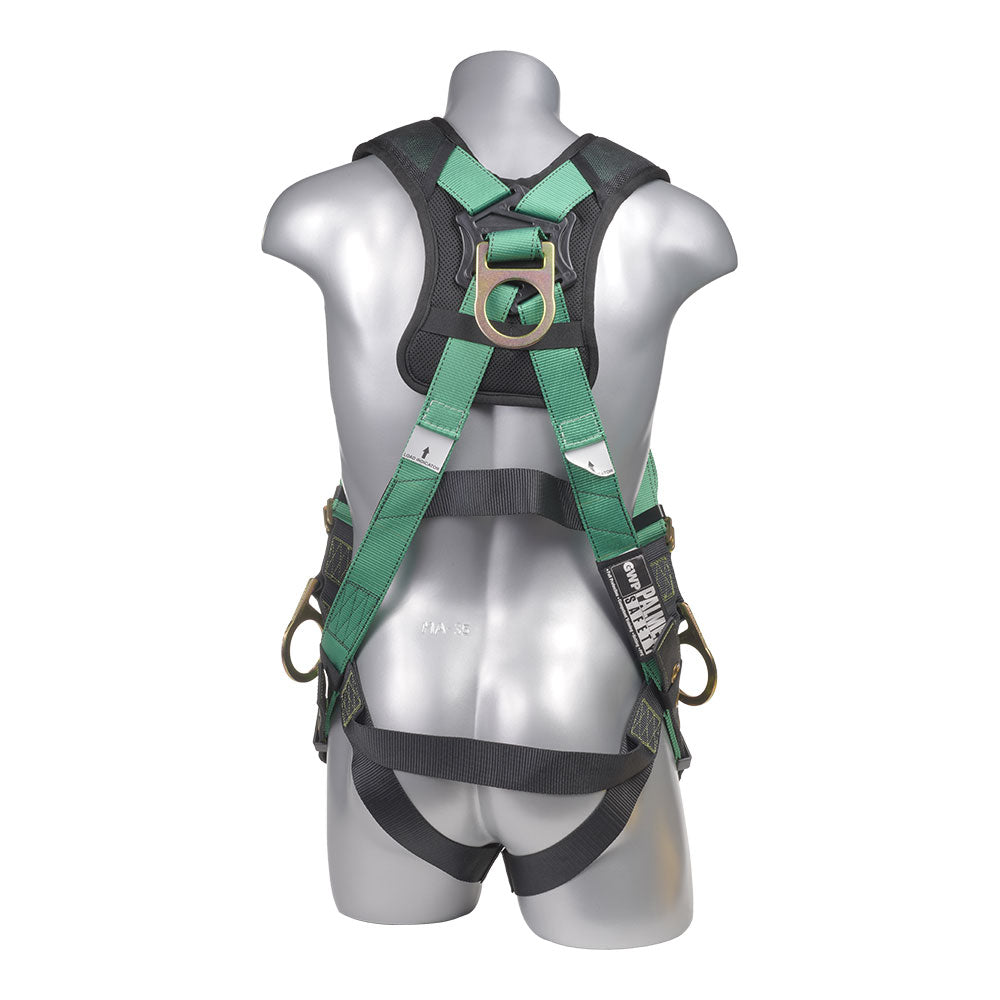

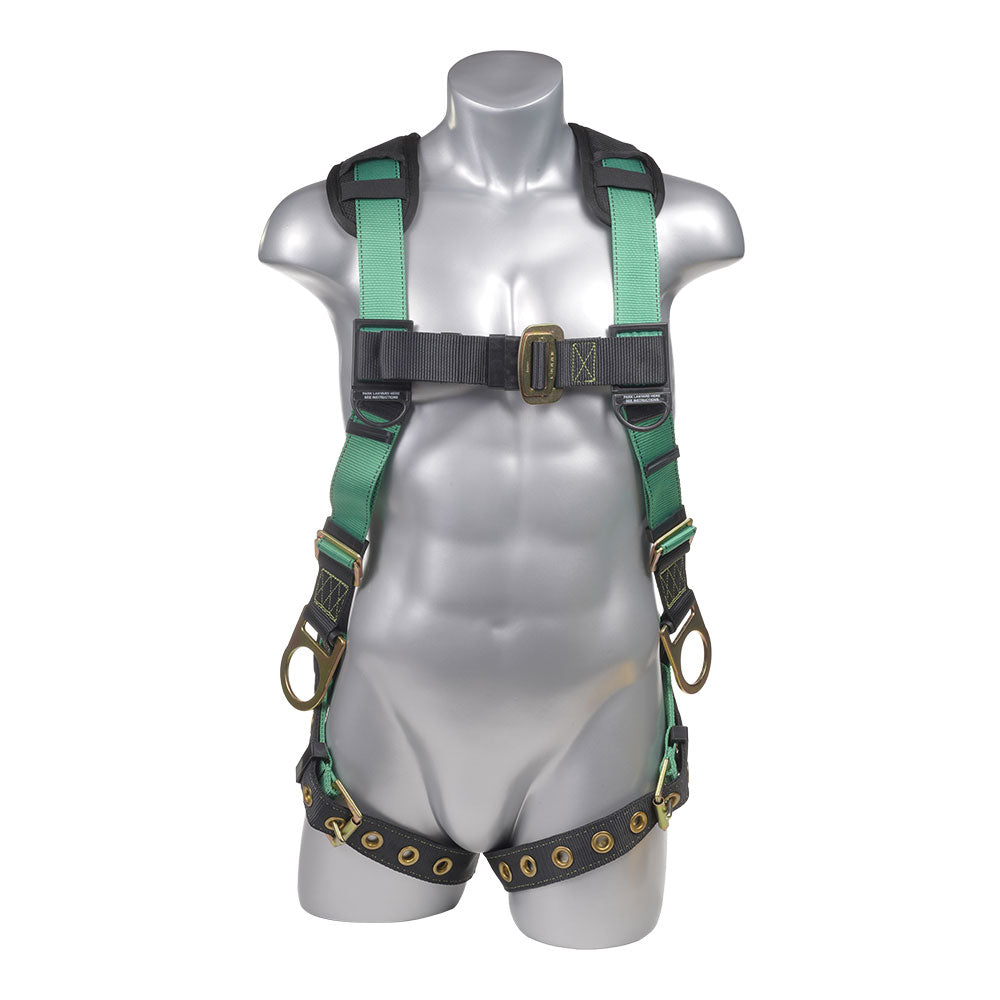

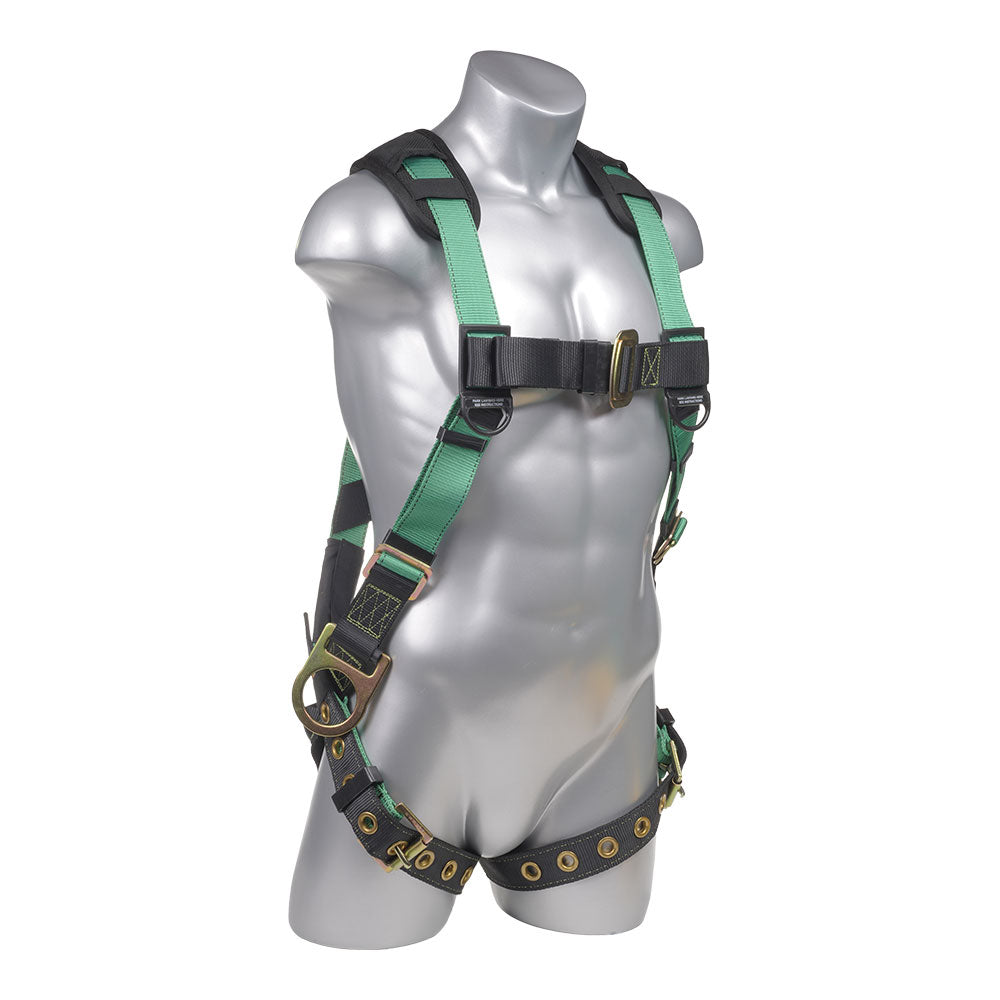

Full Body Harness

Key Features

DESIGN:

• One dorsal attachment D-ring for fall arrest.
•  Adjustable Shoulder straps.
•  Adjustable grometed leg straps.
• Two side D Ring for work positioning
• Shoulder pad incorporated for comfort

WEBBING:

Material – Polyester | Width – 44±1mm | Breaking strength – 5000 lbs

STITCHING THREAD:

Material: High-tenacity Polyester

METAL COMPONENT:

Material – High Strength Steel | Plating – Zinc plated | Finish – Shotblasted.

VITAL TEST COMPLIANCE:

Static Strength: 3600 lbs. for 1 minute.Dynamic Performance: The upper ring of dummy of 100 kg mass is raised to a height which allow to generate 16kN force above the anchorage point for free fall.

Weight:

1900gm. ±10 gm.
