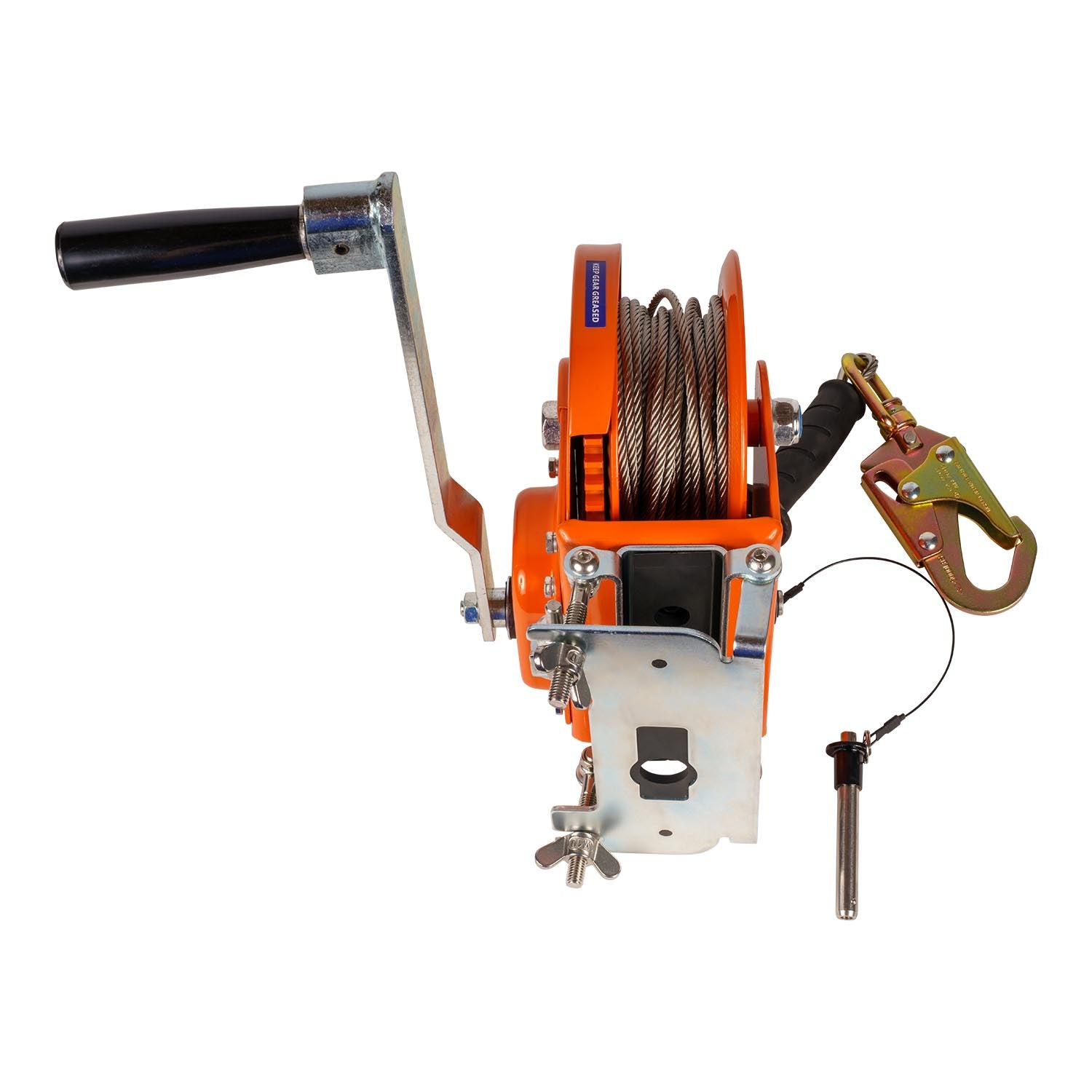

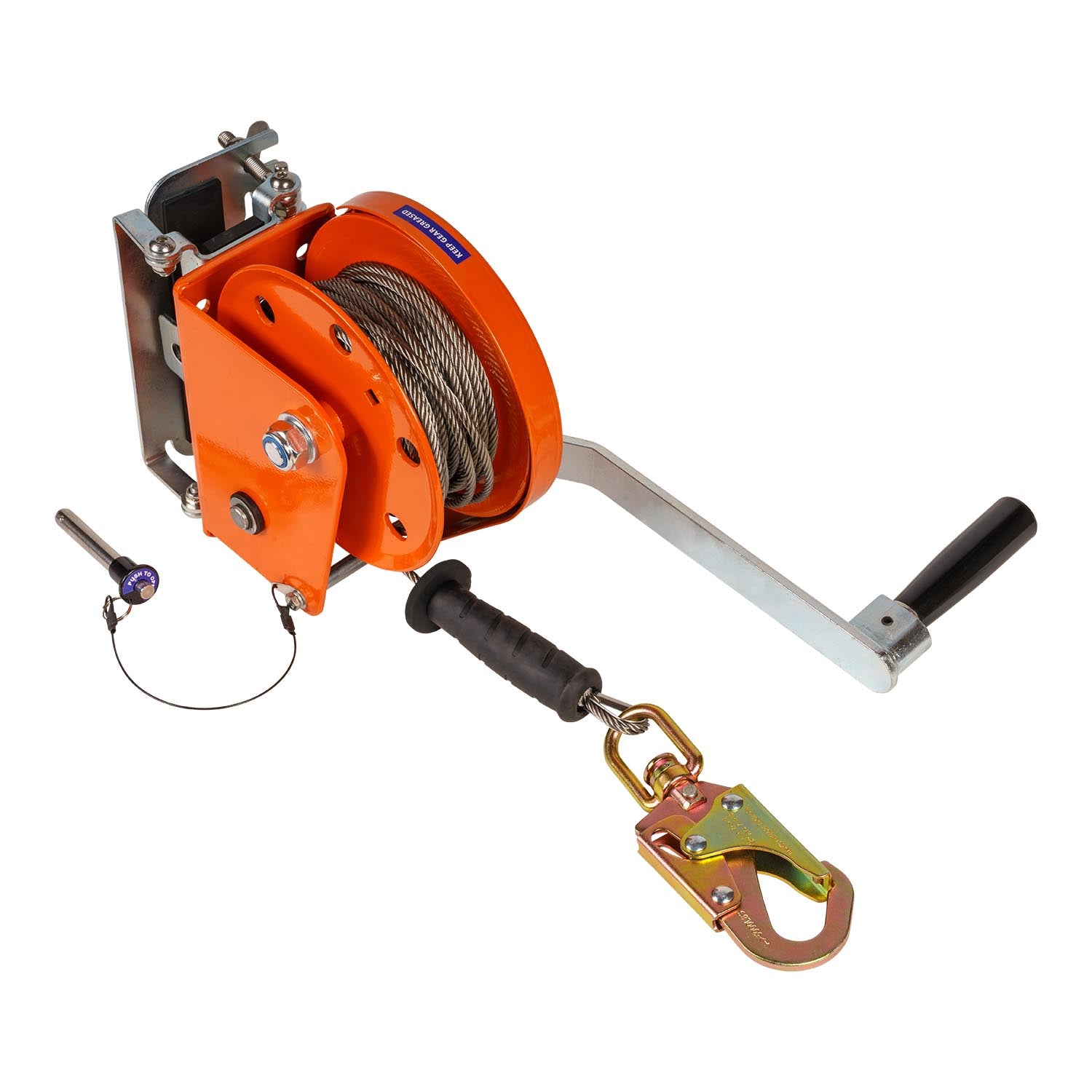

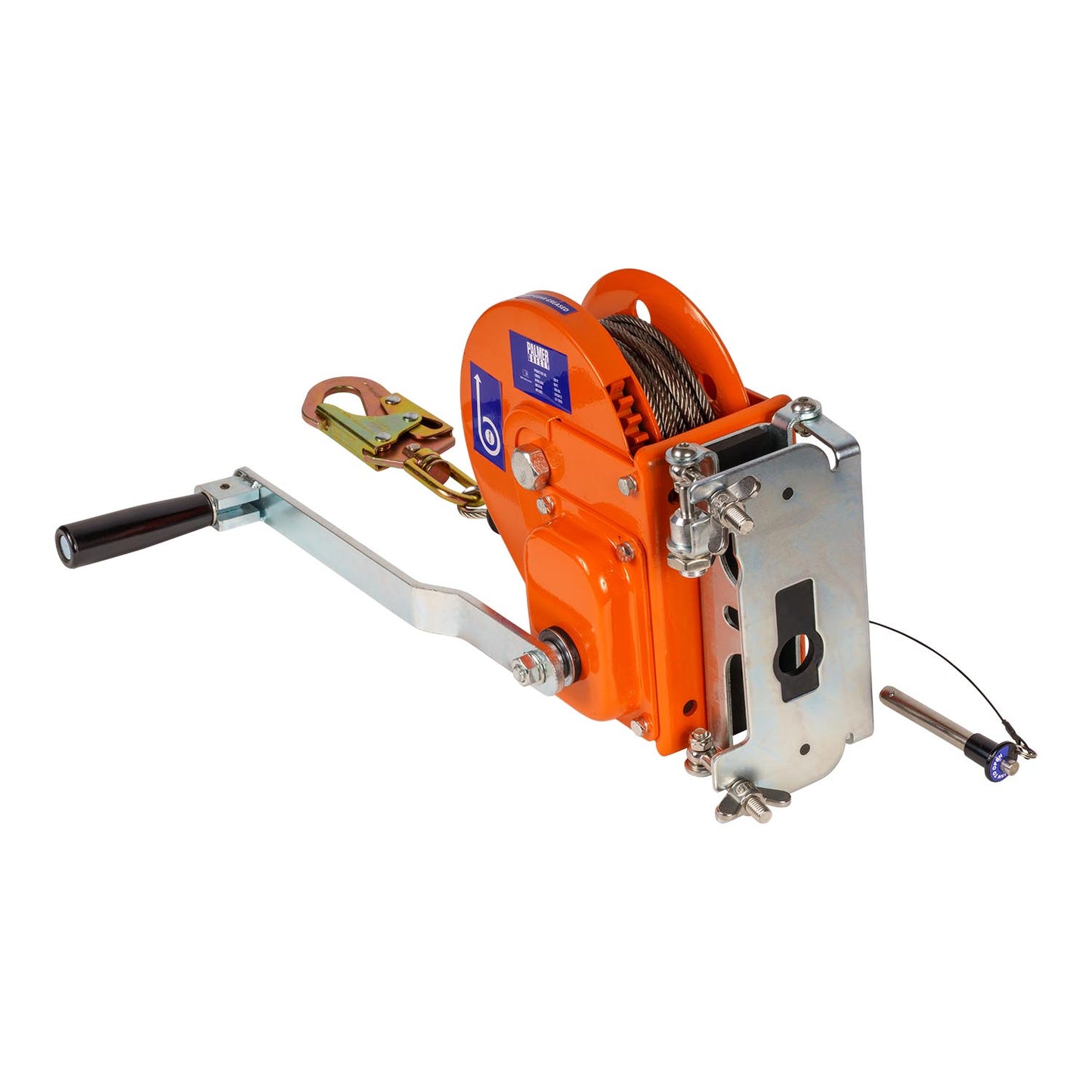

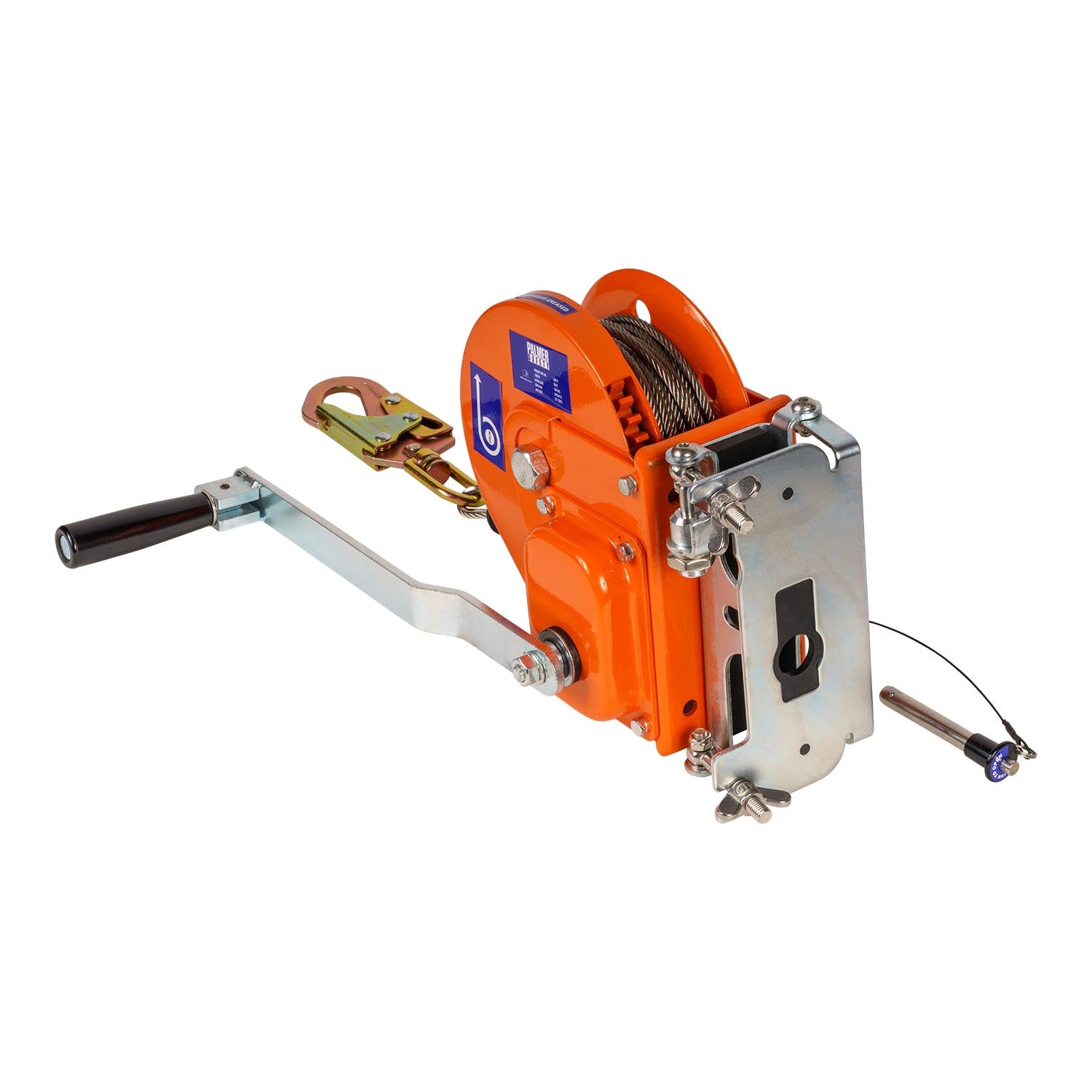

The Palmer Safety 60’ Personnel Winch is a rugged retrieval device designed for lifting and lowering personnel or materials in confined spaces. It features a 60-foot stainless steel wire rope and a swivel steel snap hook. The unit is equipped with a handle rotating mechanism for easy operation and is designed to mount securely to the CS717 Tripod leg.
Palmer Safety 60’ Personnel Winch
Palmer Safety 60’ Personnel Winch
Call for pricing: 949-954-6581
Key Features
DESIGN:
- Rescue & Retrieval: Man-lifting rescue winch designed for raising and lowering.
- Durable Cable: 60 ft. (18m) of 13/64” (5mm) Stainless Steel wire rope.
- Swivel Snap Hook: Equipped with a steel swivel snap hook with a 3,600 lbs. gate strength.
- Mounting: Quickly mounts to tripod legs using the specialized bracket system.
- Operation: Manual rotating handle for controlled lifting.
BODY MATERIAL:
Steel
CABLE MATERIAL:
5mm Stainless Steel Wire Rope
Length: 60 ft. (18m)
CONNECTOR:
Swivel Steel Snap Hook (ANSI Z359.12-2019 compliant)
MAXIMUM USER WEIGHT:
310 lbs. (140 kg)
STATIC STRENGTH:
Tested at 3,100 lbs.
WEIGHT:
25 lbs. (11.35kg)
RELEVANT STANDARDS:
Meets or Exceeds ANSI Z359.4-2022 and ANSI Z117.1-2022
