BeamGuard HLL Stanchion
BeamGuard HLL Stanchion
Call for pricing: 949-954-6581

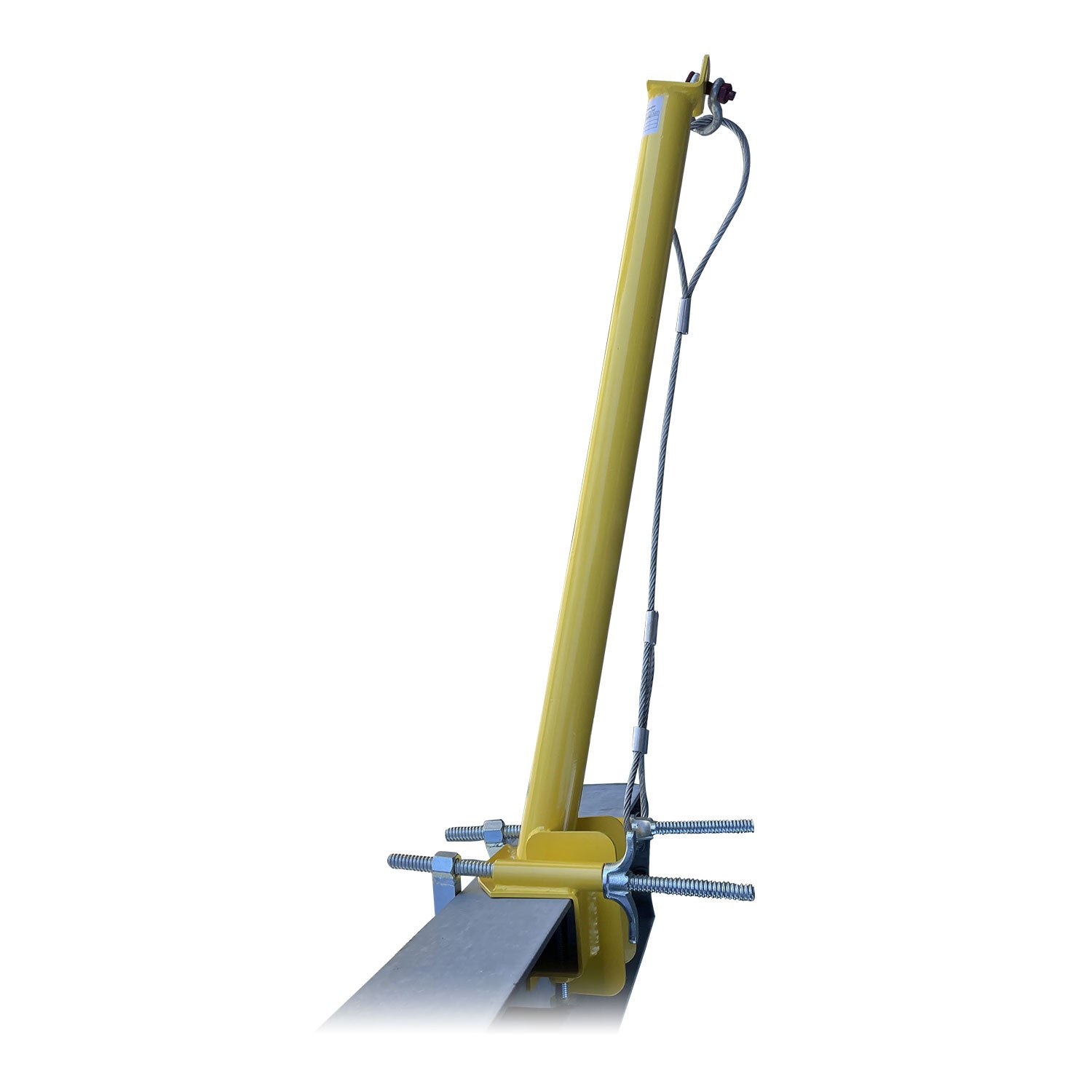

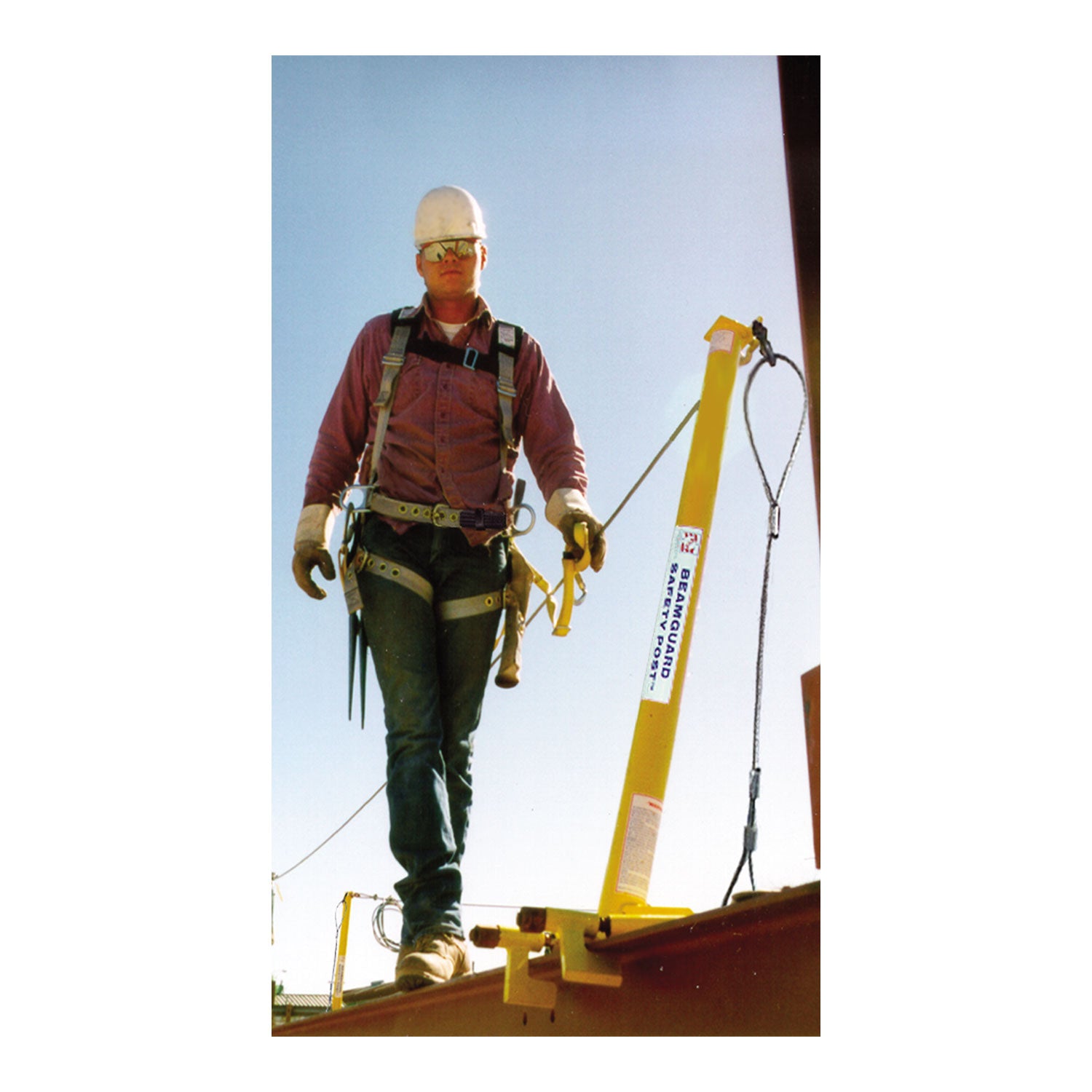

The Palmer Safety BeamGuard HLL Stanchion can be used in combination with any of Palmer Safety’s rope HLL kits and cable HLL kits. Able to accommodate up to two workers between each set of stanchions (maximum stanchion spacing is 60’), the BeamGuard has three base size options to allow for installation onto a variety of beam sizes. A Pass-Through Top Accessory is also available to facilitate 100% tie-off when transitioning between spans.
Base size compatibility:
Small: Thickness: Up to 1.25”. Width: 4” – 13.75”
Intermediate: Thickness: Up to 2.125”. Width: 4” – 19.75”
Large: Thickness: Up to 3.375”. Width: 4” – 31.75”

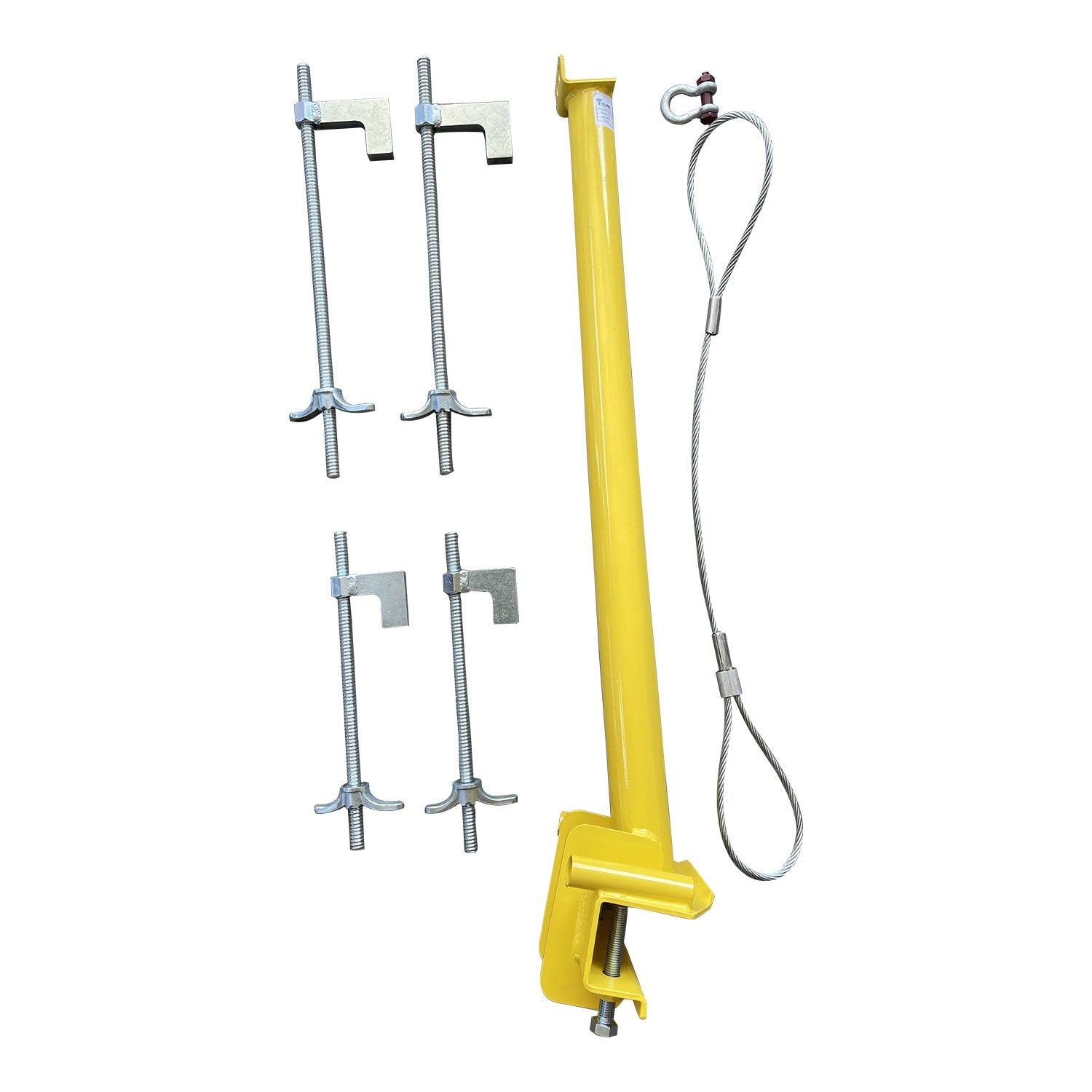

| Part # | Size | Description |
|---|---|---|
| BGSAPOST | BeamGuard Standard Post | |
| BGCONNECTORSTD | 18” Threaded Rods | Small Flange Hook |
| BGCONNECTORINT | 24” Threaded Rods | Medium Flange Hook |
| BGCONNECTORLG | 36” Threaded Rods | Medium Flange Hook |
| BEAMG-PASS | Pass-Through Top Accessory | |
Key Features
USER CAPACITY:
130 – 420 lbs
DESIGN:
- Durable and reusable
- Use in combination with rope or cable HLL system
- 300’ recommended maximum span length
- Install HLL system either parallel with or perpendicular to I-beam
MATERIAL:
Powder-coated steel
MIN. BREAKING STRENGTH:
5000 lbs.
CONFORMS TO:
Meets or Exceeds ANSI Z359.1-07, ANSI A10.32-12, OSHA 1926 Subpart M, OSHA 1910
