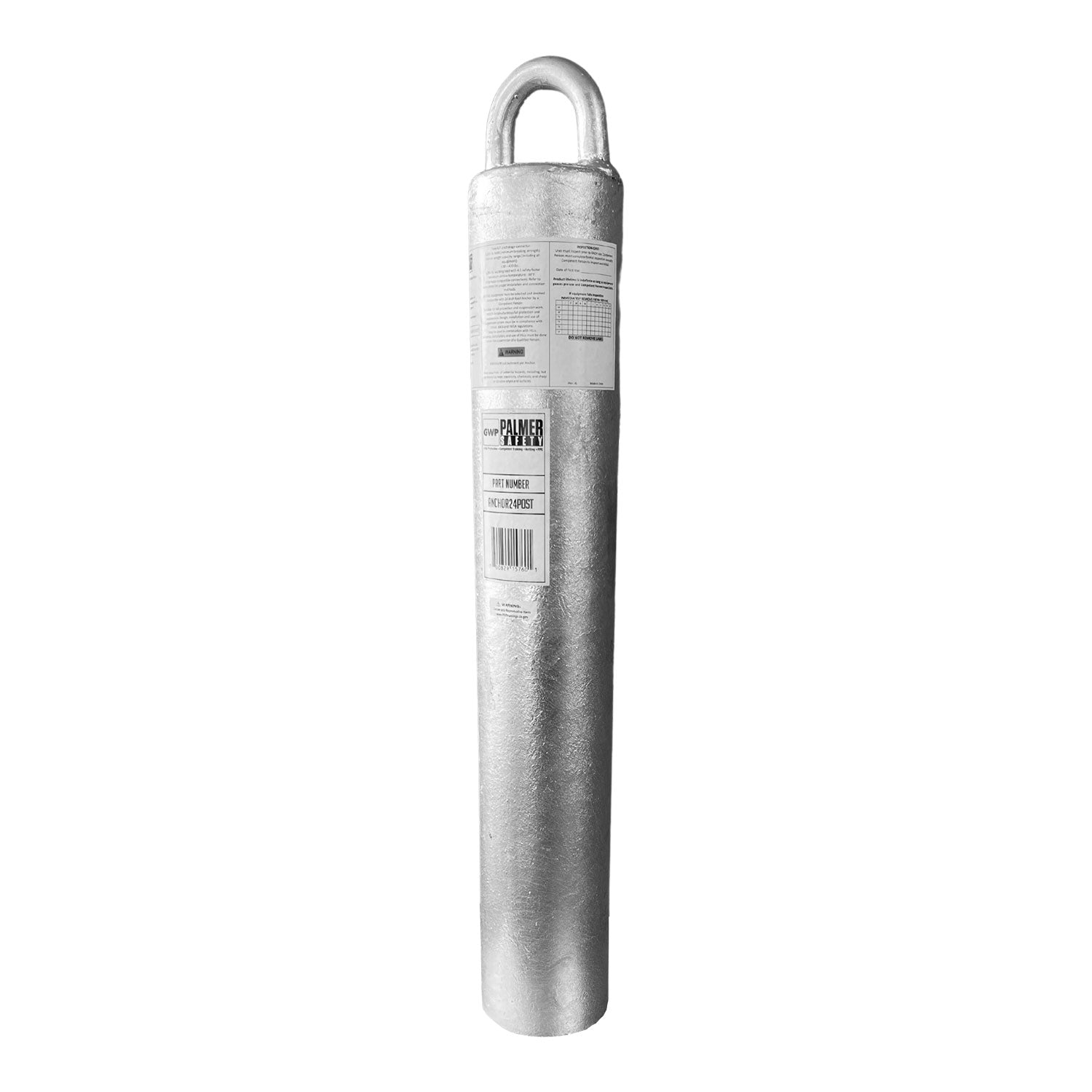

24” Roof Tieback Post

24” Roof Tieback Post Galvanized Finish, Post Only for Weld On Installation, 5,000 Lb. MBS, Fixed Connection Point for Single Point Tie-off or HLL Endpoint. Meets or Exceeds OSHA 1910 and 1926 Subpart M, ANSI Z359.18-2017 and ANSI A10.32-2012.

Key Features

DESIGN:

• Extends through roofing so it’s accessible both during and after construction
• Intended for permanent locations
• Compatible with horizontal lifelines

STANDARDS:

OSHA 1926 Subpart M & 1910 and ANSI Z359.18-2017 & A10.32 -2012
Type A & Type T Anchorage Connector

MATERIALS:

Galvanized Steel

WORKER CAPACITY:

130 – 420 lbs.

PERFORMANCE:

• Maximum Users: 1
• 5,000 lb. MBS (Minimum Breaking Strength)

NOTES:

• Minimum service temperature: -30°F
• Suitable for use in combination with HLL Systems

WEIGHT:

31 lbs.
