With a stainless-steel baseplate, the 2-Hole Anchor Plate with D-Ring can be secured to steel or concrete surfaces by bolting, welding, or using suitable fasteners. It is ideal for permanent installations and those exposed to the elements. The large D-ring is freely movable with gloved hands. Minimum breaking strength is 5000 lbs. Meets or Exceeds OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.18-2017, and ANSI A10.32-2012 Type A Anchorage Connector.

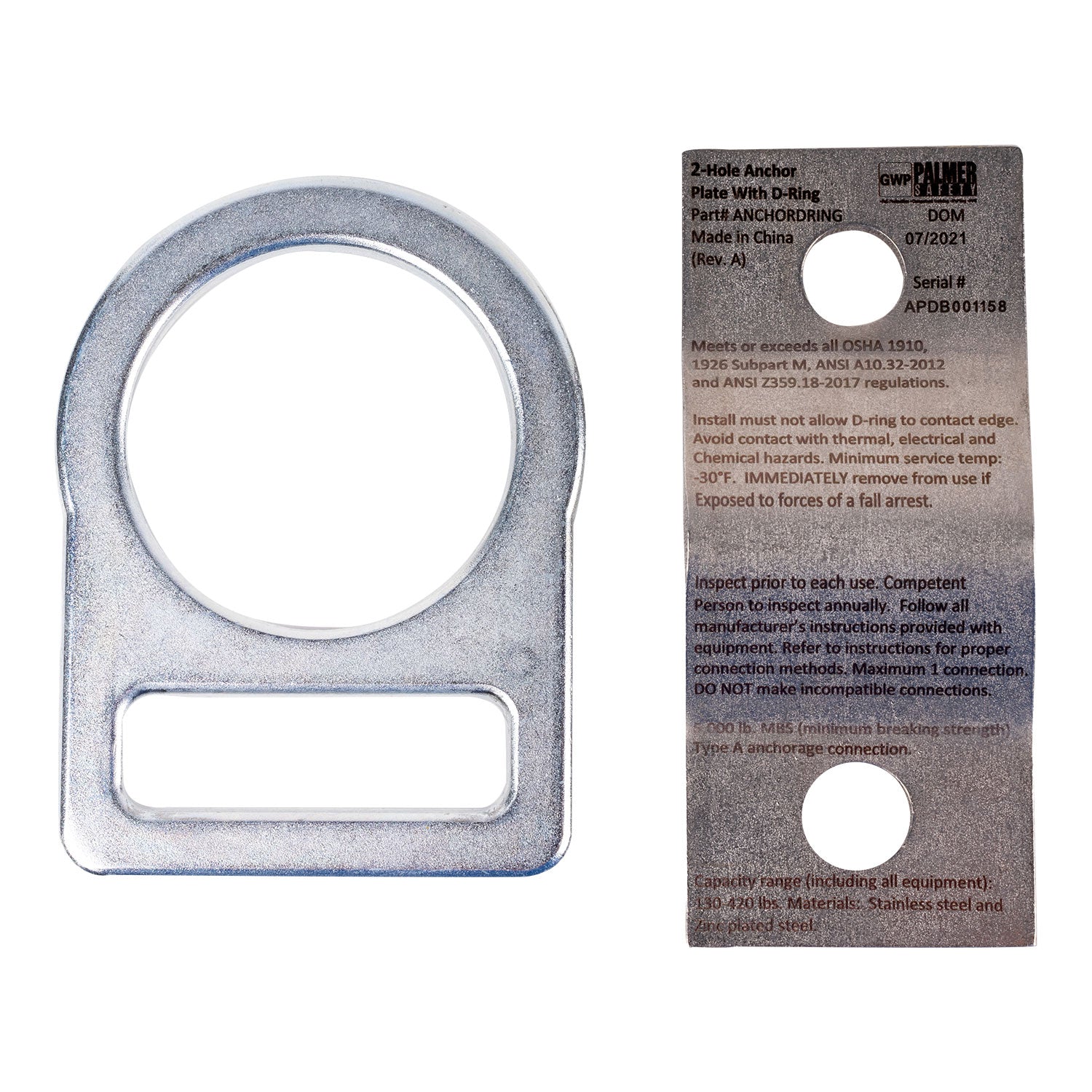

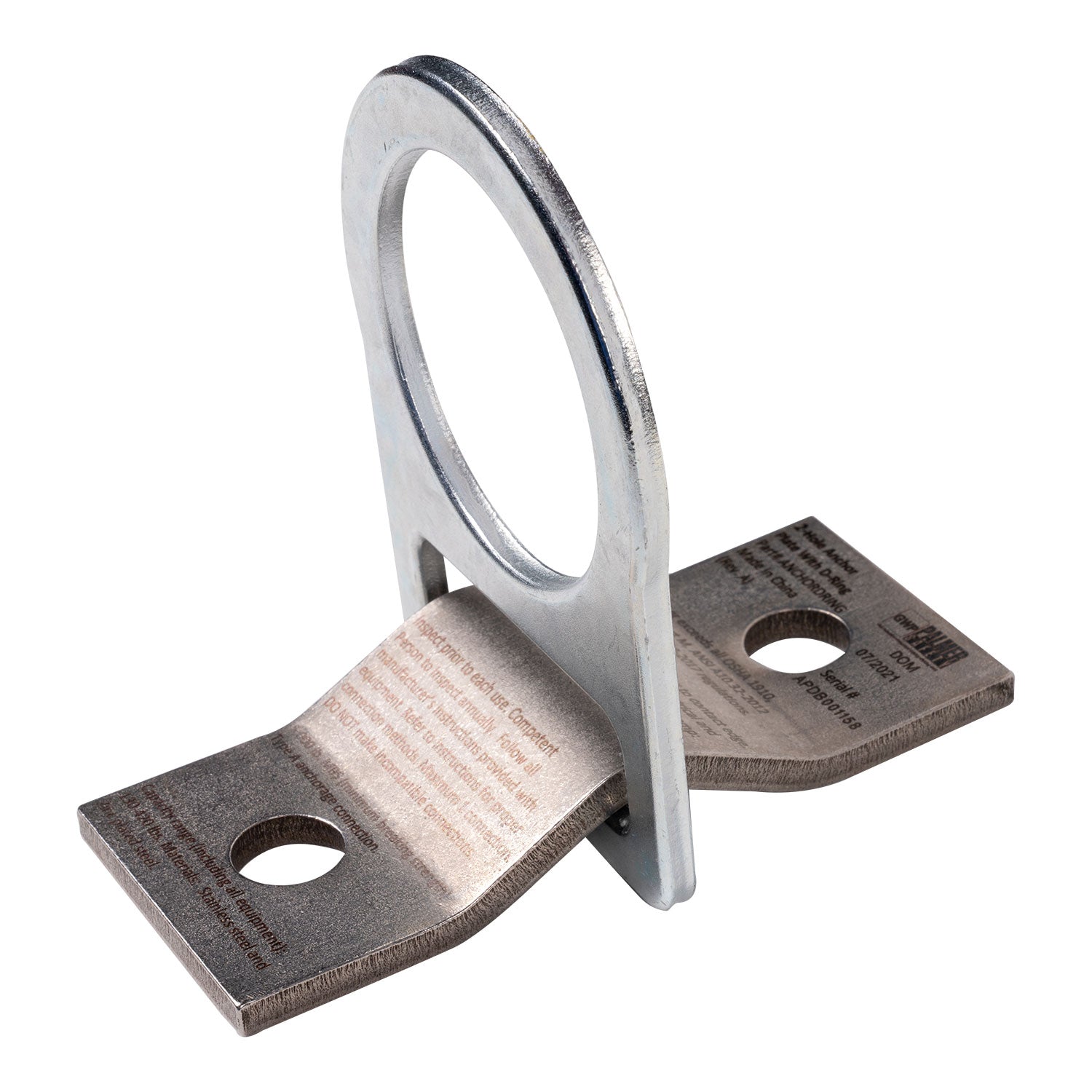

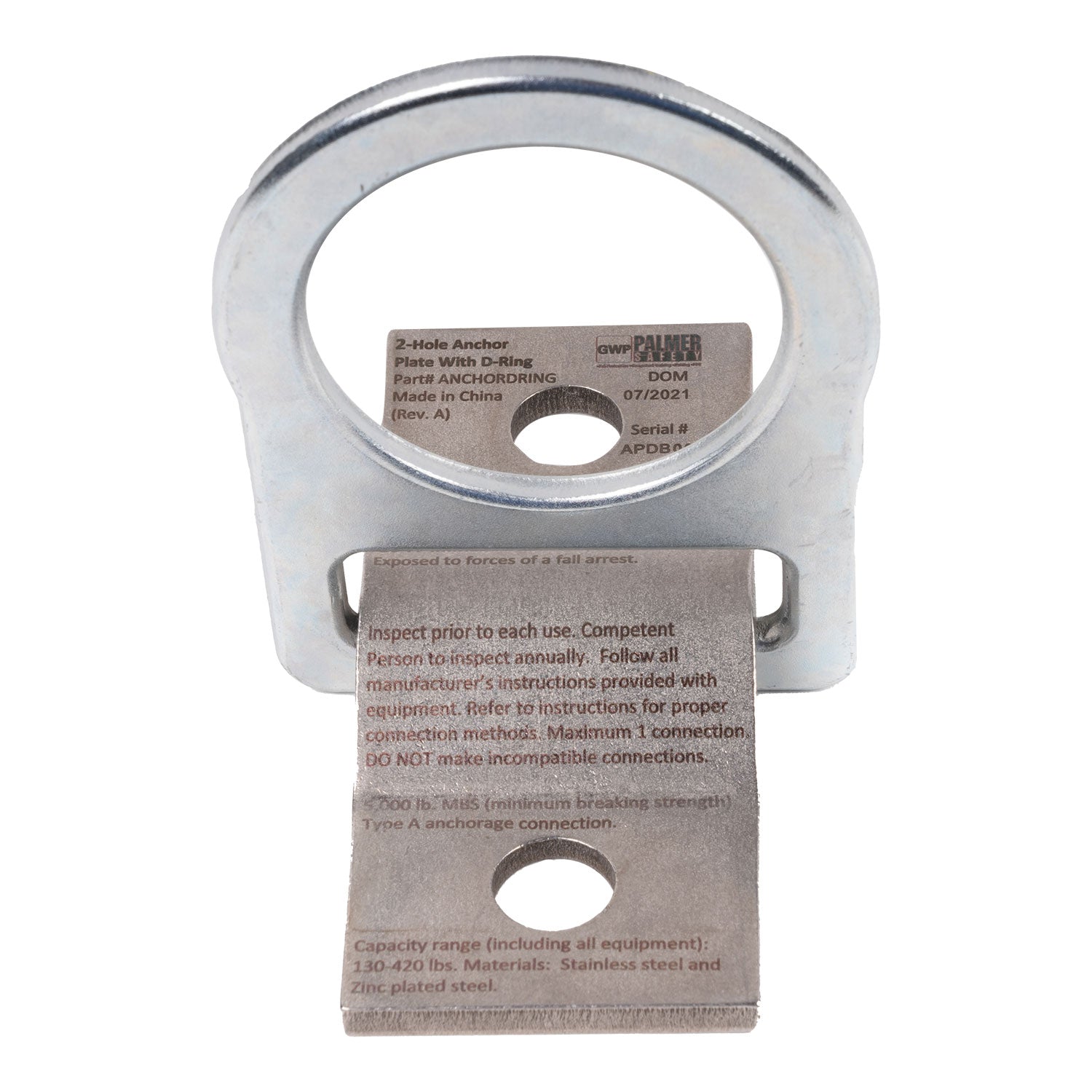

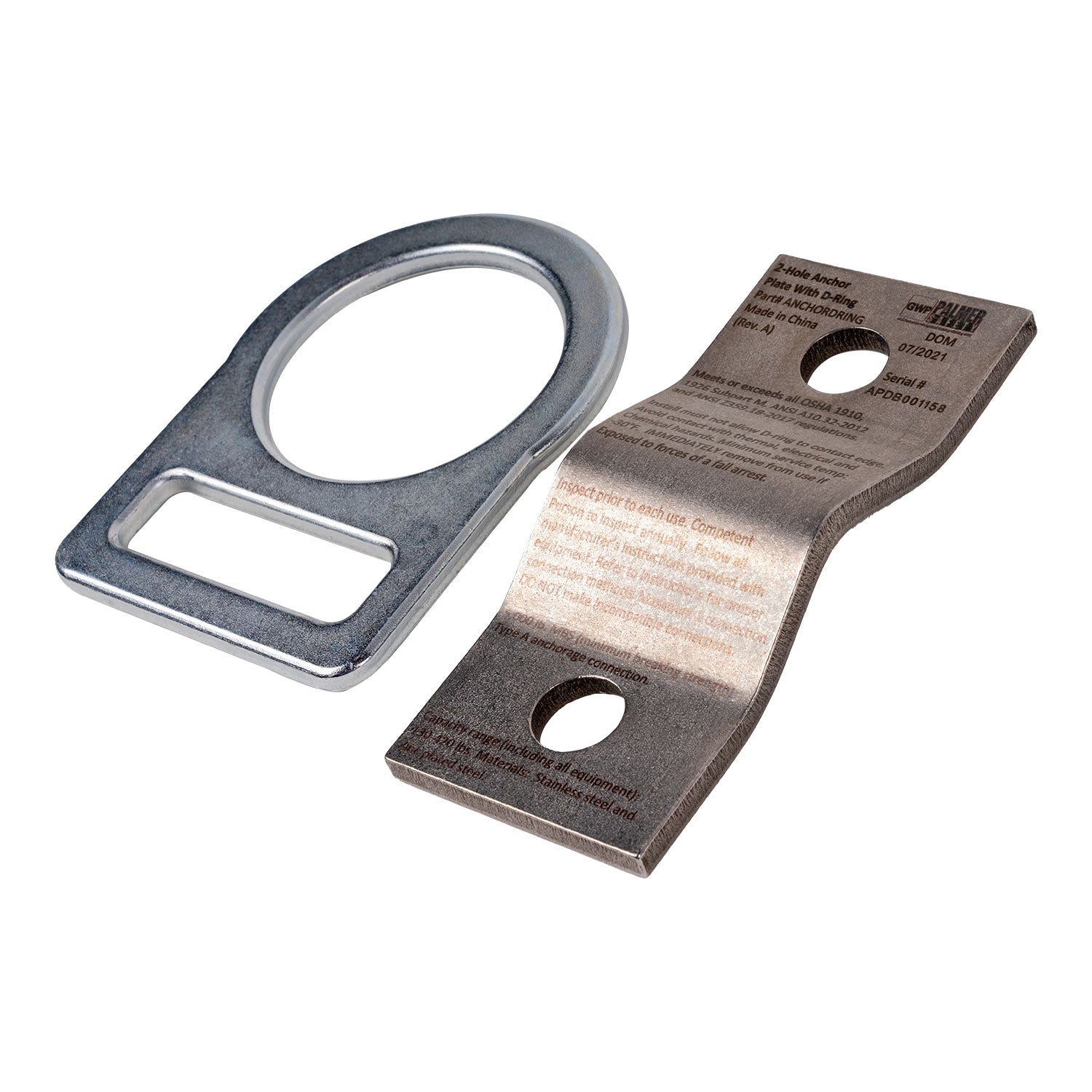

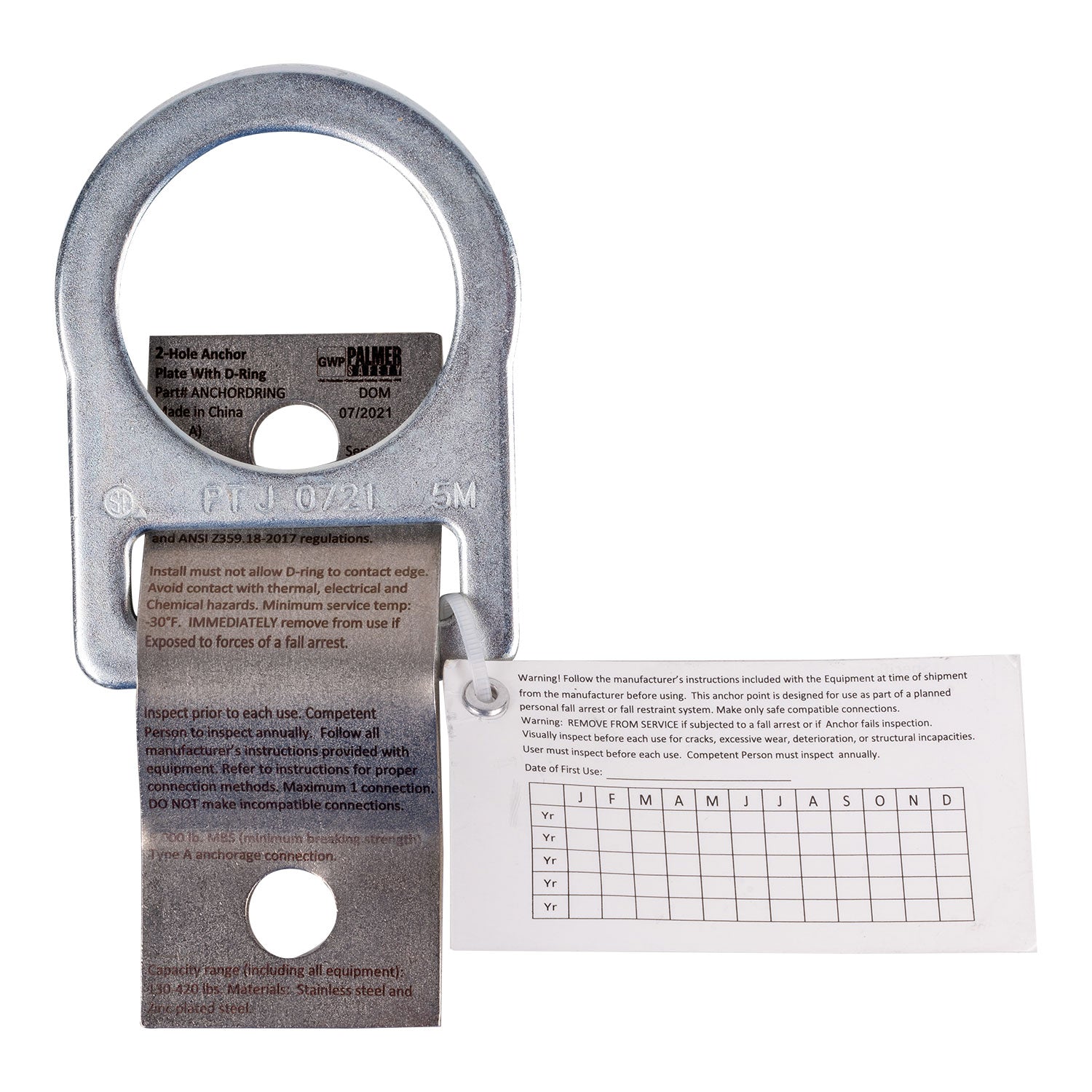

2-Hole Anchor Plate with D-Ring
2-Hole Anchor Plate with D-Ring
Call for pricing: 949-954-6581
Key Features
CAPACITY:
Maximum 1 connection per anchor
Worker Weight Range: 130 – 420 lbs. including all tools and equipment
DESIGN:
- Stainless steel baseplate resists corrosion
- Small footprint: 1.97” x 4.72”
- Compatible with horizontal lifelines
MATERIAL:
Stainless Steel and Zinc-plated Steel
MINIMUM PERMITTED SERVICE TEMPERATURE:
-30° F
MINIMUM BREAKING STRENGTH:
5000 lbs.
CONFORM TO NORM:
Meets or Exceeds OSHA 1926 Subpart M, OSHA 1910, ANSI Z359.18-2017, and ANSI A10.32-2012 Type A Anchorage Connector
