Back Plate for 12” Roof Anchor 1/2” Thick. For Mounting 12” Roof Anchor to Beams or Other Structural Member.

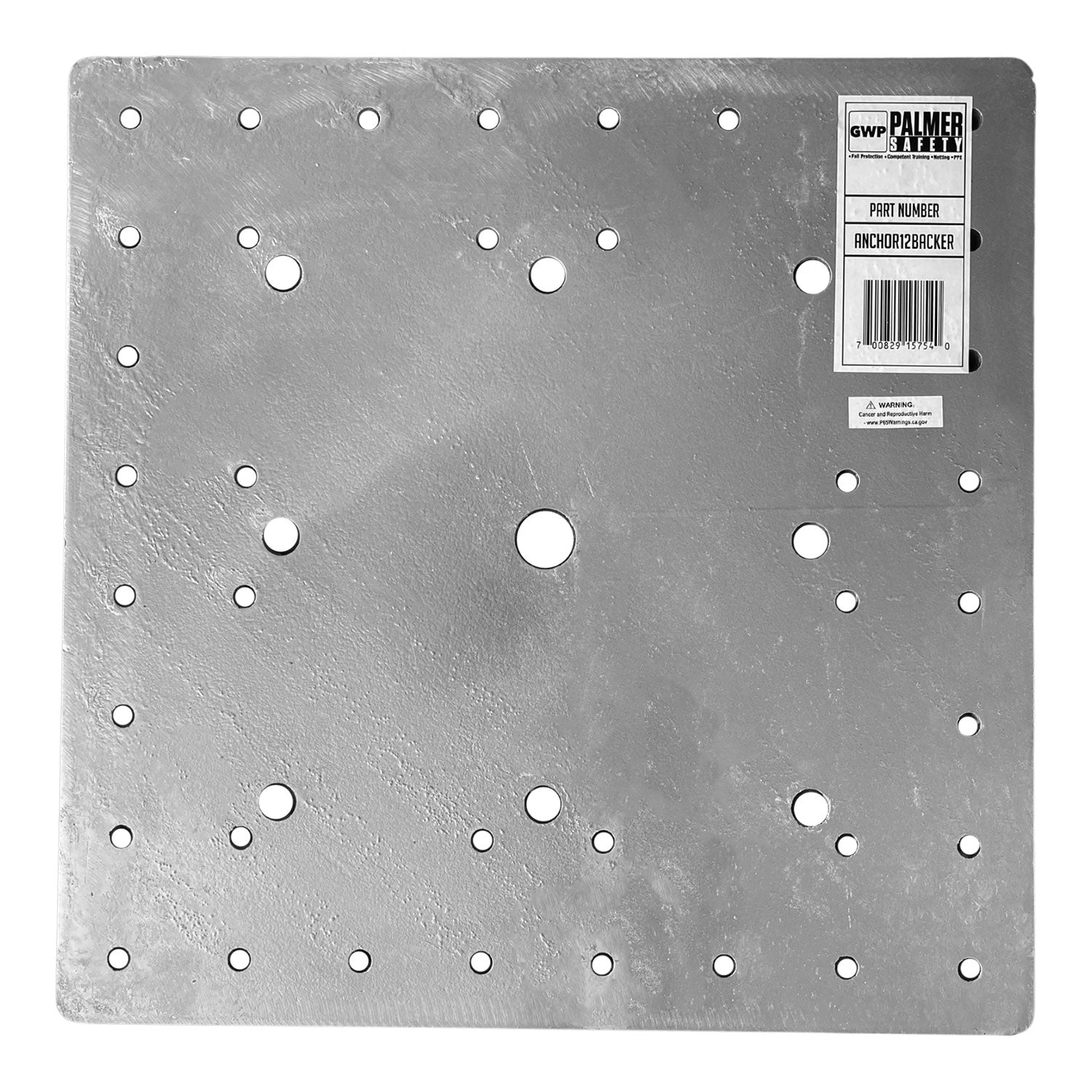

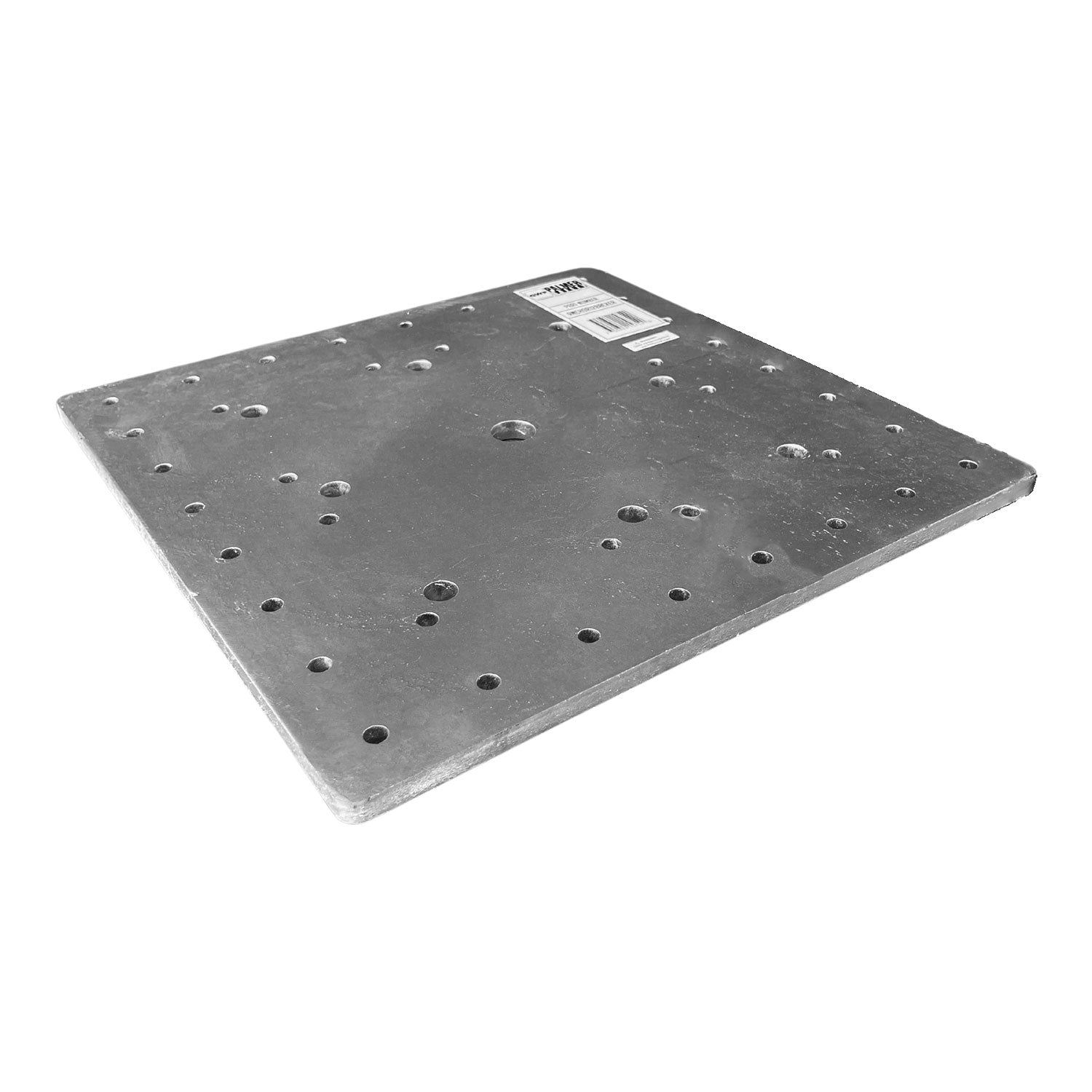

12” Roof Anchor Back Plate
12” Roof Anchor Back Plate
Call for pricing: 949-954-6581
Key Features
DESIGN:
- Extends through roofing so it’s accessible both during and after construction
- Intended for permanent locations
- Compatible with horizontal lifelines
- Compatible for installations onto wood, steel, and concrete substrates
STANDARDS:
OSHA 1926 Subpart M & 1910 and ANSI Z359.18-2017 & A10.32 -2012 Type A Anchorage Connector
MATERIALS:
Galvanized Steel
WORKER CAPACITY:
130 – 420 lbs.
PERFORMANCE:
- Maximum Users: 1
- 5,000 lb. MBS (Minimum Breaking Strength)
NOTES:
- Minimum service temperature: -30°F
- Suitable for use in combination with HLL Systems
WEIGHT:
33 lbs.
