Palmer Safety Confined Space Tripod & 115’ SRL-R System
Palmer Safety Confined Space Tripod & 115’ SRL-R System
Call for pricing: 949-954-6581

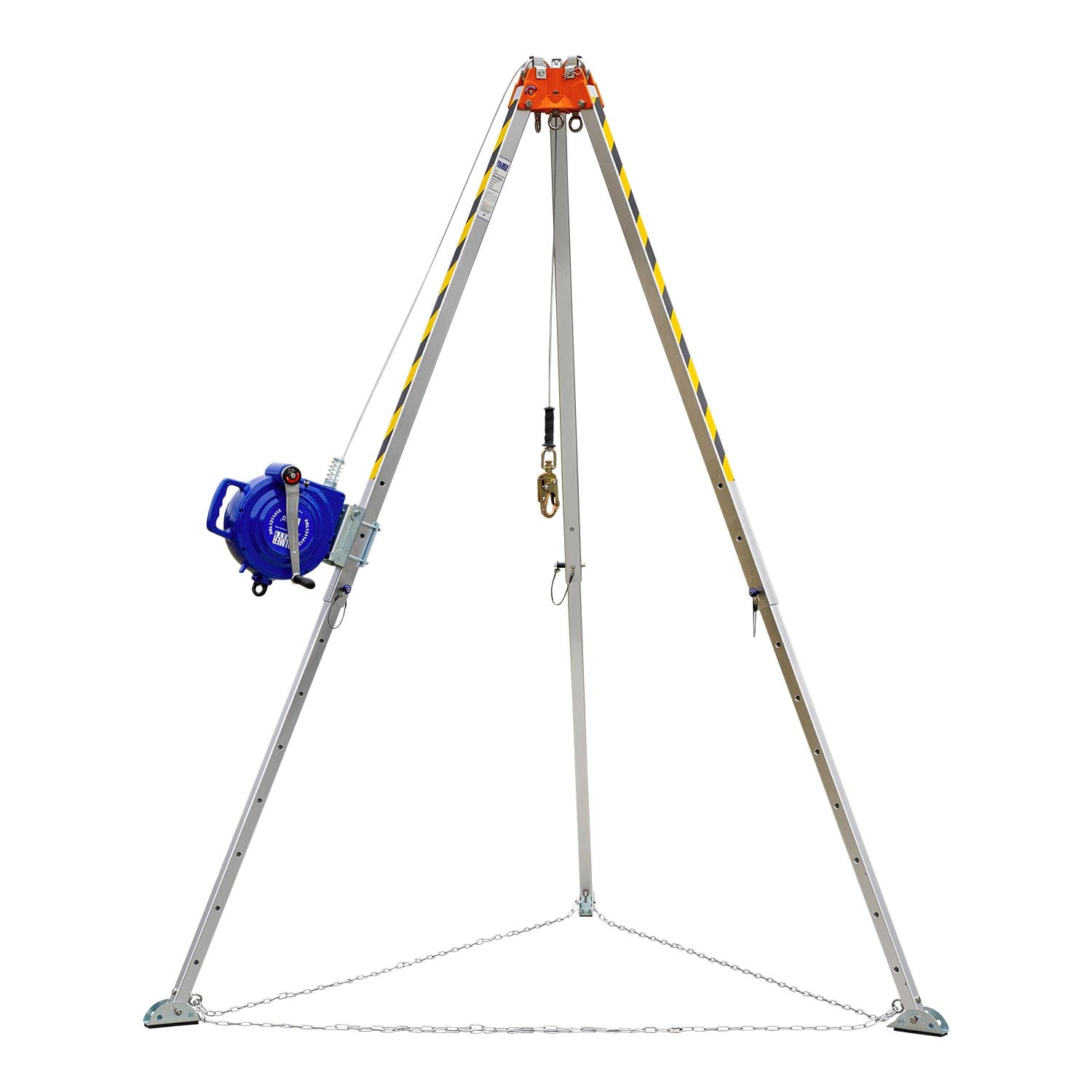

A streamlined, deep-depth fall protection and retrieval system featuring the 7’ Aluminum Tripod and an extended 115’ 3-Way Self-Retracting Lifeline. This kit provides maximum vertical range with seamless transitioning between independent fall arrest and winch modes.
Key Features
INCLUDED COMPONENTS:

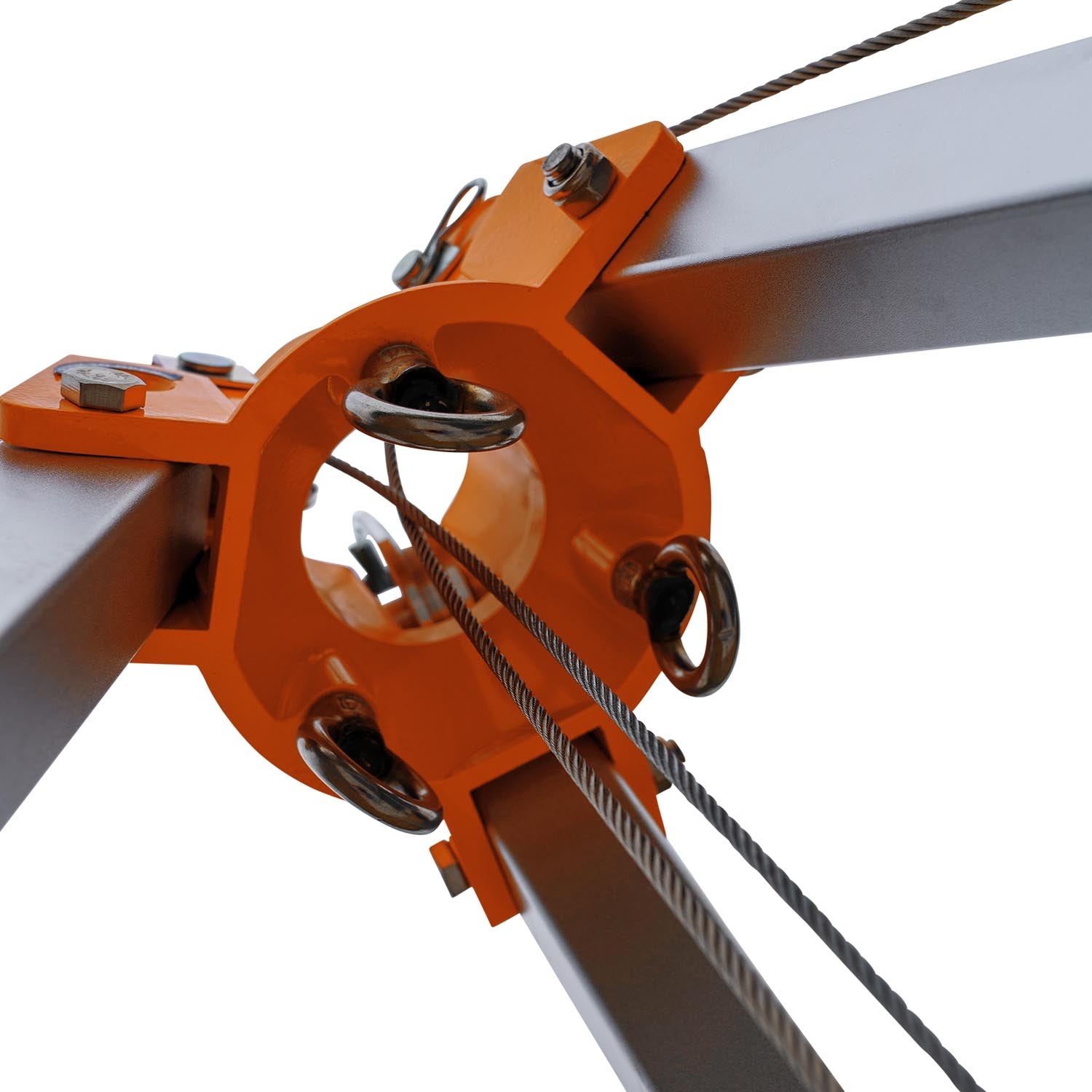

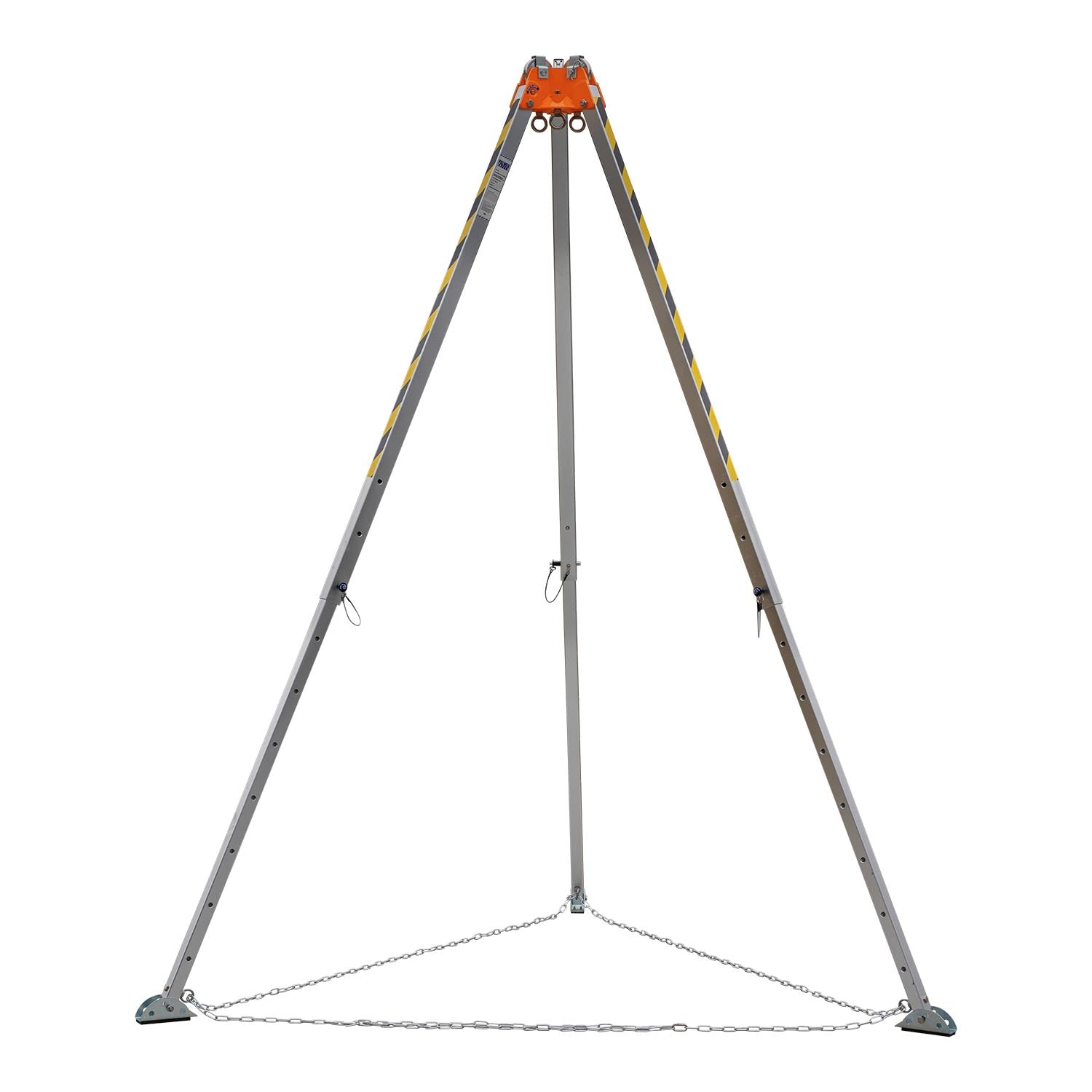

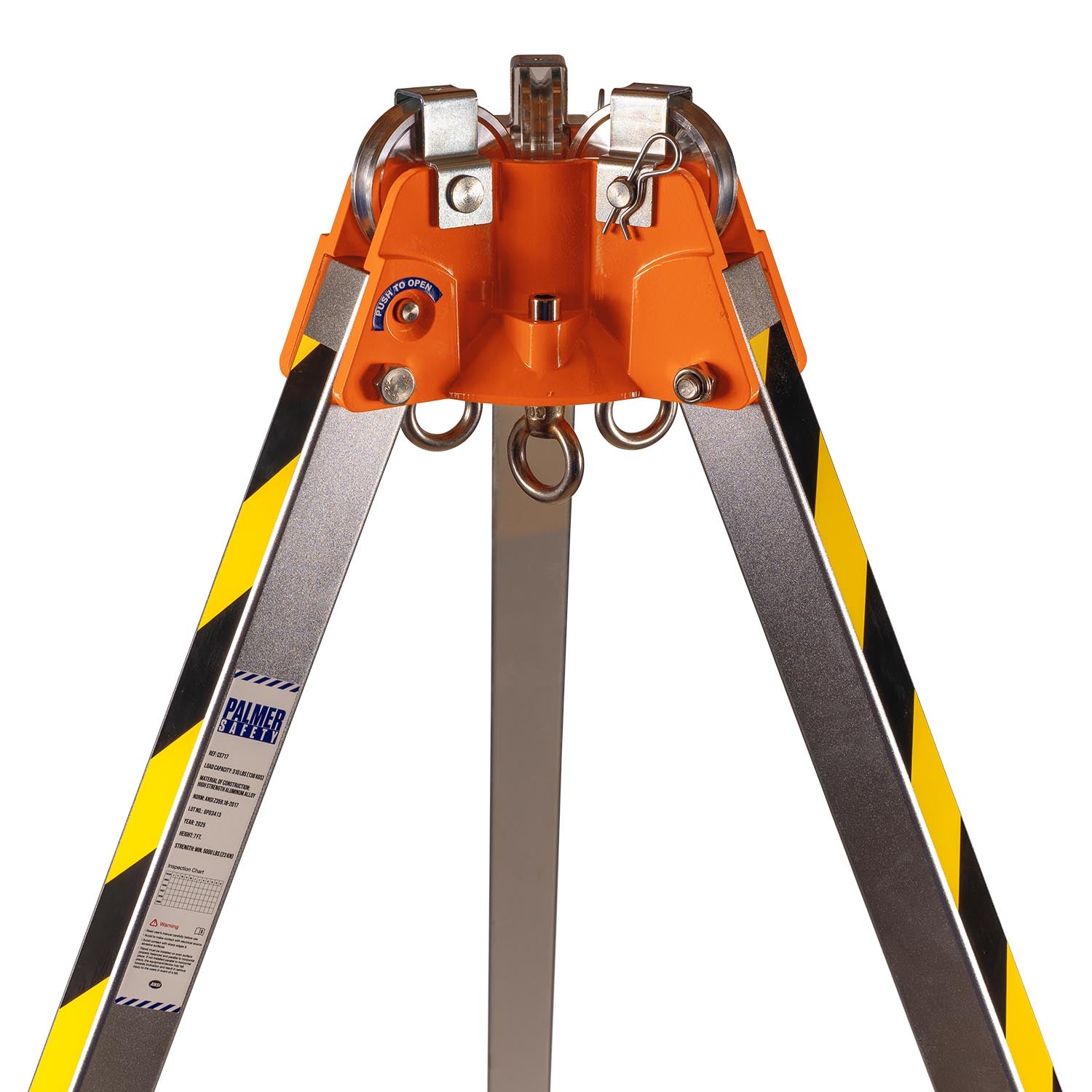

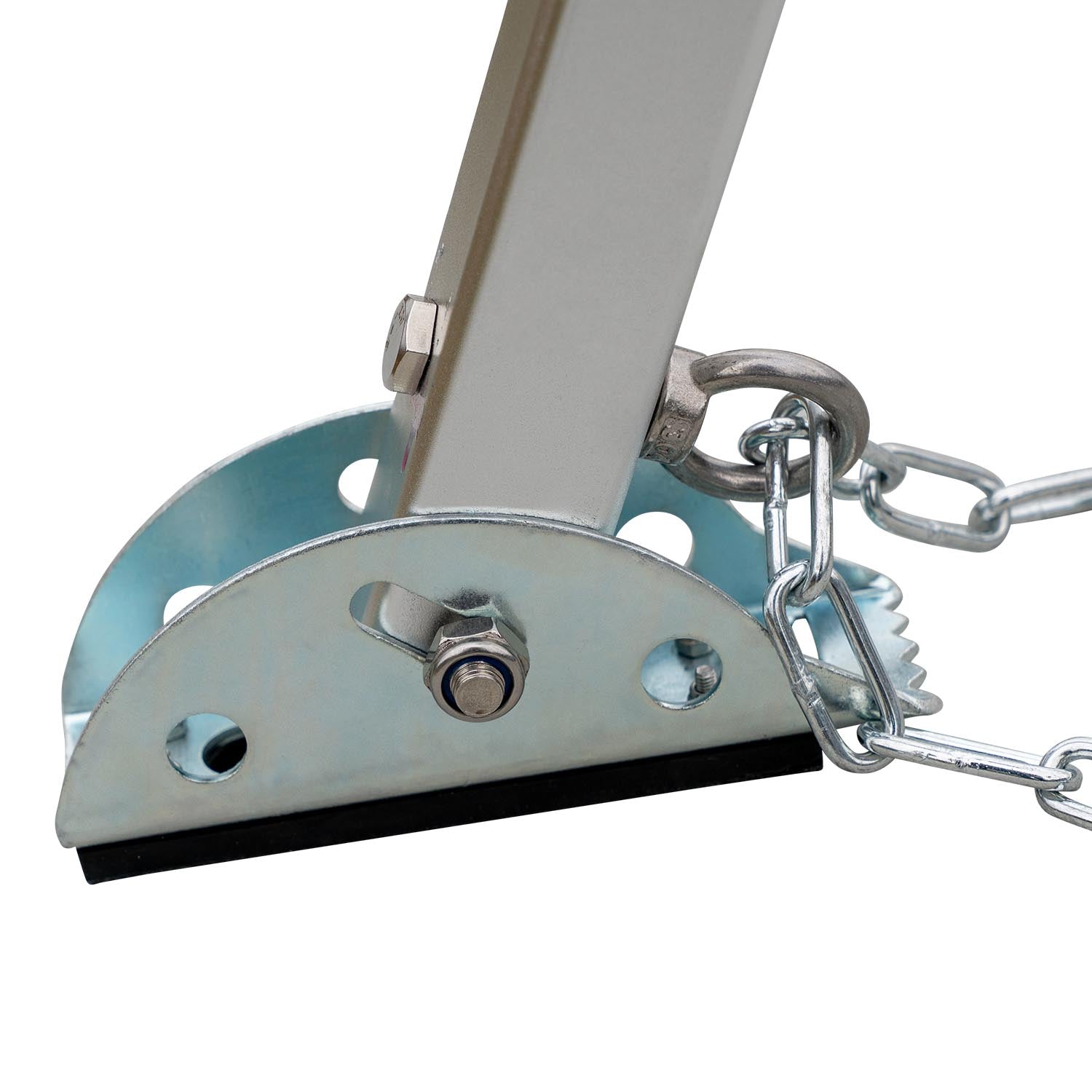

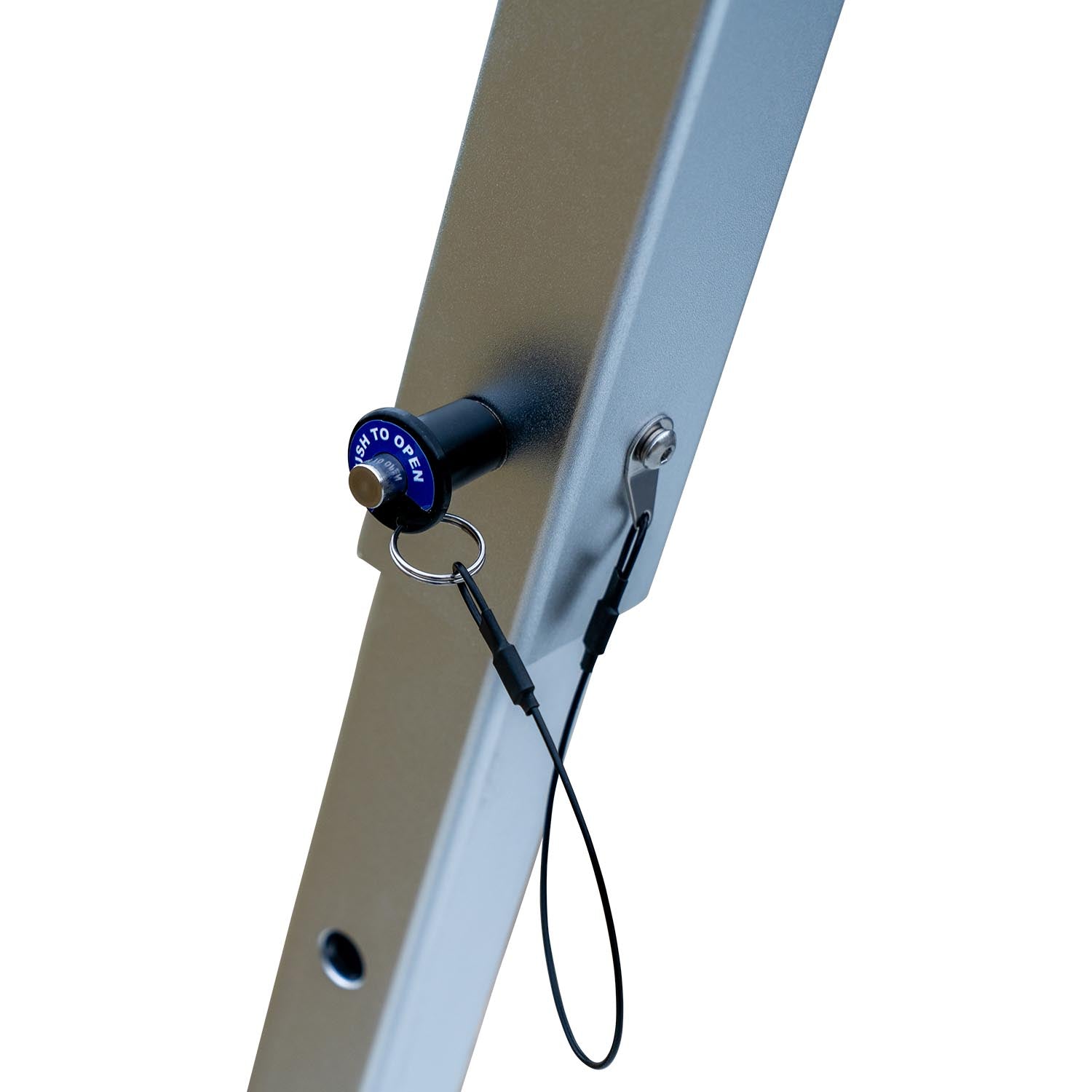

- Confined Space 7’ Tripod (CS717): Aluminum alloy tripod with telescopic legs and a three-pulley head.

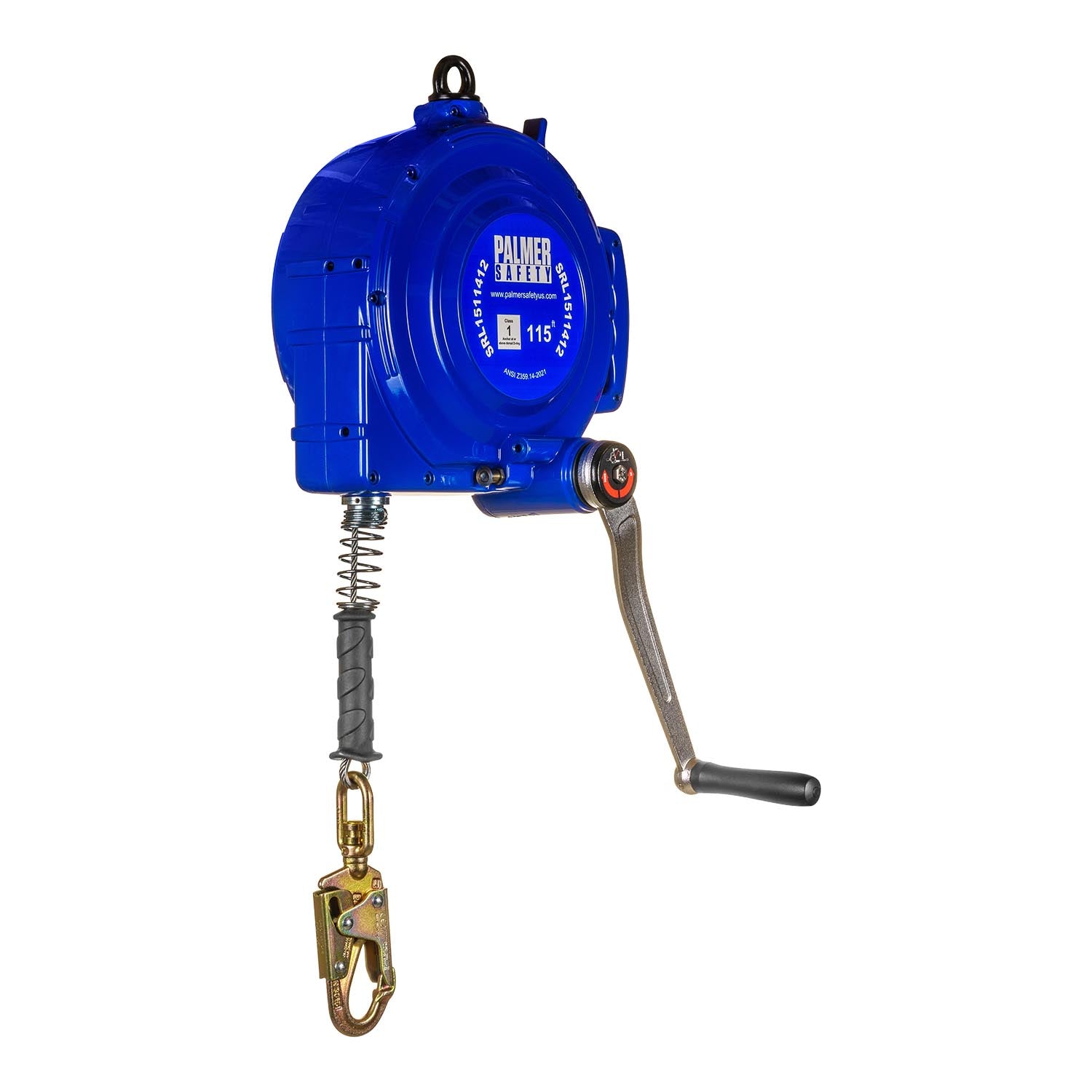

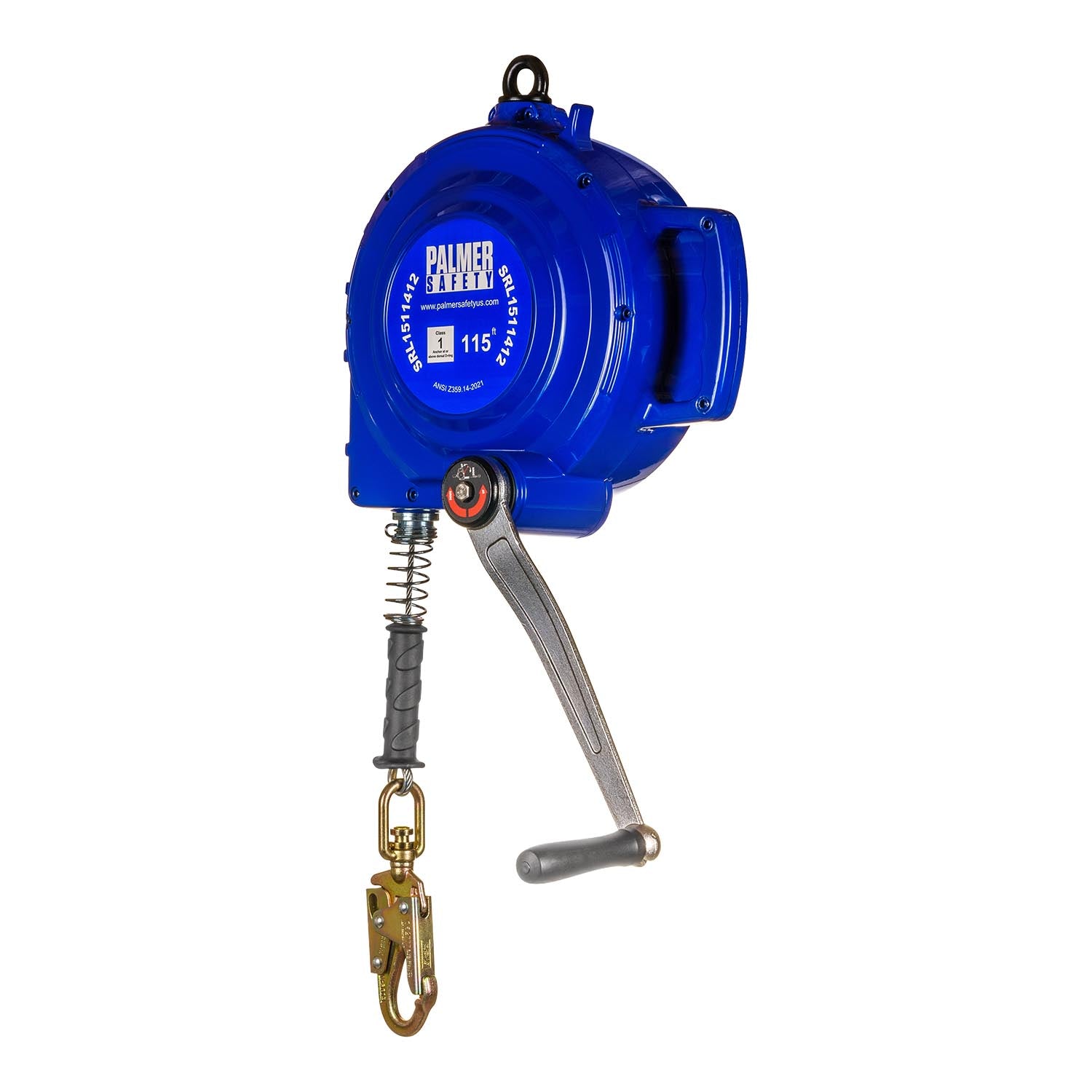

- BEAST™ Series 115’ SRL-R (SRL1511412):

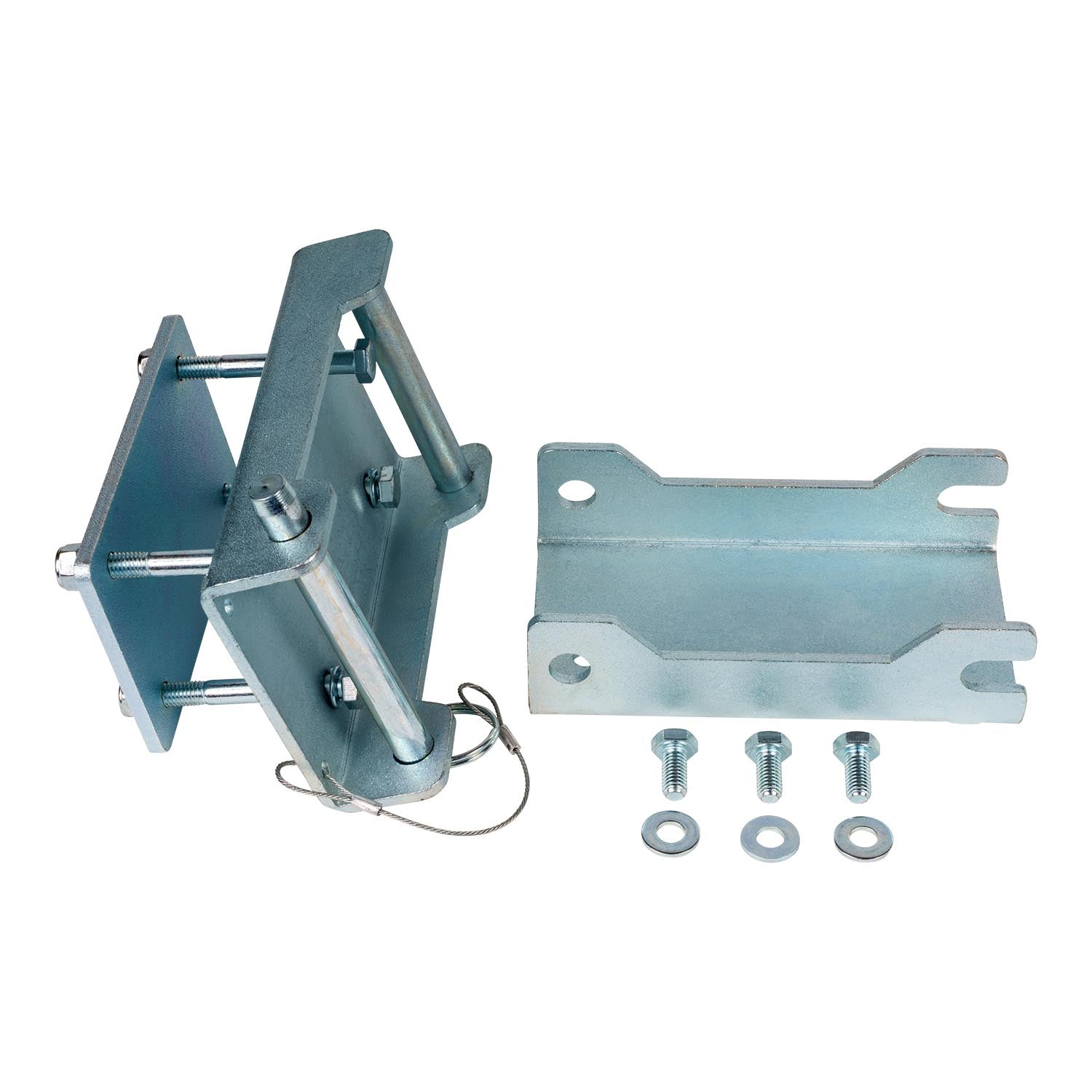

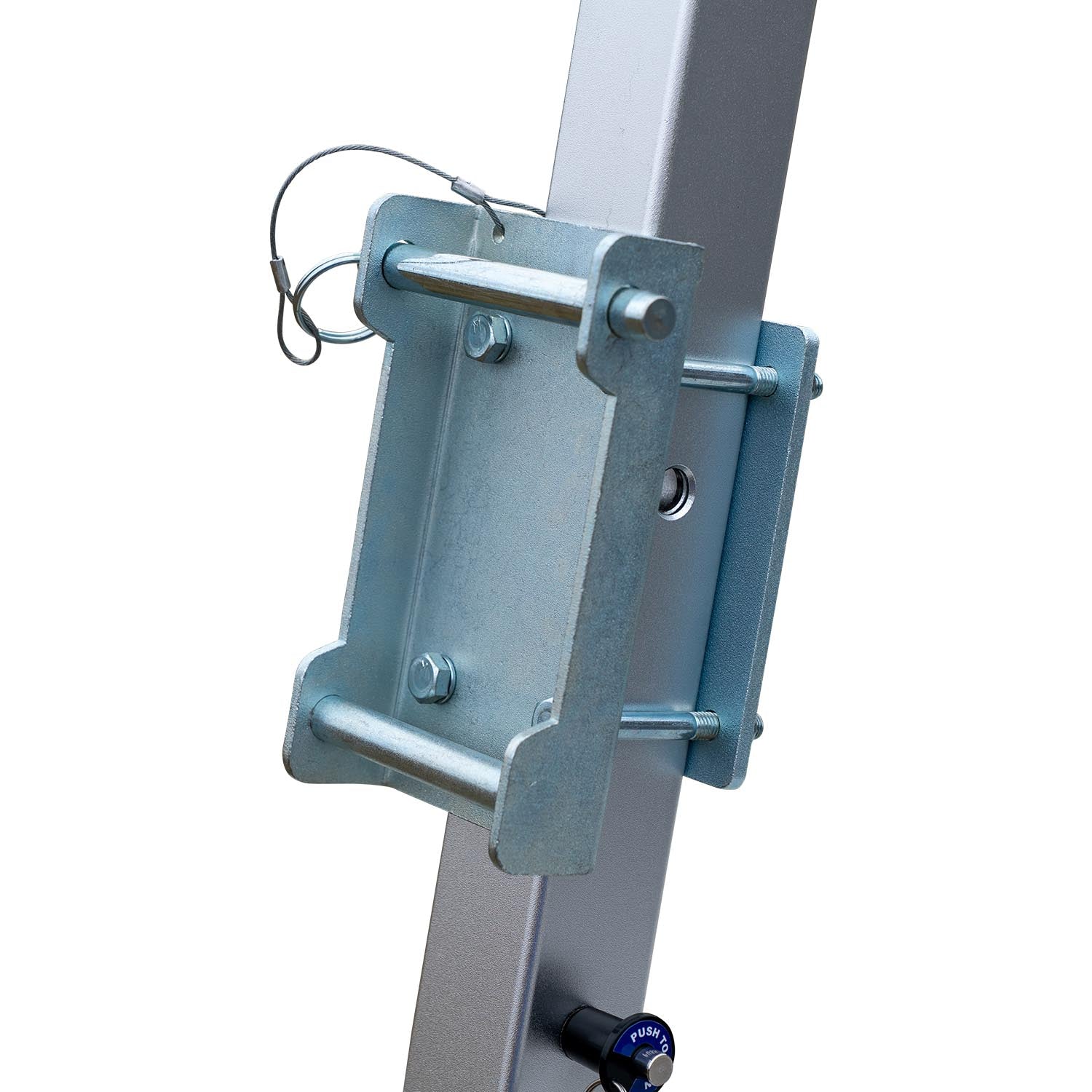

Extended 115 ft. galvanized steel wire rope with a built-in hoisting winch and locking pin for dual independent fall arrest and winch modes. - Tripod Mounting Bracket (CS2617): Heavy-duty alloy steel bracket to securely mount the SRL-R to the tripod leg.
WORKING LOAD:
310 lbs. (140kg) Personnel Capacity (SRL-R Minimum Breaking Strength: 3,000 lbs.)
TOTAL SYSTEM WEIGHT:
93.9 lbs. (Tripod: 46.3 lbs. | SRL-R: 42.8 lbs. | Bracket: 4.8 lbs.)
RELEVANT STANDARDS:
Meets or Exceeds ANSI Z359.18-2017 and ANSI Z359.14-2021 Class 1
