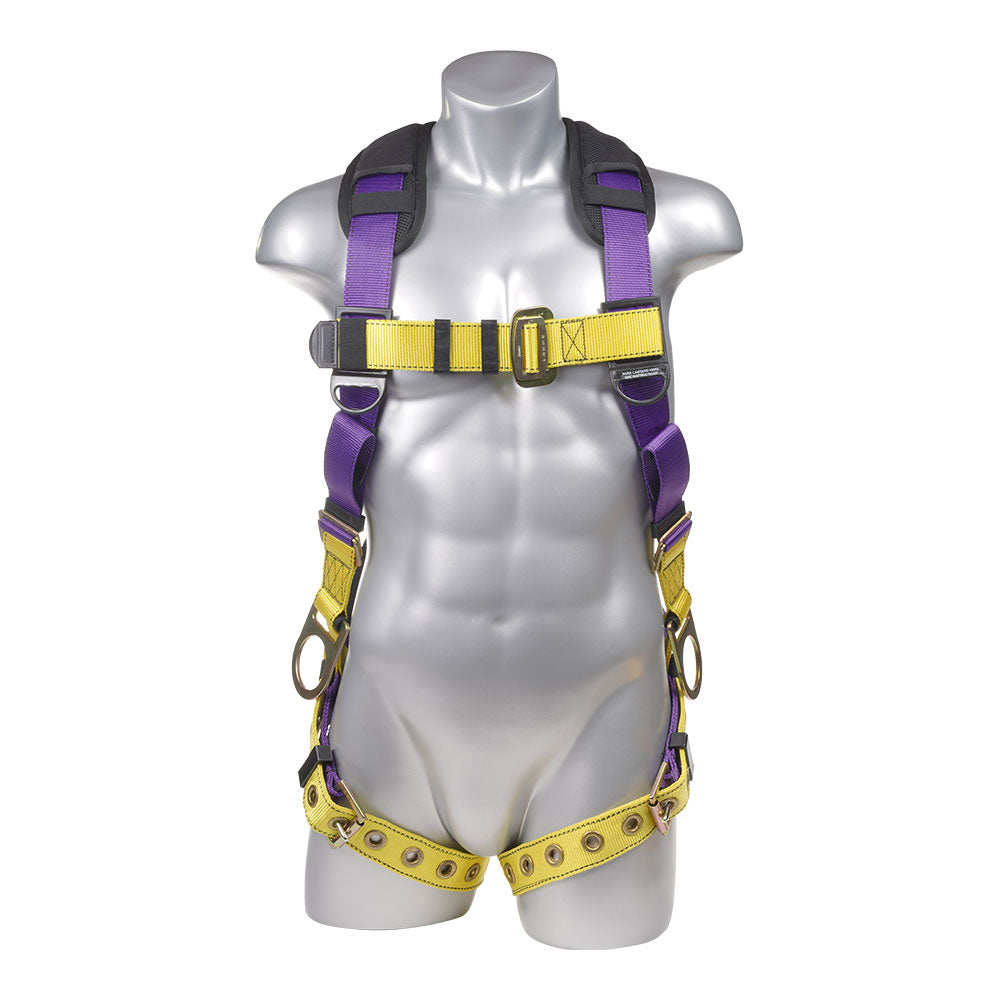

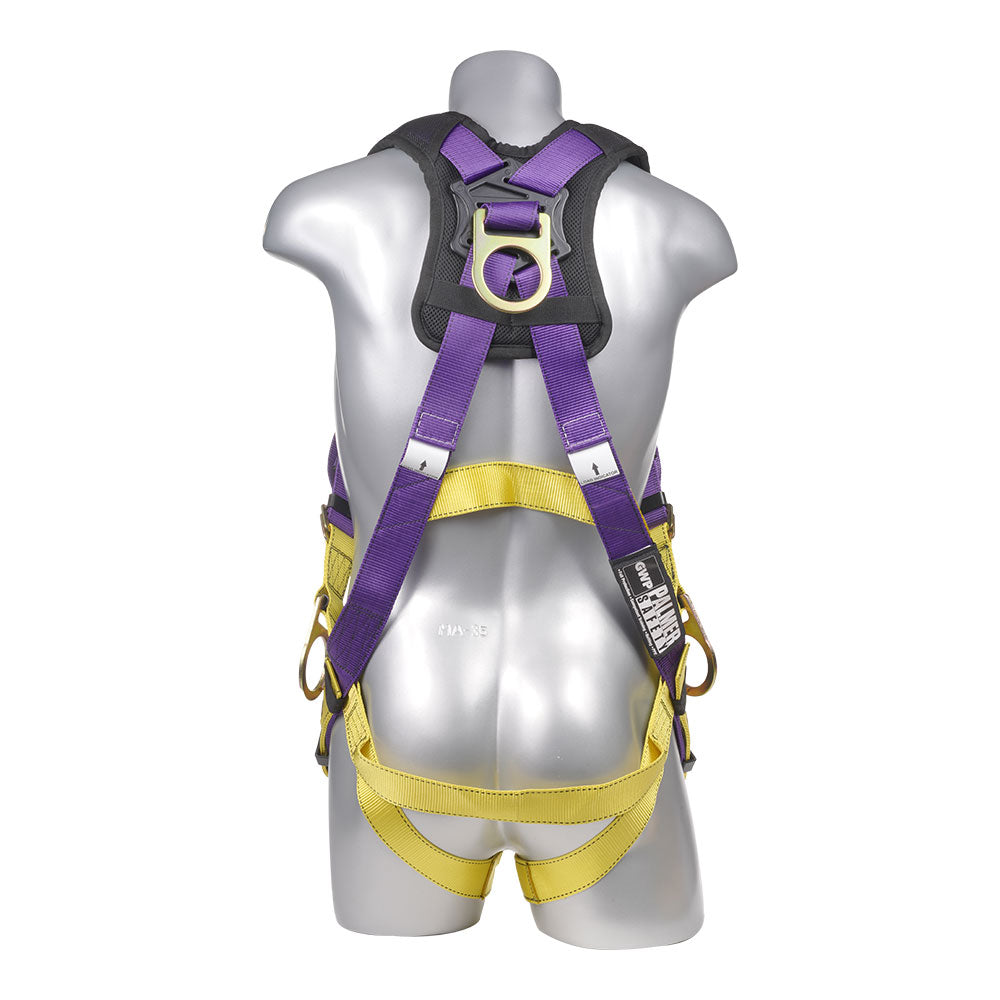

Full Body Harness

Key Features

DESIGN:

• One dorsal attachment D-ring for fall arrest.
• Adjustable Shoulder straps.
• Adjustable grometed leg straps.
• Two side D Ring for work positioning
• Shoulder pad incorporated for comfort

WEBBING:

Material: Polyester | Width: 44±1mm | Breaking strength: 5000 lbs

STITCHING THREAD:

Material: High-tenacity Polyester

METAL COMPONENT:

Material: High Strength Steel | Plating: Zinc plated | Finish: Shotblasted.

VITAL TEST COMPLIANCE:

Static Strength: 3600 lbs. for 1 minute.Dynamic Performance: The upper ring of dummy of 100 kg mass is raised to a height which allow to generate 16kN force above the anchorage point for free fall.

Weight:

1900gm. ±10 gm.
