Concrete Anchor Strap (Various Lengths)
Concrete Anchor Strap (Various Lengths)
Call for pricing: 949-954-6581

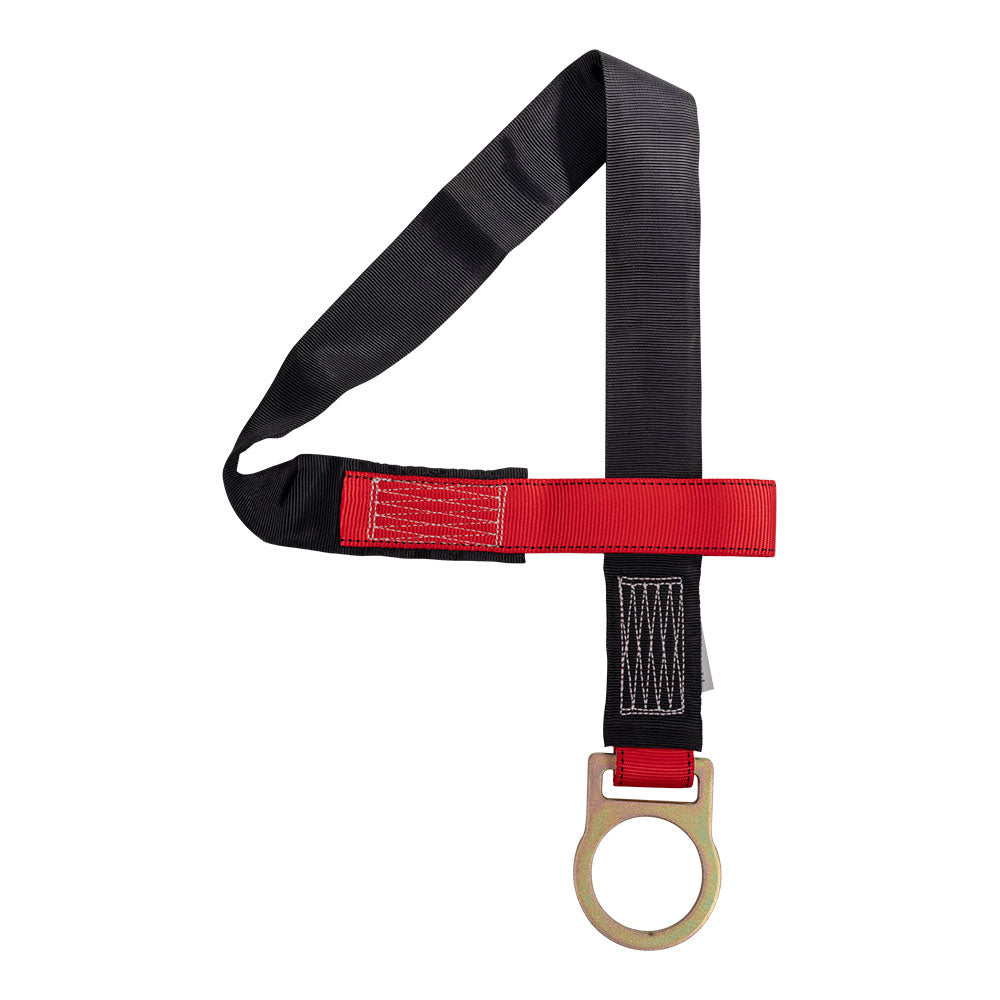

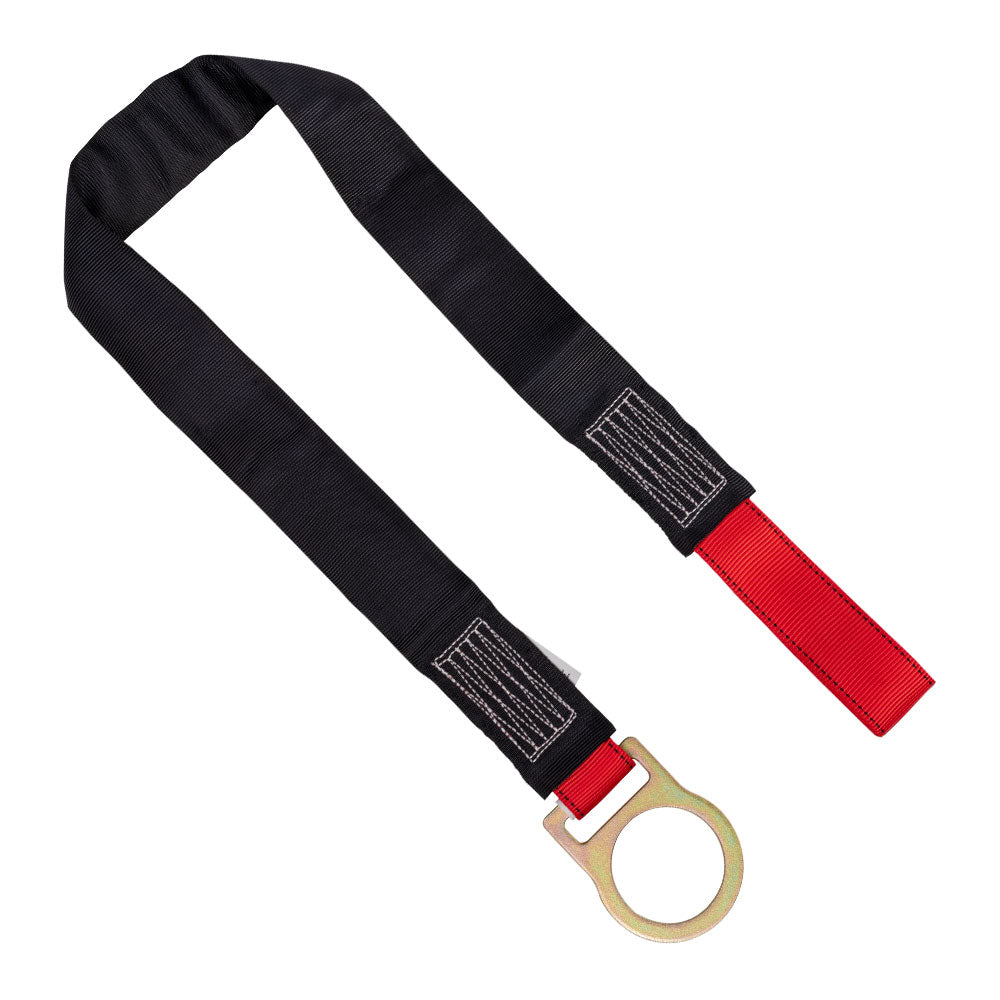

Disposable concrete anchor point, strap is attached to a structure capable of supporting 5000 lbs. 1 – 3/4” wide with various length options and large D-Ring or dual loops, full length wear pad. Red strap. Meets or Exceeds ANSI Z359.18-2017 and OSHA.
Key Features
DESIGN:

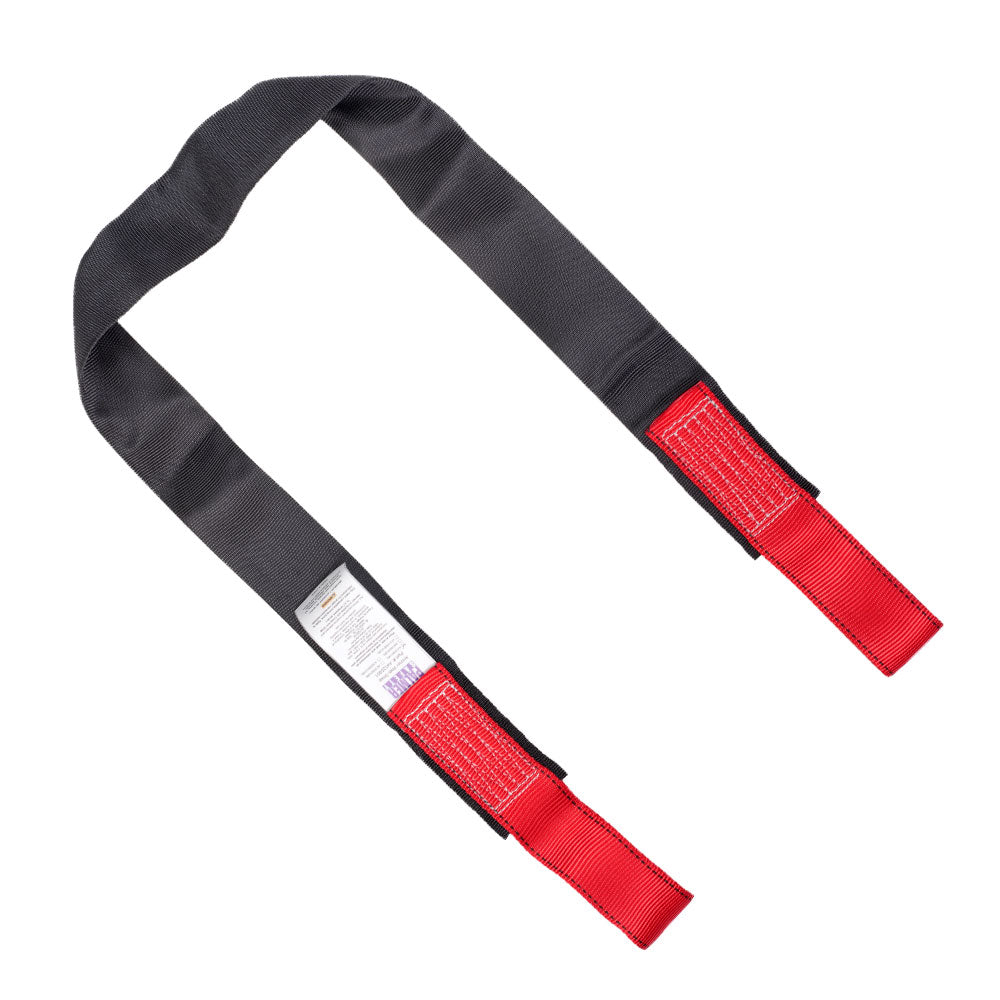

1.73” wide polyester webbing with one end having a textile loop and the other side a D-ring or another textile loop depending on model.
WEBBING:
Material: Polyester
Width: 1.73” ± .04”
Breaking Strength: 25 kN (Min)
STITCHING THREAD:
Material: High-tenacity polyester
Color: White
D-RING:
Material: Steel
Plating: Electro deposited Zinc
Finish: Deburred & polished
USER WEIGHT CAPACITY:
ANSI: 130 – 310 lbs.; OSHA: 420 lbs.
LENGTH:
| Part # | Length |
|---|---|
| A4125000 | 4’ |
| A6125000 | 6’ |
| A8125000 | 8’ |
| A10125000 | 10’ |
| A4125001 | 4’ w/Loop |
| A6125001 | 6’ w/Loop |
| A8125001 | 8’ w/Loop |
| A10125001 | 10’ w/Loop |
| A12125001 | 12’ w/Loop |
CONFORM TO NORM:
Meets or Exceeds ANSI Z359.18-2017; OSHA 1926.502, 1910.140, 1910.66
Downloads
Download Declaration of Conformance A4125000
