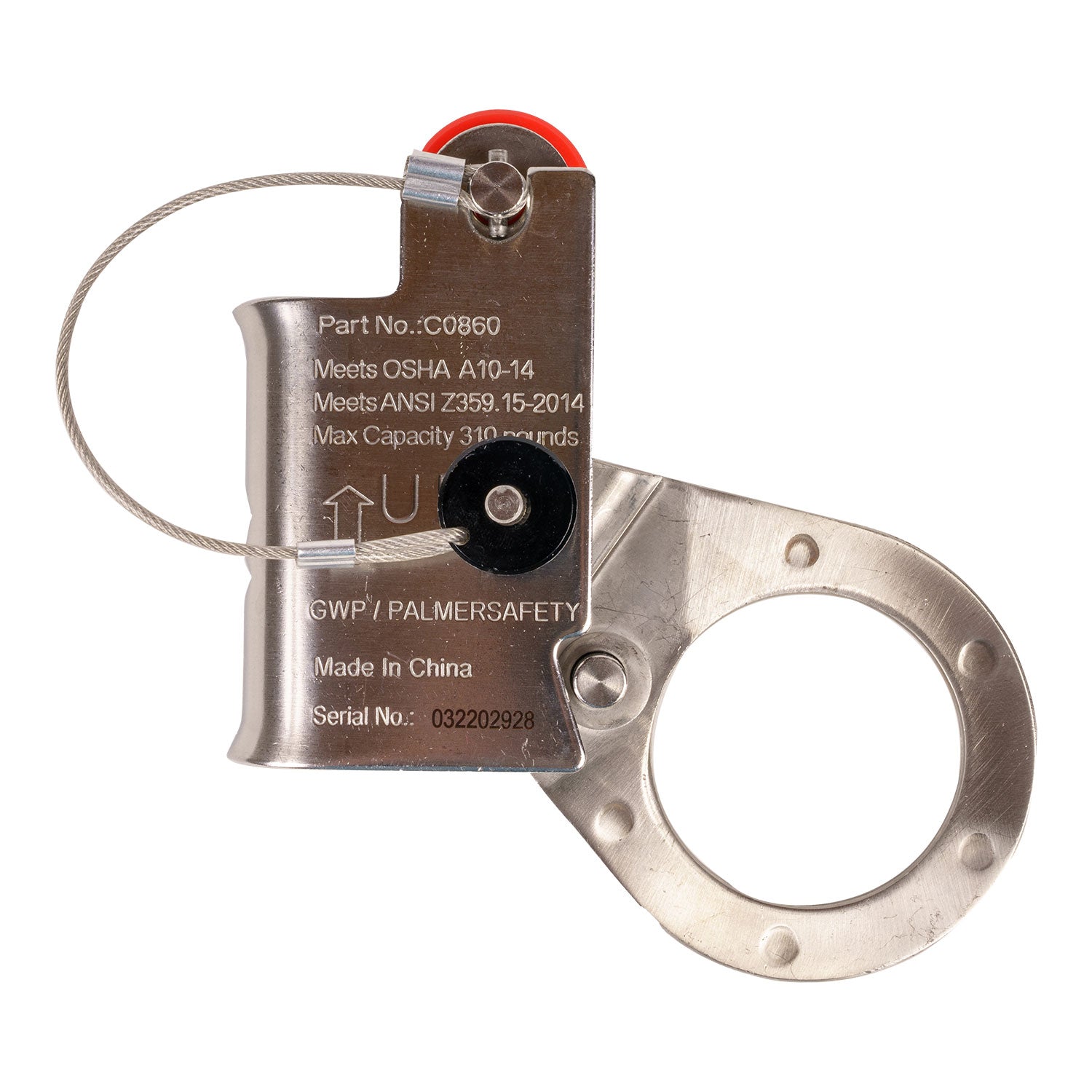

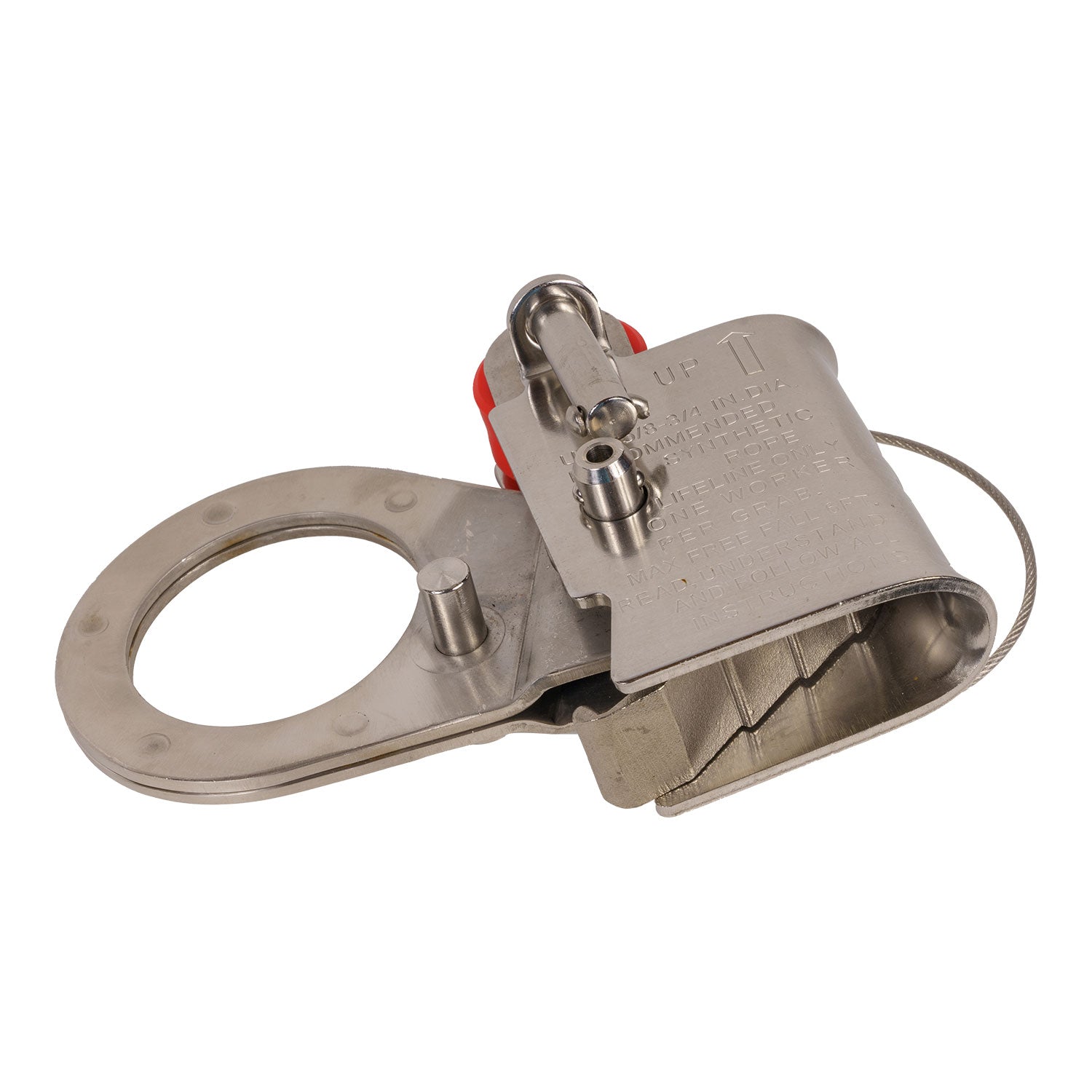

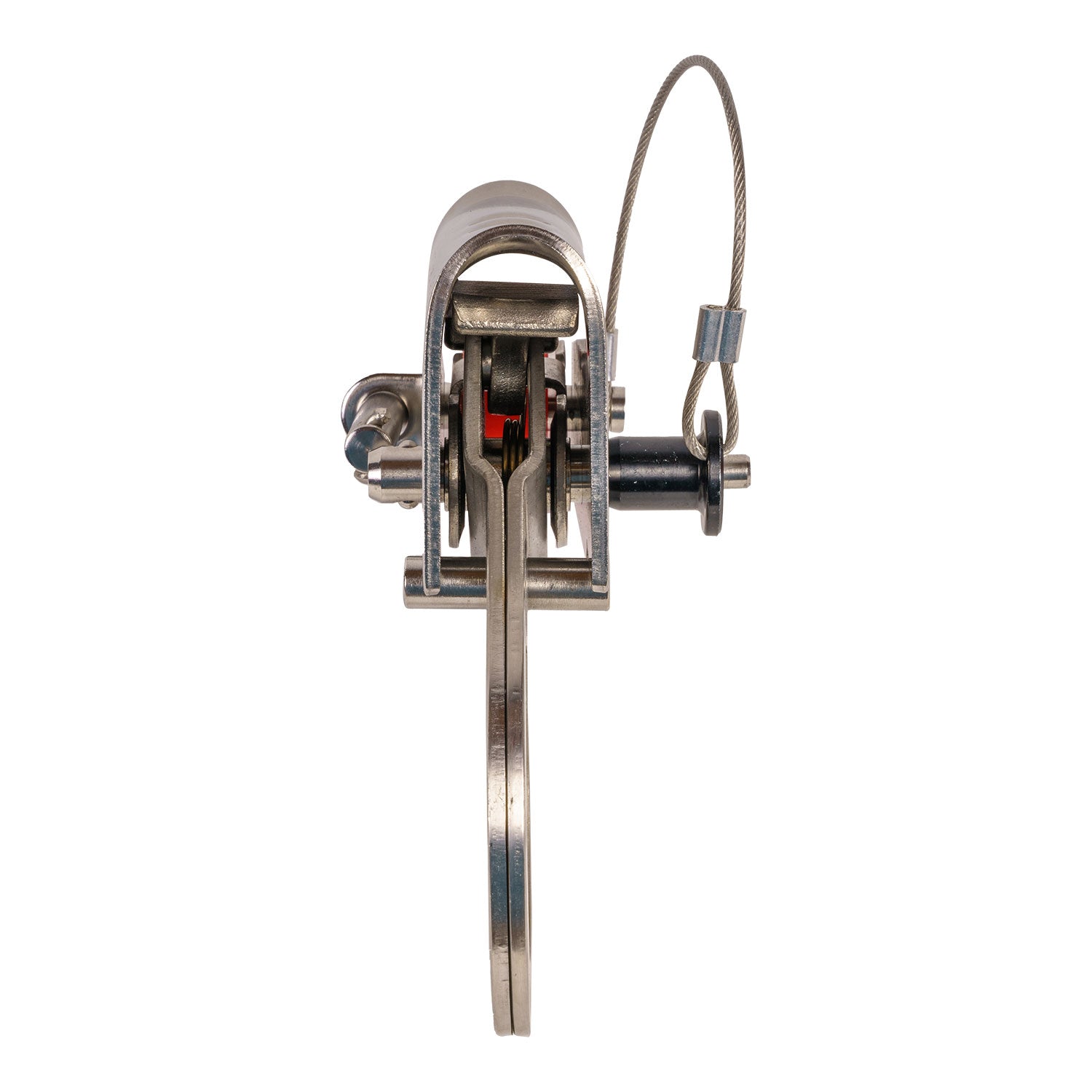

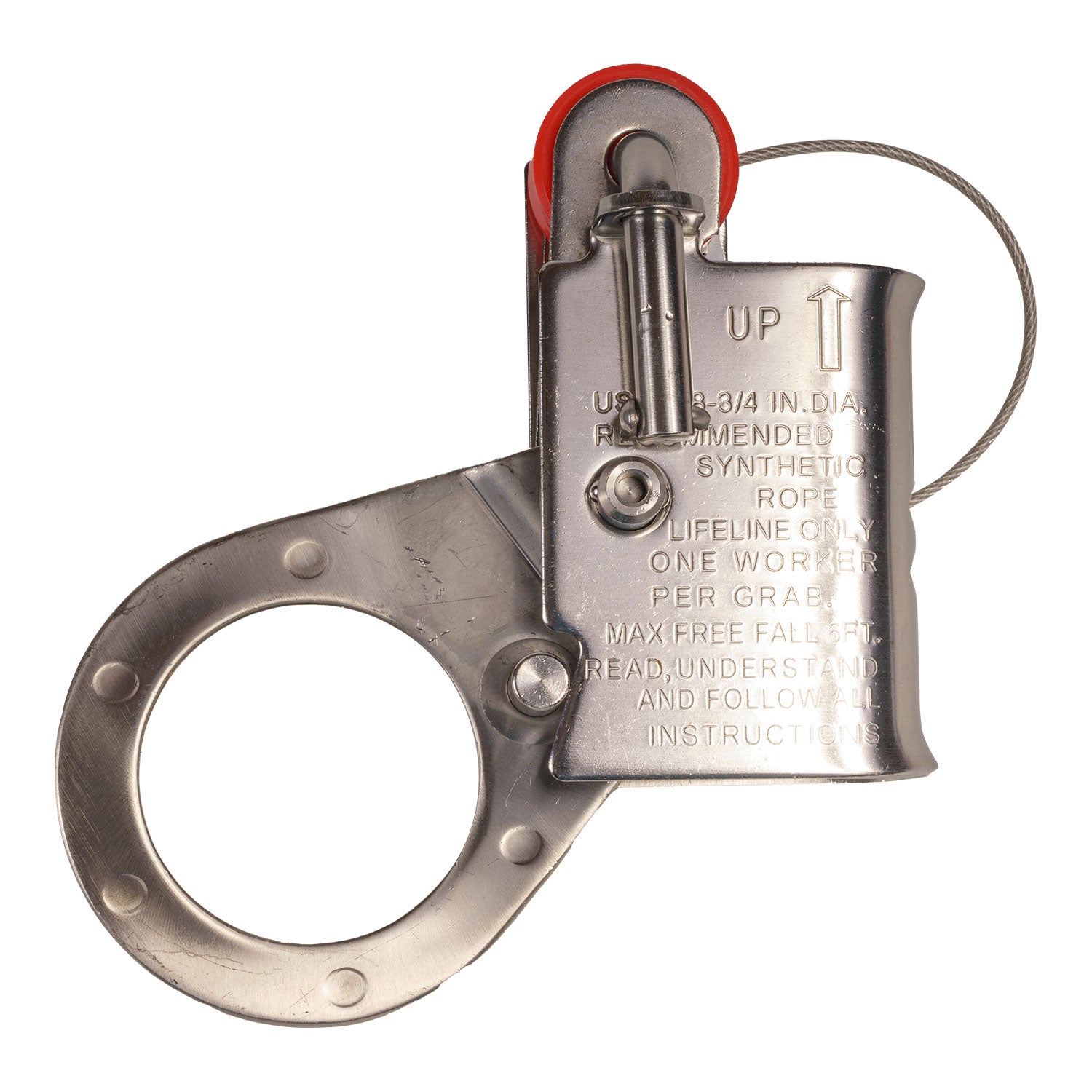

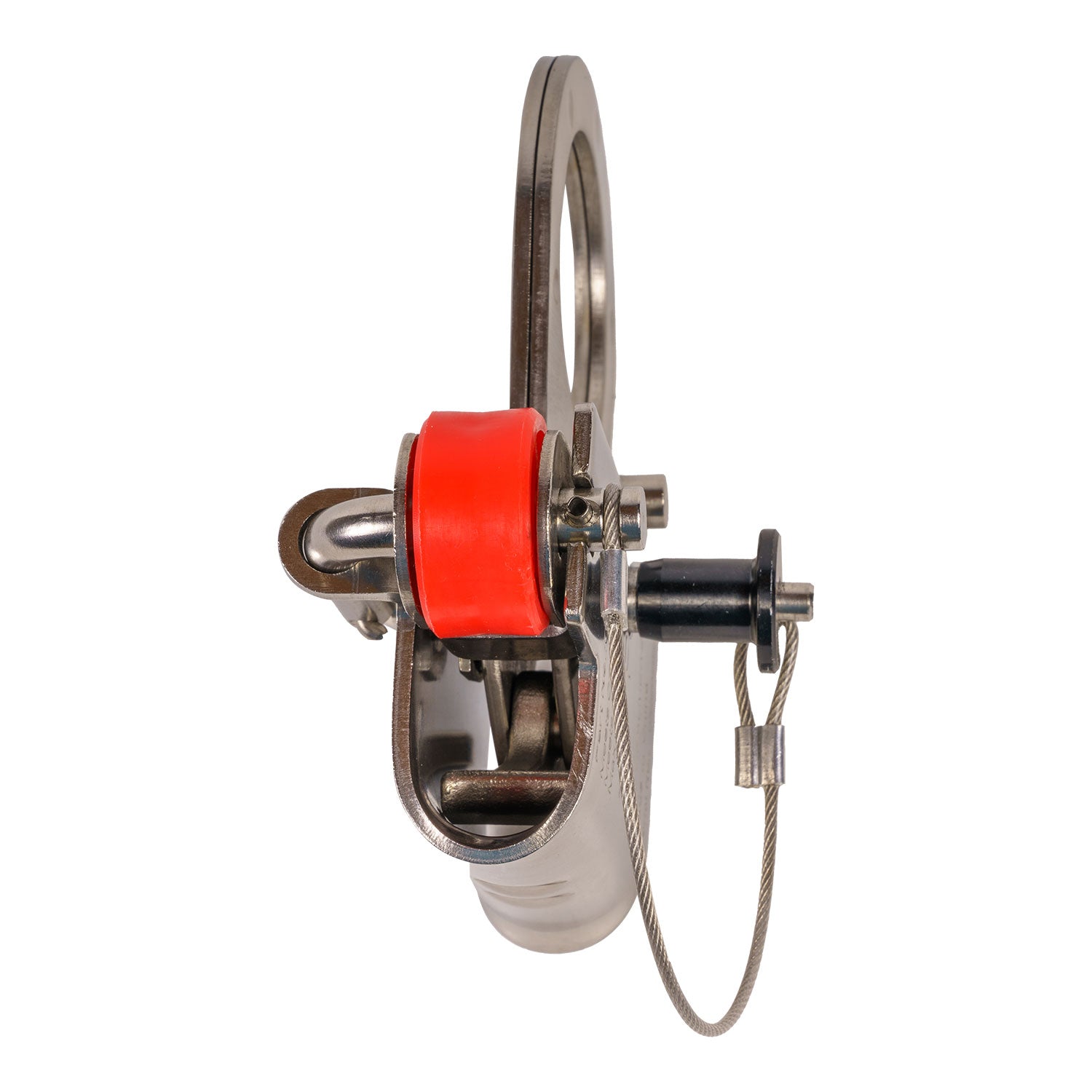

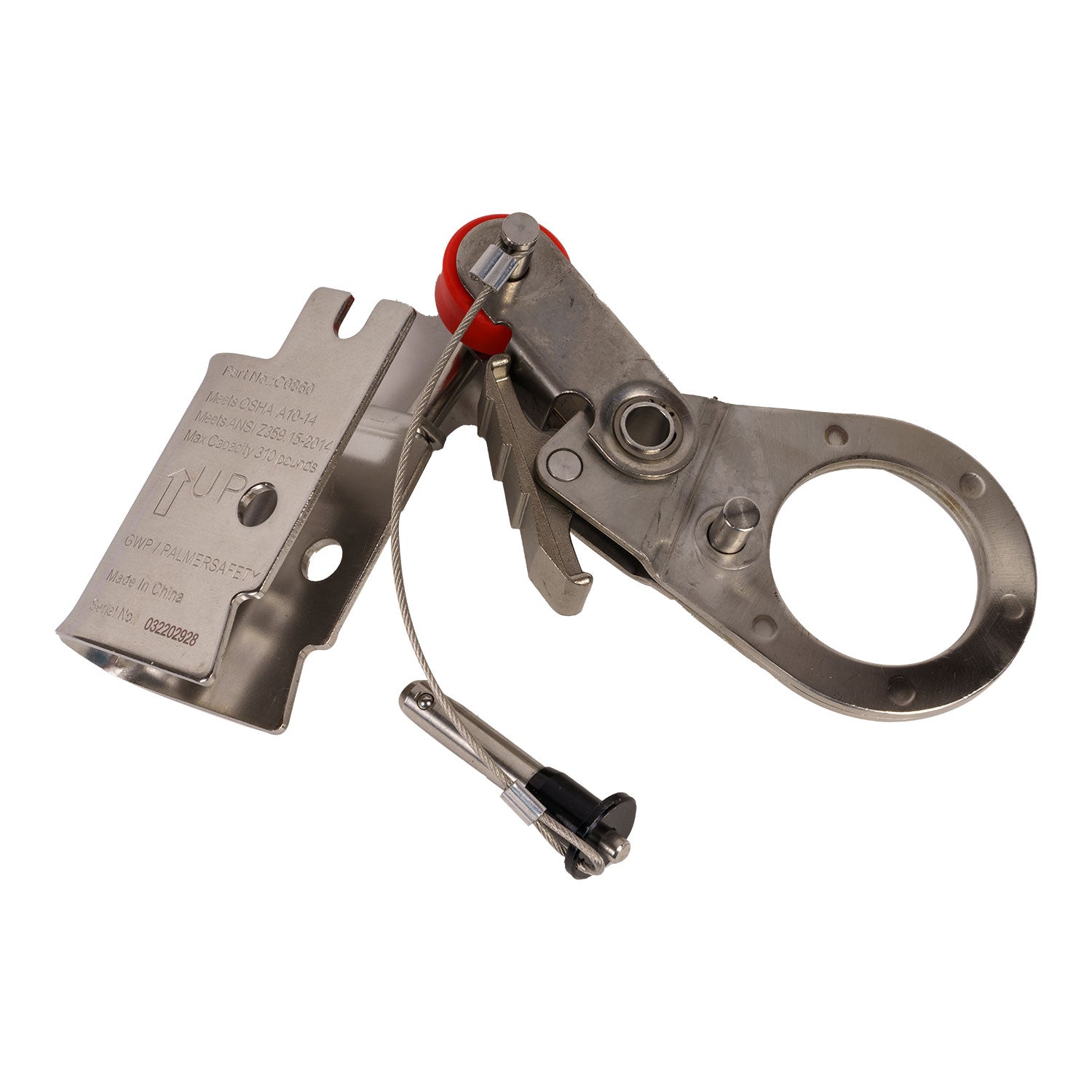

5/8” and 3/4” Rope Grab with roller guide. Min breaking strength 5,000 lbs. Meets ANSI Z359.15-2014.
Rope Grab for 5/8” and 3/4” Diameter Rope.
Rope Grab for 5/8” and 3/4” Diameter Rope.
Call for pricing: 949-954-6581
Key Features
CONNECTIONS:
Maximum 1 connection per rope grab
DESIGN:
- For use with 5/8” or 3/4” diameter 3-strand synthetic rope lifeline with minimum tensile strength of 5,800 pounds. Polyester rope is recommended.
- 5/8” or 3/4” diameter Kernmantle ropes can be used if deemed compatible by a Qualified Person
- Moves along with the user climbing up or down and hooks them in case of a fall.
- Max Free Fall is 6 ft.
MATERIAL:
Stainless Steel
MINIMUM BREAKING STRENGTH:
5,000 lbs.
WORKER WEIGHT RANGE:
130 – 310 lbs. including all tools and equipment
CONFORM TO NORM:
Meets or Exceeds ANSI Z359.15-2014 / OSHA A10-14
